Drill America

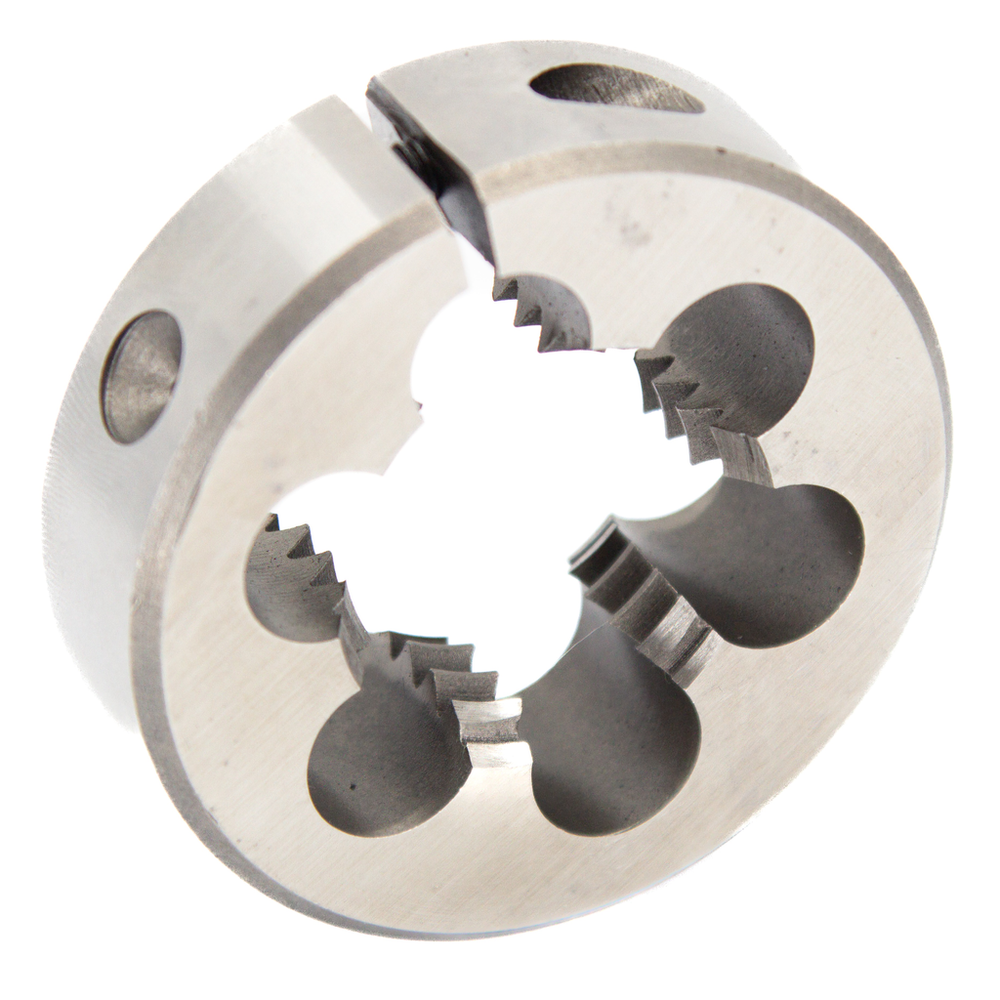

1/2"-20 UNF X 2" OD HSS Round Adjustable Die - DWTH2-1220

Name: 1/2"-20 UNF X 2" OD HSS Round Adjustable Die - DWTH2-1220
Brand: Drill America
SKU: DWTH2-1220
Price: 25.98 USD
Availability: InStock

SKU: DWTH2-1220

MPN: DWTH2-1220

Stock Item: Stock items typically ship within 2-3 business days

UPC: 887861101905

$25.98 each

Hurry up! Current stock:

Quantity:

Product Description

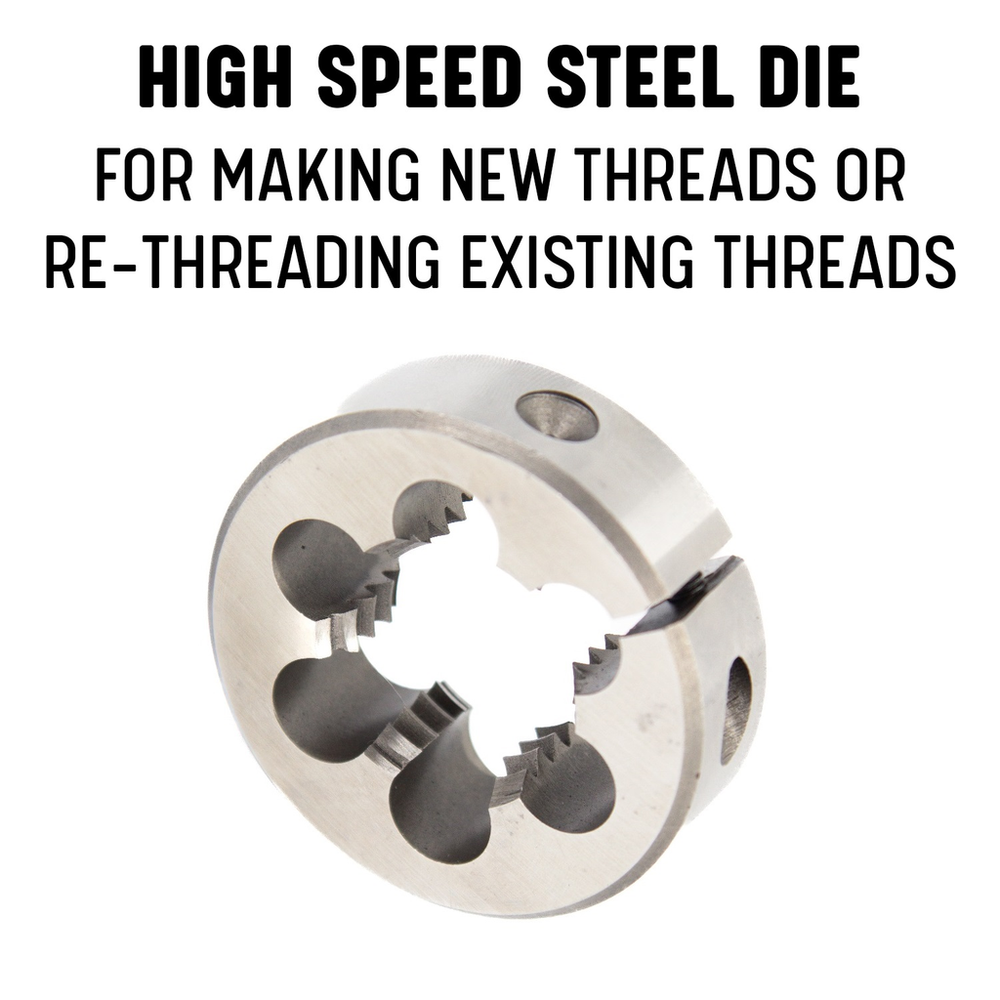

HSS Round Dies are for use in making new threads or re-threading existing threads. They are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance. Round dies are chamfered on both faces, one side has a 2 to 3 thread chamfer for threading and the other side has a 1 to 1-1/2 thread chamfer for threading close to a shoulder. Adjustments are made by a fine pitch screw which forces the sides of the die apart, or allows them to spring together. The slot is beveled so that when the dies are used in a machine holder the adjusting screw can be removed and adjustment made by the adjusting screws in the holder.

Features

The slot is beveled so that when the dies are used in a machine holder the adjusting screw can be removed and adjustment made by the adjusting screws in the holder
For use in making new threads or re-threading existing threads
One side has a 2 to 3 thread chamfer for threading, the other side has a 1 to 1-1/2 thread chamfer for threading close to a shoulder
Good for most general purpose applications, offering a combination of hardness and toughness for wear resistance
Round die is chamfered on both faces
Adjustment is obtained by a fine pitch screw which forces the sides of the die apart, or allows them to spring together

Prop 65

WARNING: This product contains Cobalt and/or Nickel and/or Lead a chemical known to the state of California to cause cancer, or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Specifications

Material	High Speed Steel
Finish	Uncoated (Bright)
Size	1/2"-20
Country of Origin	China
Thread Type	UNF
Corresponding Die Stock	2"
Outer Diameter	2"
Thread Size	1/2"
