1/4"-28 UNF X 1" OD HSS Round Adjustable Die - DWTH1-1428

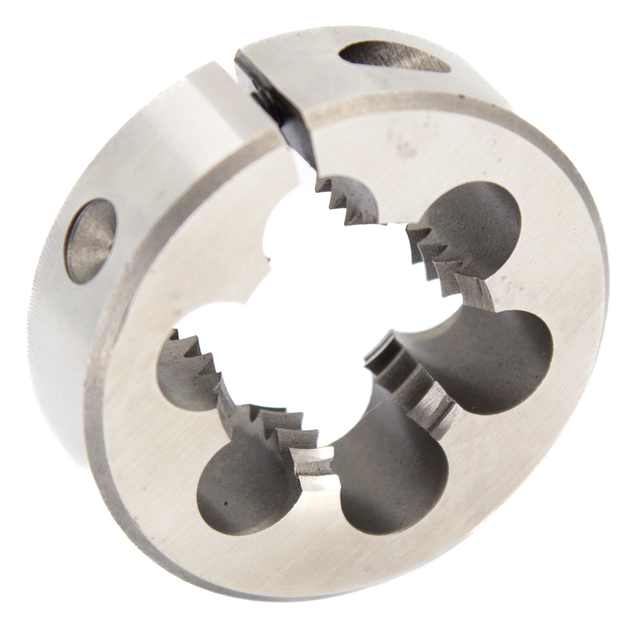

Name: 1/4"-28 UNF X 1" OD HSS Round Adjustable Die - DWTH1-1428
Brand: Drill America
SKU: DWTH1-1428
Price: 8.9 USD
Availability: InStock

SKU: DWTH1-1428

MPN: DWTH1-1428

Stock Item: Stock items typically ship within 2-3 business days

UPC: 887861101547

$8.90 each

Hurry up! Current stock:

Quantity:

Product Description

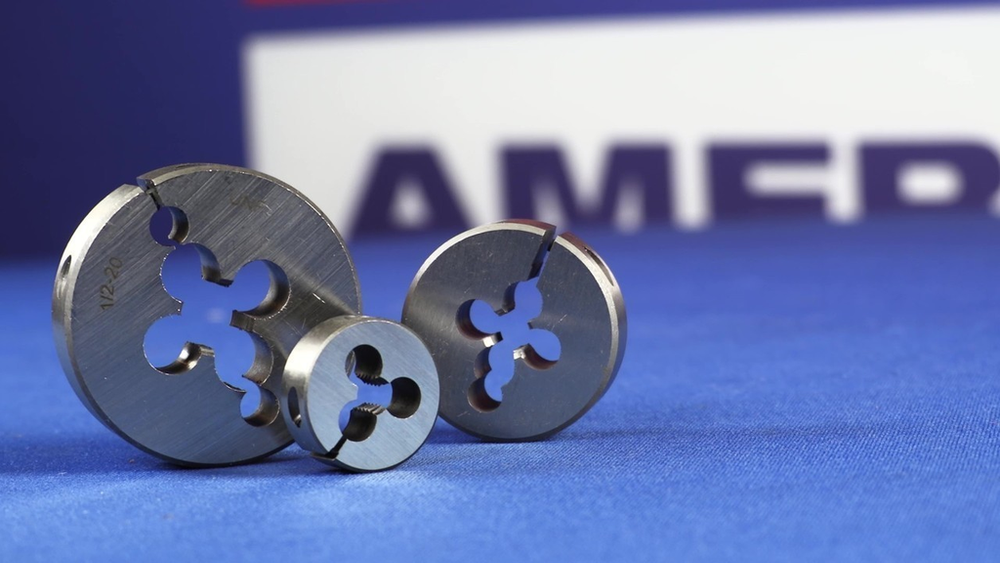

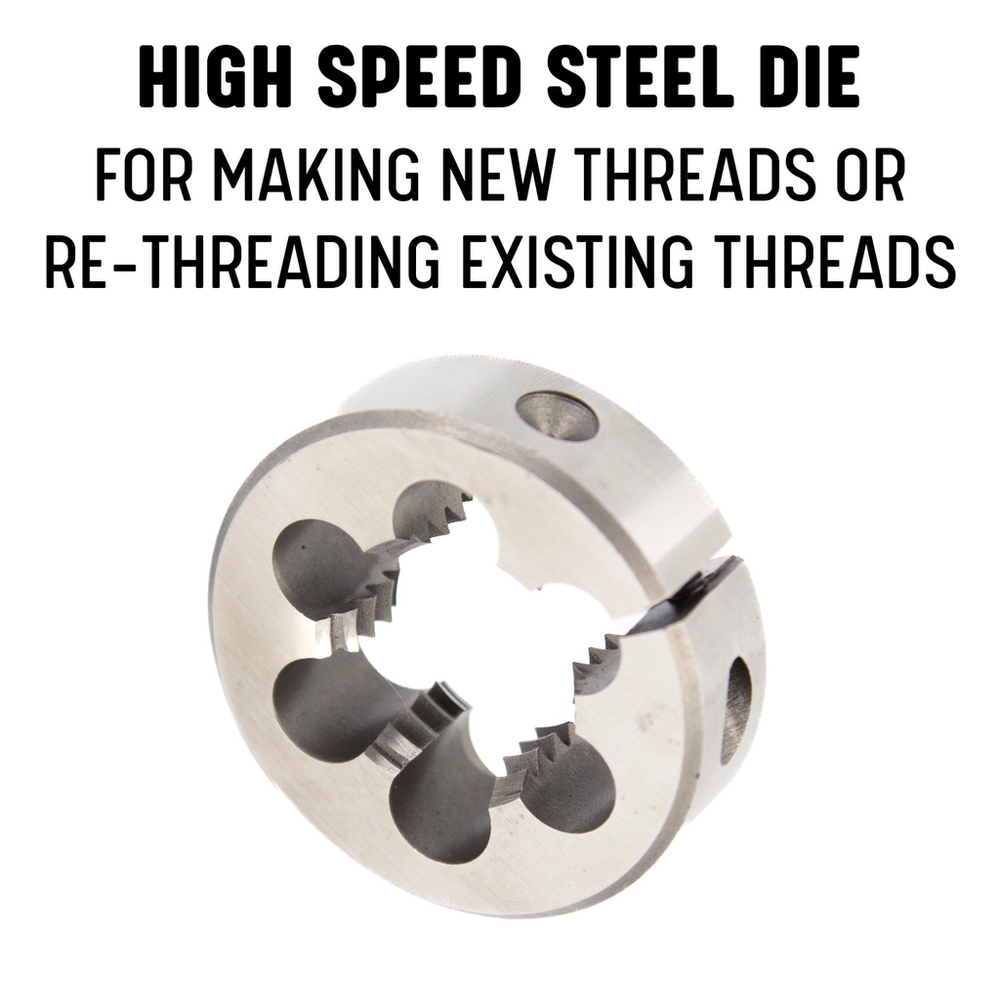

HSS Round Dies are for use in making new threads or re-threading existing threads. They are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance. Round dies are chamfered on both faces, one side has a 2 to 3 thread chamfer for threading and the other side has a 1 to 1-1/2 thread chamfer for threading close to a shoulder. Adjustments are made by a fine pitch screw which forces the sides of the die apart, or allows them to spring together. The slot is beveled so that when the dies are used in a machine holder the adjusting screw can be removed and adjustment made by the adjusting screws in the holder.

Features

Adjustment is obtained by a fine pitch screw which forces the sides of the die apart, or allows them to spring together
Good for most general purpose applications, offering a combination of hardness and toughness for wear resistance
Round die is chamfered on both faces
One side has a 2 to 3 thread chamfer for threading, the other side has a 1 to 1-1/2 thread chamfer for threading close to a shoulder

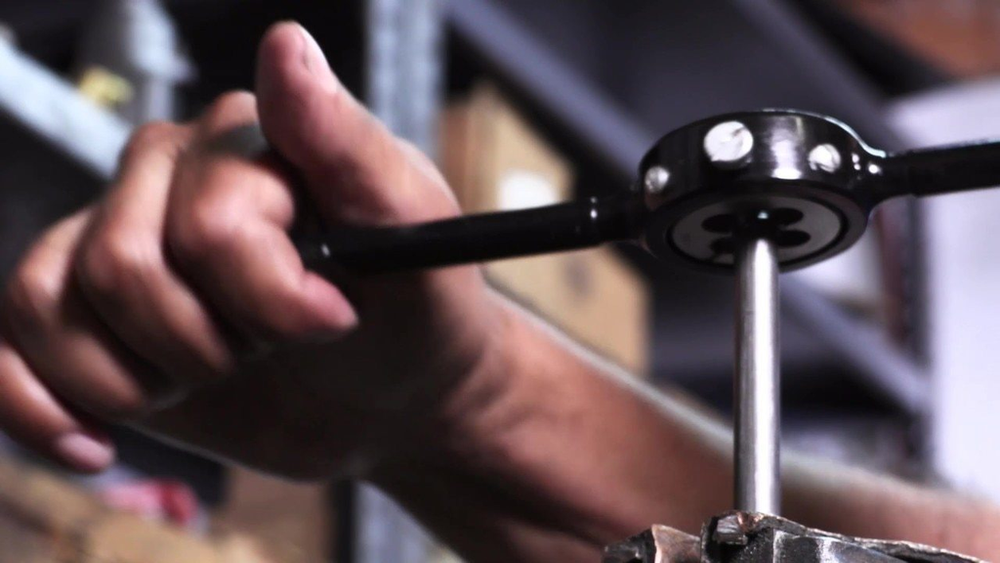

The slot is beveled so that when the dies are used in a machine holder the adjusting screw can be removed and adjustment made by the adjusting screws in the holder

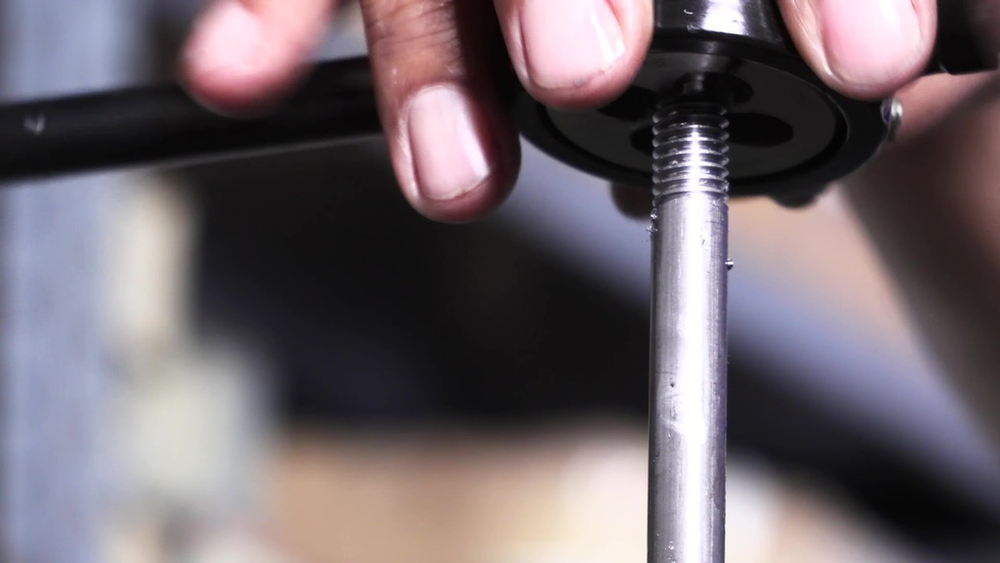

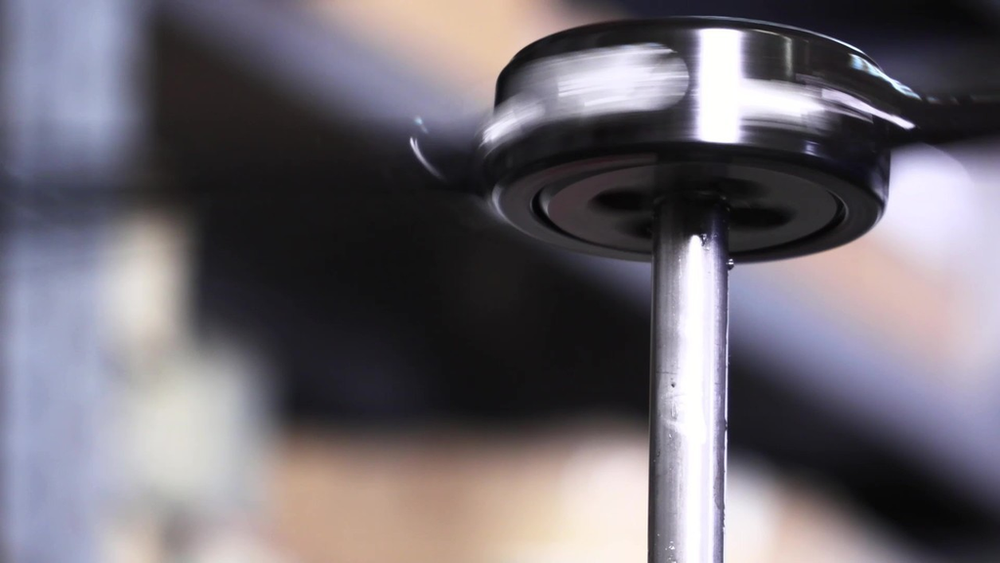

For use in making new threads or re-threading existing threads

Prop 65

WARNING: This product contains Cobalt and/or Nickel and/or Lead a chemical known to the state of California to cause cancer, or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Specifications

Material	High Speed Steel
Finish	Uncoated (Bright)
Thread Size	1/4"
Corresponding Die Stock	1"
Outer Diameter	1"
Country of Origin	China
Size	1/4"-28
Thread Type	UNF
