Drill America

3" NPT Carbon Steel Pipe Tap - DWTPT3INCH

Name: 3" NPT Carbon Steel Pipe Tap - DWTPT3INCH
Brand: Drill America
SKU: DWTPT3INCH
Price: 300.21 USD
Availability: InStock

SKU: DWTPT3INCH

MPN: DWTPT3INCH

Stock Item: Stock items typically ship within 2-3 business days

UPC: 887861076364

$300.21 each

Hurry up! Current stock:

Quantity:

Product Description

At a Glance

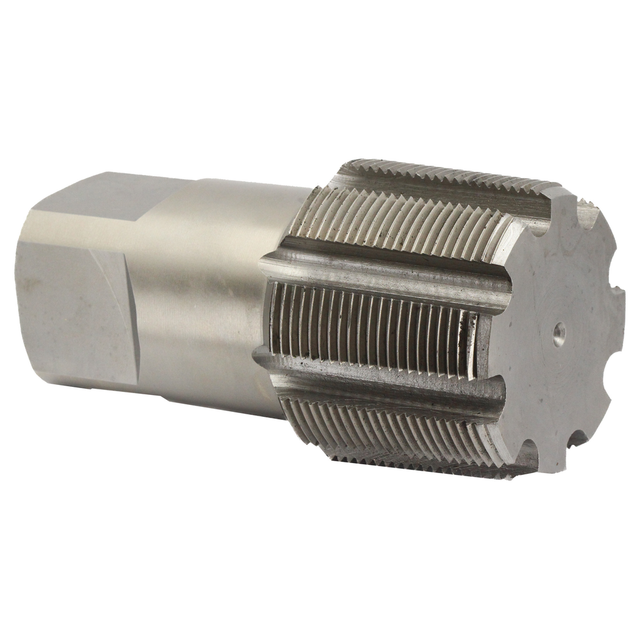

This Drill America 3 in. NPT pipe tap (DWTPT3INCH) is a carbon steel taper pipe tap for cutting new or cleaning up existing 3 in. NPT threads. The "3 in." is the nominal pipe size, not the actual diameter of the tap.

Best for

Re-threading or cleaning damaged 3 in. pipe threads in fittings and valves
Tapping 3 in. NPT ports in mild steel, cast iron and softer metals
Maintenance and plumbing shops that need a large pipe tap on hand

Specifications

Thread	3 in. NPT (8 threads per inch)
Taper	3/4 in. per foot
Chamfer	2-1/2 to 3-1/2 threads
Material	Carbon steel
Typical tap drill	3-1/4 in.
Part number	DWTPT3INCH

FAQ

Do NPT threads need sealant? Yes. NPT threads seal as the taper wedges together, but they still need pipe thread sealant or PTFE tape for a leak-free joint.

Carbon steel or HSS? Carbon steel taps are an economical choice for occasional use and thread repair. For frequent production tapping or harder metals, choose a high speed steel (HSS) tap.

Shop all NPT pipe taps.

Also called pipe taps, carbon steel NPT pipe taps are designed to clean and or re-thread damaged or jammed pipe threads. They are appropriate for threading a wide variety of materials both ferrous and nonferrous. The nominal size of a Pipe Tap is that of the pipe fitting to be tapped, not the actual size of the tap. The thread tapers 3/4 of an inch per foot. All Pipe Taps furnished with a 2-1/2 to 3-1/2 thread chamfer NPT threads require the use of a sealer like teflon tape or pipe compound.

Prop 65

WARNING: This product contains Cobalt and/or Nickel and/or Lead a chemical known to the state of California to cause cancer, or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Features

Also called pipe taps
Carbon steel NPT pipe taps are designed to clean and or re-thread damaged or jammed pipe threads
They are appropriate for threading a wide variety of materials both ferrous and nonferrous
The nominal size of a Pipe Tap is that of the pipe fitting to be tapped, not the actual size of the tap The thread tapers 3/4 of an inch per foot. All Pipe Taps furnished with a 2-1/2 to 3-1/2 thread chamfer
NPT threads require the use of a sealer like teflon tape or pipe compound

Specifications

Material	Carbon Steel
Finish	Uncoated (Bright)
Thread Length	2-5/8"
Thread Standard	NPT
Tap Drill Size	3-1/4"
Overall Length	6"
Country of Origin	China
Size	3"-8
Type	NPT
Number of Flutes	8

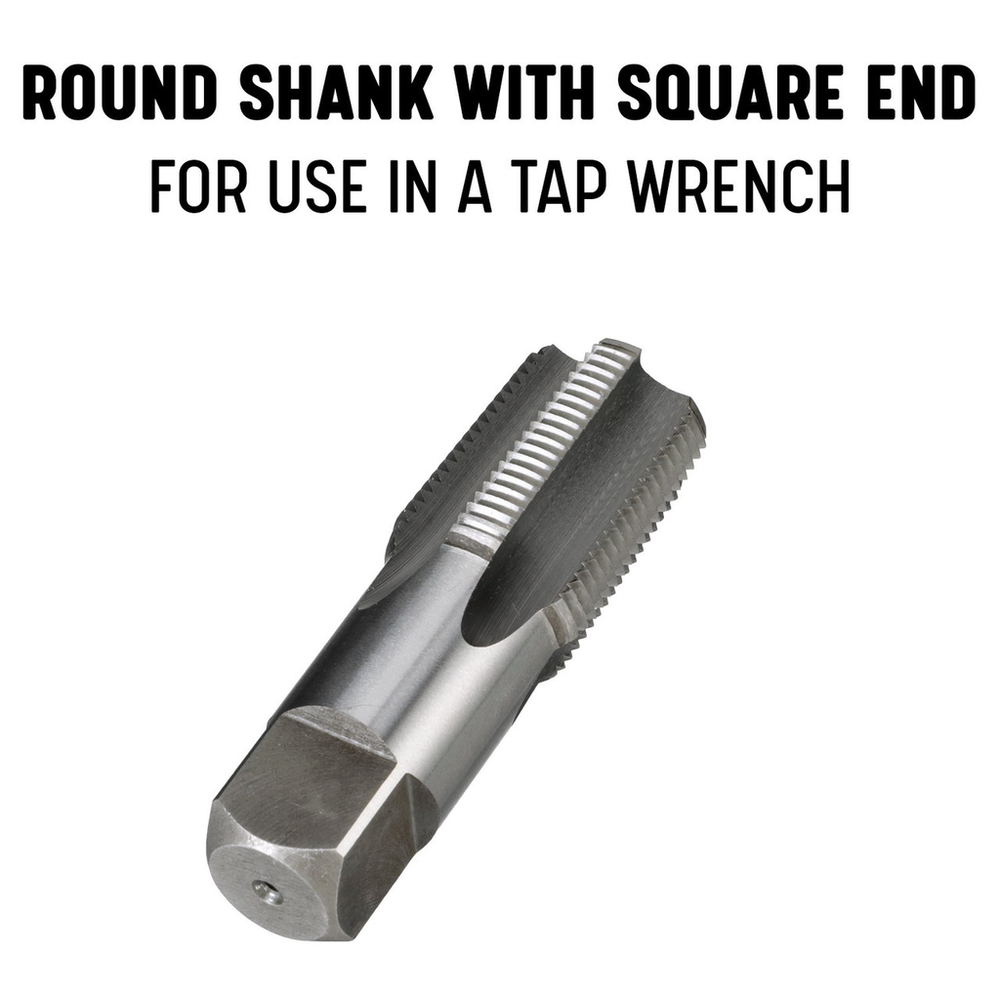

Shank Type	Square
