3M Products & Supplies

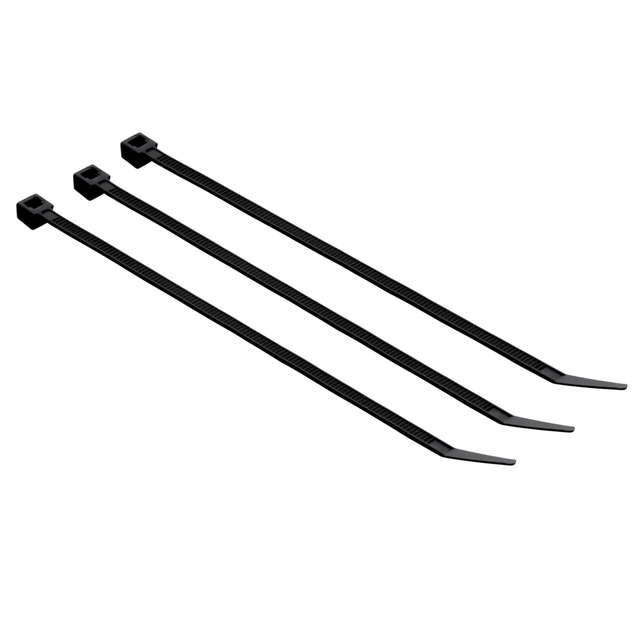

3M™ Cable Tie CT8NT50-M, 10000/Case - 7000133460

Sold As: 10000-Pack
SKU: 7000133460
MPN: 7000133460
For an accurate lead time please contact us
UPC: 00051128592991
3M ID: 80611469588
5 Digit UPC: 59299
$576.97 ($0.06 / Count)
Hurry up! Current stock:

Product Description

3M™ Standard Nylon Cable Ties are made with high-quality nylon 6/6 and designed to secure wire bundles and harness components quickly, without slipping. The curved tip allows for faster threading and installation, and they feature a self-locking head.

Features

  • UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces
  • Secure wire bundles and harness components quickly, without slipping
  • Curved tip allows for faster threading and installation
Spec Sheet



Downloads

Specifications

Country of OriginHonduras
Overall Width (Metric)4.6
Minimum Operating Temperature (Fahrenheit)-40.0
VG ApprovalNo
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Units per bag50
Cable Tie Base Height8 in
Halogen FreeYes
Cable Length (Imperial)8.0
Maximum Operating Temperature85 Degree Celsius
Overall Length (Imperial)7.6
Maximum Recommended Voltage Rating600.0
Maximum Insulation Outside Diameter0.145 in
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Recommended Voltage Rating UOMV
Overall Width (Imperial) UOMin
Minimum Bundle Diameter0.0625 Inch
Solution forLonghaul/Metro Loop Network: Outdoor
Units per Case10000.0
Operating Temperature (Fahrenheit)185 Degree Fahrenheit
Product TypeCable Ties
MIL ApprovalNo
Mil SpecMS3367-1-9
Operating Temperature Range (Celsius)-40 °C to 85 °C
Minimum Operating Temperature (Celsius)-40.0
Overall Length (Metric)193.0
Cable Diameter Range8,1 - 39,4 mm
Package Quantity1000.0
Maximum Insulation Outer Diameter (Metric) UOMmm
Operating Temperature Range (Fahrenheit)-40 °F to 185 °F
Cable Management ProductsCable Ties
UL ApprovalYes
Overall Width (Imperial)0.18
Maximum Bundle Diameter (Metric)102.0
Tape TypeBarricade
Maximum Operating Temperature (Fahrenheit)185.0
Tensile Strength (Metric)22.68
Maximum Operating Temperature (Celsius)85.0
Cable Length (Metric)193.04
Cable Tie TypeStandard
ApplicationSecure wire bundling
Minimum Bundle Diameter (Metric)1.6 mm
Plenum RatedYes
Minimum Operating Temperature (Celsius) UOMDegree
Cable Length (Metric) UOMmm
Package Quantity UOMPCS
Cable Tie Length UOMmm
Maximum Bundle Diameter1.87 Inch
Cable Length (Imperial) UOMin
Solvable FastenerNo
TypeStandard
Maximum Bundle Diameter (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial) UOMin
UV ResistantNo
Operating Temperature (Celsius)85 Degree Celsius
MaterialNylon 6/6
Cable Tie Length371.0
Overall Length (Metric) UOMmm
Overall Width (Metric) UOMmm
Maximum Insulation Outer Diameter (Metric)3.7
Tensile Strength (Metric) UOMkg
Flammability RatingUL 94 V-2
Minimum Installation Temperature (Celsius)-20 Degree Celsius
Minimum Operating Temperature (Fahrenheit) UOMDegree
