3M Products & Supplies

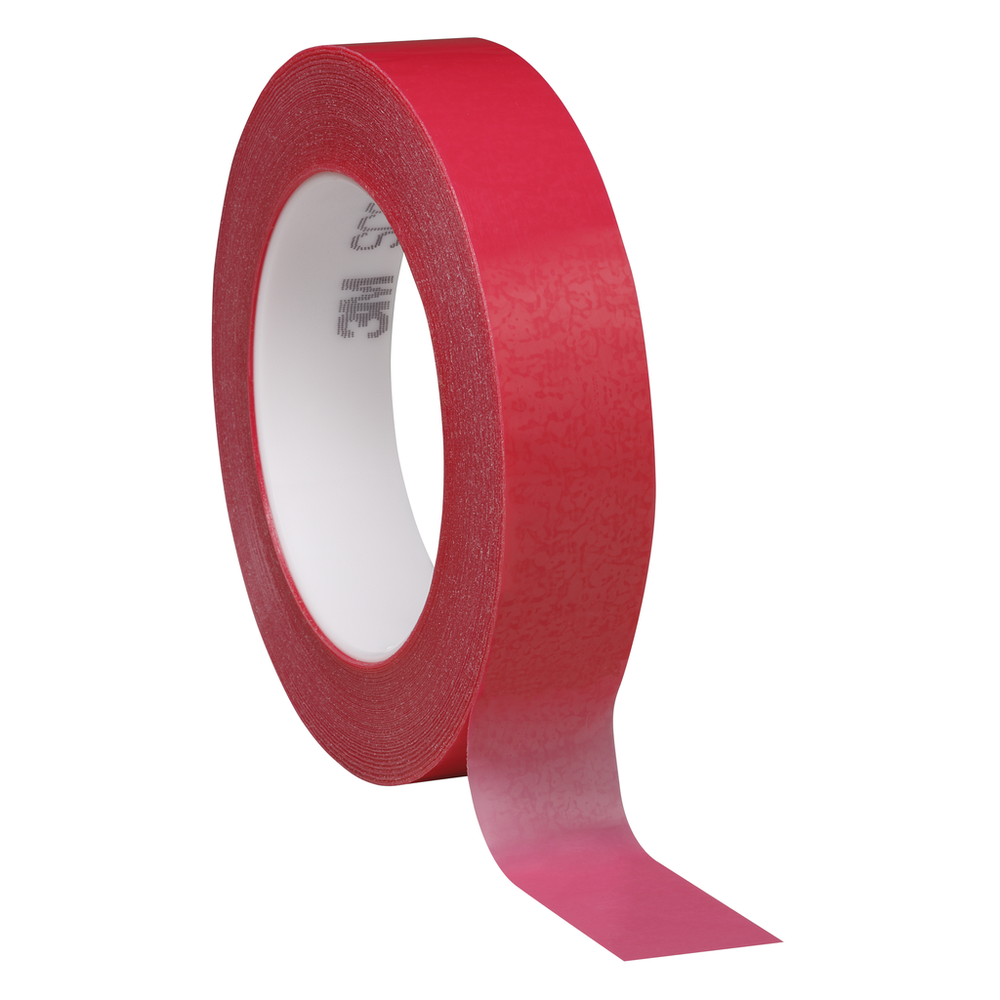

3M™ Circuit Plating Tape 1280 Red, 12 in x 144 yds x 4.2 mil, 1/Case - 7010048803

Sold As: 4-Pack
SKU: 7010048803
MPN: 7010048803
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051115530142
3M ID: 70006461118
5 Digit UPC: 53014
$2,362.05 ($590.51 / Count)
Hurry up! Current stock:

Product Description

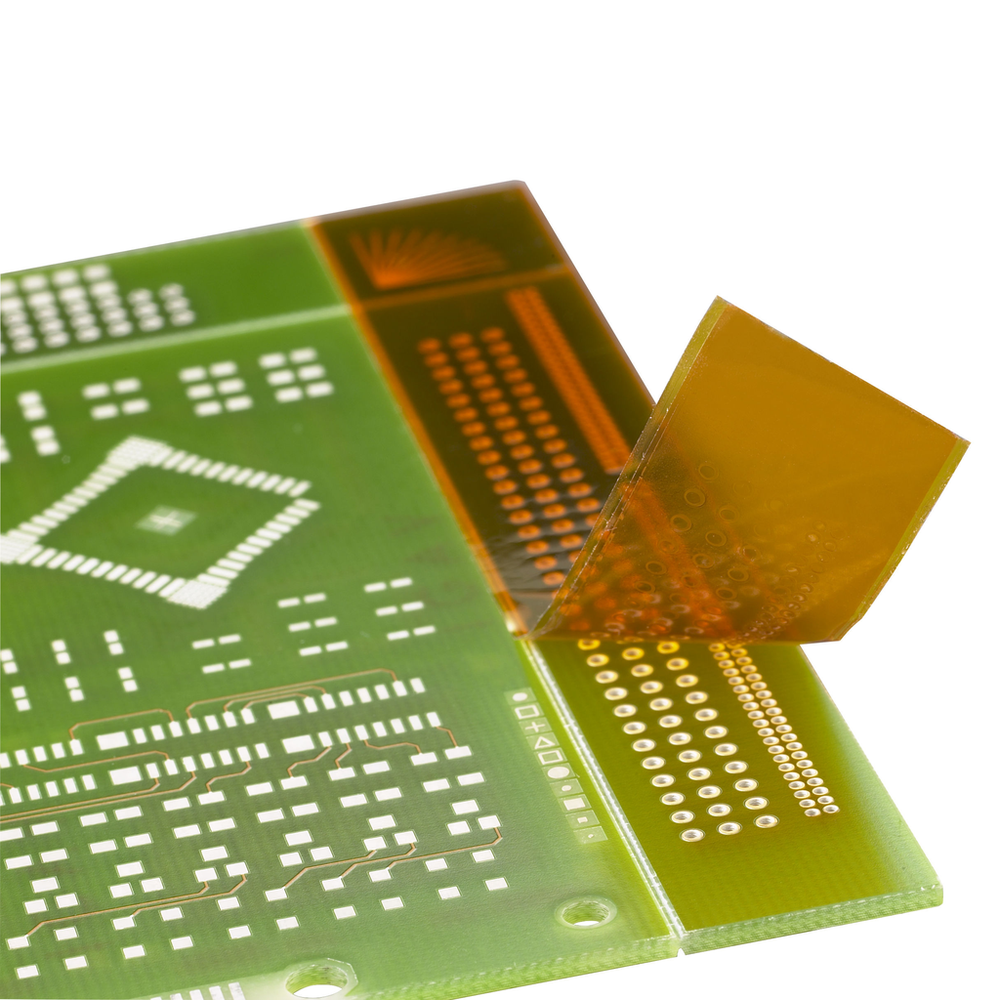

3M™ Circuit Plating Tape 1280 with polyester film used for PCB masking tape or other high temperature applications. Red. 3.6 mil thick.

Features

  • Polyester backing reduces stretch and recovery of tape and associated uneven stop-off line
  • Thick adhesive coating reduces undercutting because adhesive helps block out solutions between fingers
  • Solvent clean up of the board is recommended to facilitate subsequent soldering
  • Polyethylene tape core instead of cardboard
  • Low stretch polyester film for machine, as well as hand application
Spec Sheet



Downloads

Specifications

Country of OriginMexico
Product ColorRed
Total Tape Thickness without Liner (Imperial)0.091
Adhesive TypeSilicone
Backing (Carrier) MaterialPolyester
Overall Width (Imperial) UOMin
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Metric)3.6
Overall Width (Imperial)12.0
Maximum Operating Temperature (Celsius)155.0 Degree Celsius
Maximum Operating Temperature (Fahrenheit)311.0 Degree Fahrenheit
