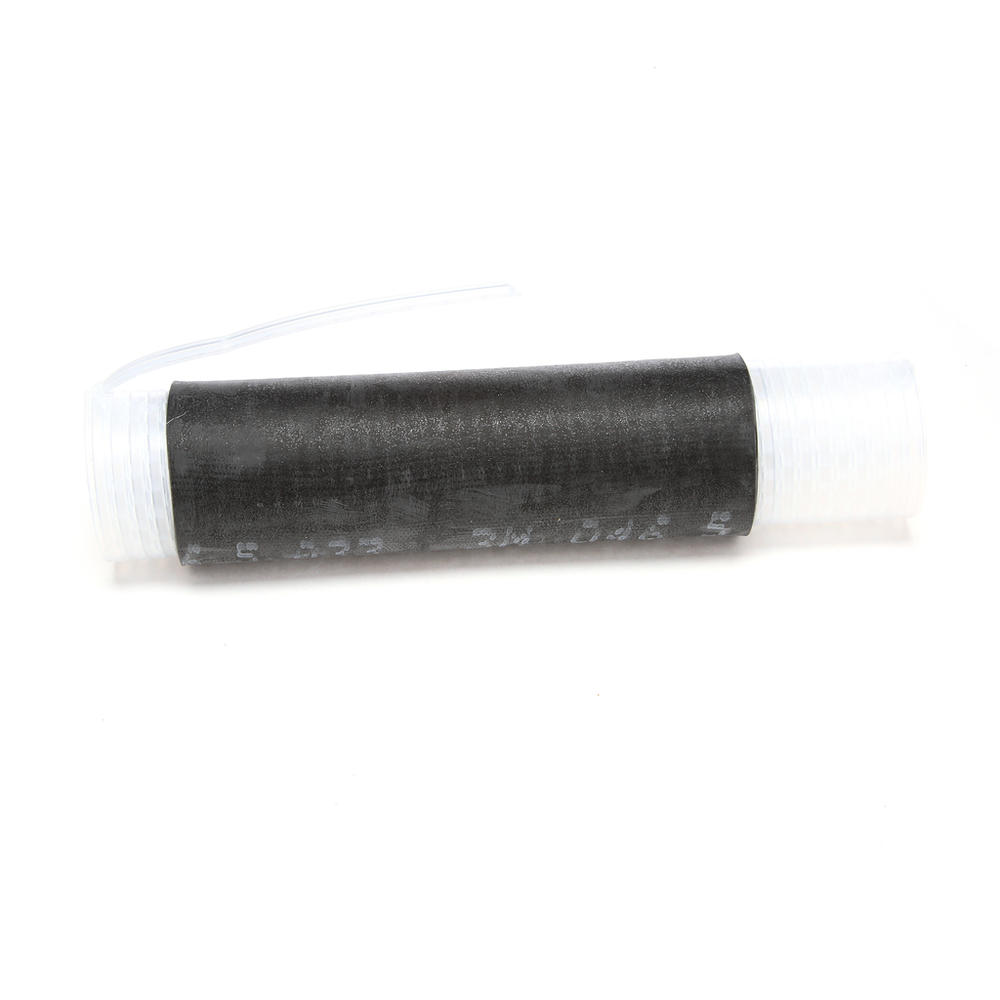

3M™ Cold Shrink Insulator 8427-6, 10/case - 7000132443

Name: 3M™ Cold Shrink Insulator 8427-6, 10/case - 7000132443
Brand: 3M Products & Supplies
SKU: 7000132443
Price: 269.71 USD
Availability: InStock

Sold As: 10-Pack

SKU: 7000132443

MPN: 7000132443

For an accurate lead time please contact us

UPC: 00054007099154

3M ID: 80610456164

5 Digit UPC: 9915

$269.71 ($26.97 / Count)

Hurry up! Current stock:

Quantity:

Product Description

3M™ Cold Shrink Connector Insulators 8420 and 8430 Series are EPDM, factory-expanded rubber tubes designed with cold shrink technology and loaded on a removable plastic core. To install the connection, position it over the inline connector, pull the loose tab on the plastic core while unwinding the core in a counterclockwise direction, allowing the ends of the tube to shrink and form a secure seal. Engineered for primary insulation of solid dielectric insulated wires and cable splices rated up to 1000 volts, the insulators can be used for indoor and outdoor applications to provide a water-resistant seal. They are easy to install by hand, requiring no additional tools or heating sources. Accommodating a variety of cable sizes, 3M™ Cold Shrink Connector Insulators 8420 and 8430 Series provide physical protection and environmental sealing for terminal lug barrels, conduit coupling, and conduit-to-cable breakouts. These insulators are ideal for direct burial or submersible applications involving communication and other non-electrical operations, such as dig-in and sheath repairs, and secondary splices for both copper and aluminum conductors. They can withstand an operating temperature range between -40 °F to 194 °F (-40 °C to 90 °C) and meet the water seal requirements of ANSI C119.1. When you need dependable insulating properties with long-lasting resiliency, look no further than 3M™ Cold Shrink Connector Insulators 8420 and 8430 Series.

Features

HIGH-RESISTANCE: Provides excellent wet electrical properties and resists fluid splashes, acids, and alkalis
EASY TO INSTALL: Requires no tools or heating sources and can be installed by hand

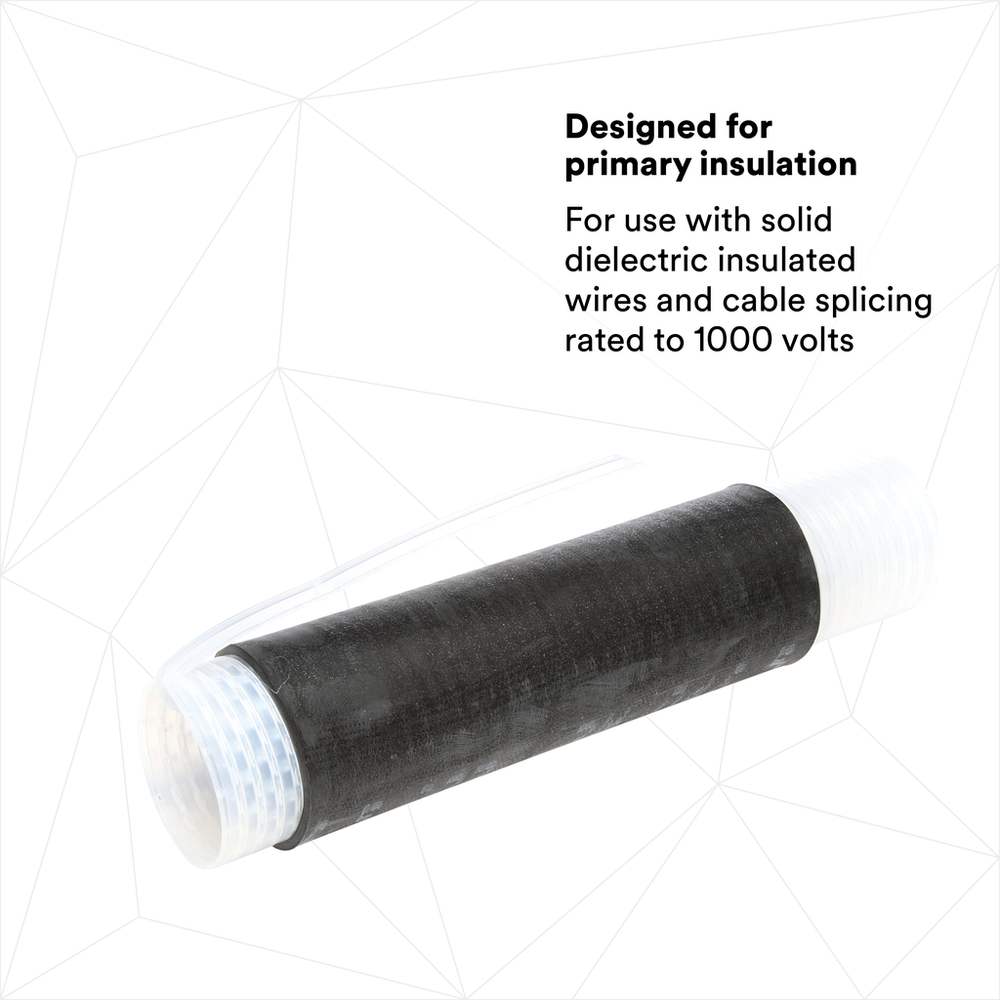

DESIGNED TO PERFORM: Offers reliable primary insulation for solid dielectric wires and secondary splices rated up to 1000 volts
MULTIPURPOSE: For environmental sealing on terminal lug barrels, conduit coupling, conduit-to-cable breakouts, and more

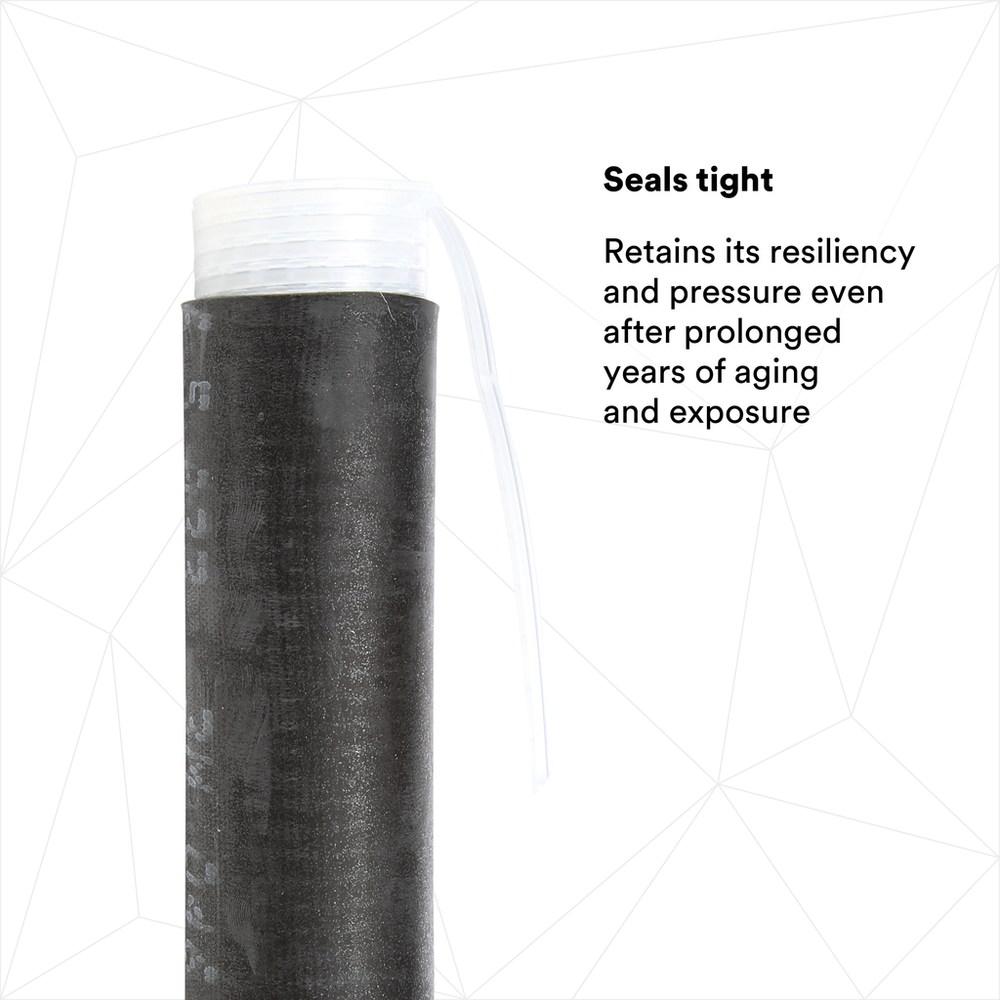

WATER-RESISTANT SEAL: Meets the water-resistant requirements of ANSI C-119.1

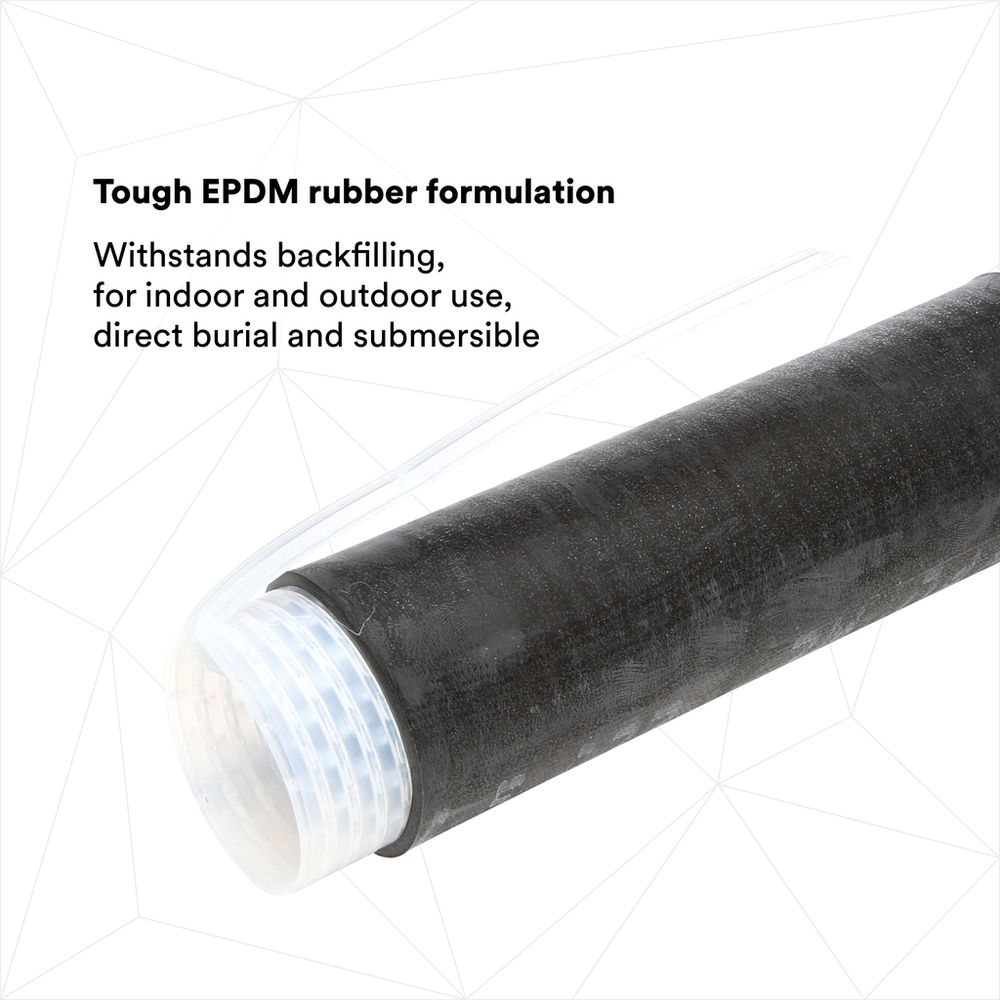

BUILT STRONG: Made of EPDM rubber, enduring operating temperatures ranging from -40 °F to 194 °F (-40 °C to 90 °C)

Spec Sheet

Downloads

Document Instruction 1

Document Brochures

Document Instruction 2

Safety Data Sheet

Spec Sheet

Document Catalogs

Specifications

Shelf Life	1800
Country of Origin	United States
Maximum Operating Temperature (Celsius)	90.0
Inner Diameter After Shrink (Imperial) UOM	in
Inner Diameter After Shrink (Metric) UOM	mm
Material	EPDM Rubber
Number of Conductors	1.0
Splice Type	Cold Shrink
Relaxed Tube Length	6.0
RoHS EU Comments	RoHS 2011/65/EU compliant without exemption
Dielectric Strength (V/mil)	365 V/mil
Maximum Operating Temperature (Celsius) UOM	Degree
Overall Length (Metric)	152.0
Overall Length (Metric) UOM	mm
Model	Cold-shrink
Inner Diameter After Shrink (Metric)	17.02
Product Color	Black
Halogen Free	No
Minimum Operating Temperature (Celsius)	-40.0
Relaxed Tube Length (Metric) UOM	mm
Voltage Application	Low Voltage
Relaxed Tube Length UOM	in
Cable Type	Non-Shieled, Solid Dielectric Power Cable
Inner Diameter Before Shrink (Imperial) UOM	in
Maximum Connector Length (Metric)	50.8 mm
Minimum Operating Temperature (Fahrenheit)	-40.0
Voltage	1 kV
Cable Shielding	Tape Shield
Inner Diameter Before Shrink (Imperial)	1.38
Maximum Operating Temperature (Fahrenheit)	194.0
Inner Diameter After Shrink (Imperial)	0.67
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Overall Length (Imperial)	6.0
Maximum Connector Length	2.0 in
Relaxed Tube Length (Metric)	152.4
Inner Diameter Before Shrink (Metric)	35.1
Minimum Operating Temperature (Celsius) UOM	Degree
Inner Diameter Before Shrink (Metric) UOM	mm
Units per Case	10.0
Overall Length (Imperial) UOM	in
Application	Insulation, mechanical protection, repair
Product Type	Splice
Minimum Operating Temperature (Fahrenheit) UOM	Degree
