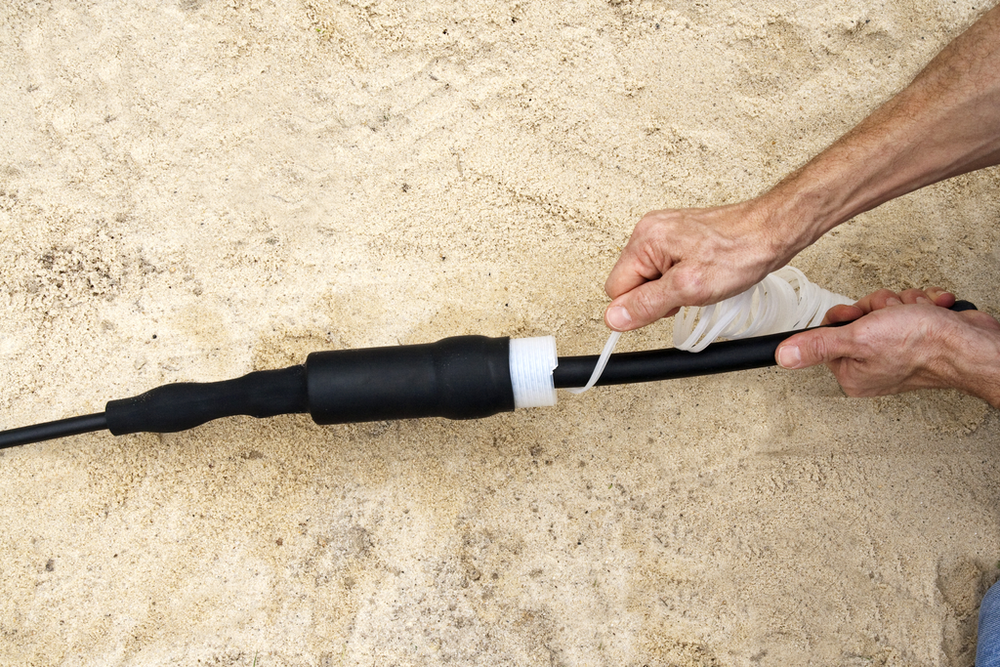

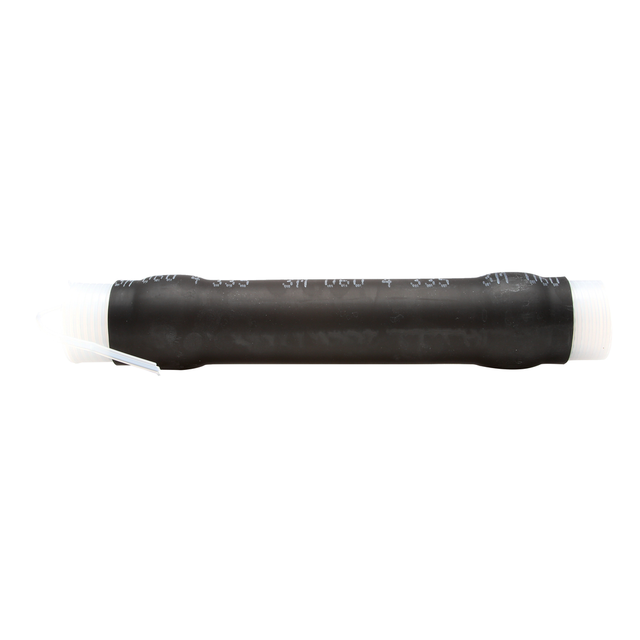

3M™ Cold Shrink Quick Insulator QI Series consists of open-ended and factory-expanded tubular rubber sleeves that feature sealing mastic on each end loaded on a removable plastic core. To install the connection, position it over the inline connector, pull the loose tab on the plastic core while unwinding the core in a counterclockwise direction, allowing the ends of the tube to shrink and form a secure seal. The core and tube sizing, combined with sealing mastic at each end, allow for a broader application range while preserving the seal and insulation properties of the EPDM rubber tube. Designed for primary insulation of solid dielectric insulated wires and cable splices rated up to 1000 volts, the insulators allow for direct burial or submersible applications. They are easy to install by hand, requiring no additional tools or heating sources. Accommodating a variety of cable sizes, 3M™ Cold Shrink Quick Insulator QI Series provides reliable thermal stability, high chemical resistance, and a water-resistant seal that meets the standard for ANSI C-119.1. These insulators are ideal for dig-in and sheath repairs, inline conductor transition connectors, and secondary splices for both copper and aluminum conductors, withstanding an operating temperature range between -40 °F to 194 °F (-40 °C to 90 °C). When you need dependable insulating properties with long-lasting resiliency and pressure performance, 3M™ Cold Shrink Quick Insulator QI Series is your go-to solution.
Features
- MULTIPURPOSE: For dig-in and sheath repairs, inline conductor transition connectors, and secondary splices for both copper and aluminum conductors
- BUILT STRONG: Made of EPDM rubber, enduring operating temperatures ranging from -40 °F to 194 °F (-40 °C to 90 °C)
- EASY TO INSTALL: Requires no tools or heating sources and can be installed by hand
- DESIGNED TO PERFORM: Offers reliable primary insulation for solid dielectric wires and secondary splices rated up to 1000 volts
- WATER-RESISTANT SEAL: Meets the water-resistant requirements of ANSI C-119.1
- HIGH-RESISTANCE: Provides excellent wet electrical properties and resists water, acids, and alkalis
