3M Products & Supplies

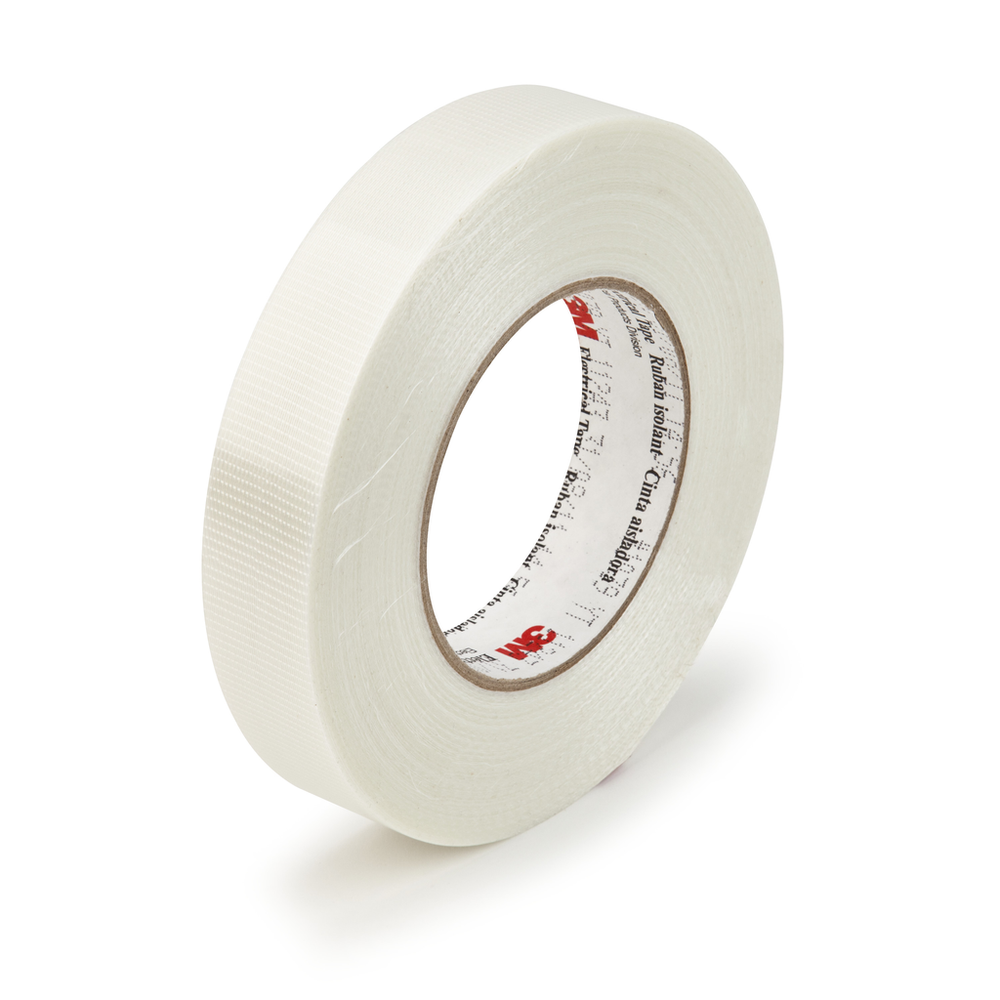

3M™ Filament-Reinforced Electrical Tape 1039, 1/2 in X 60 yds, Bulk, 3-in paper core, 72 Rolls/Case - 7010350276

Sold As: 72-Pack
SKU: 7010350276
MPN: 7010350276
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128602102
3M ID: 80611604721
5 Digit UPC: 60210
$1,112.80 ($15.46 / Count)
Hurry up! Current stock:

Product Description

3M™ Filament Reinforced Electrical Tape 1039 is a 7 mil thick, solvent resistant, electrical filament tape that has a polyester film/glass filament scrim backing and a chemical resistant, acrylic adhesive. The tape is 600V rated and withstands a temperature range of 40 to 266 °F ( 40 to 130 °C).

Features

  • Suitable for anchoring end-turn tapping and lead wires to banding coils
  • Provides stiffness for excellent handling during coil-winding operations
  • Withstands a temperature range of -40 to 266 °F (-40 to 130 °C)
  • Acrylic adhesive for excellent adherence and polyester film/glass filament scrim backing for outstanding electrical characteristics
  • Woven, glass mat provides additional reinforcement
  • Offers good initial adhesion to magnet wire, strip copper and insulation materials

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Total Tape Thickness without Liner (Metric)0.178
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)7.0
Overall Width (Metric)12.7
ApplicationInsulation
Shelf Life UOMYear
Electrolytic Corrosion Factor1.0
Insulation Resistance1 x 10^5 megohms
Overall Width (Imperial)0.0
Adhesive TypeAcrylic
Elongation at Break5
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Metric) UOMmm
Product ColorWhite
