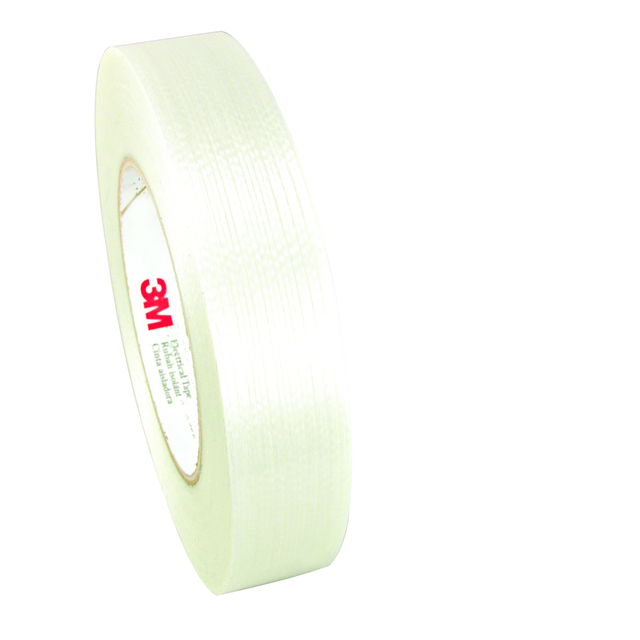

3M™ Filament-Reinforced Electrical Tape 1139, 2 in x 60 yds, 3 in plastic core, Log roll, 24 Rolls/Case - 7010321036

Sold As: 24-Pack
SKU: 7010321036
MPN: 7010321036
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128601495
3M ID: 80611604119
5 Digit UPC: 60149
$1,629.74 ($67.91 / Count)
Hurry up! Current stock:

Product Description

3M™ Filament Reinforced Electrical Tape 1139 is a 6.5 mil thick, acrylic adhesive, solvent resistant, electrical tape. This tape is suitable for oil and air filled transfer applications and reinforcements, as well as for holding and separating ground insulation. The tape is 600V rated and withstands a temperature range of 32 to 311 °F (0 to 155 °C).

Features

  • Designed for applications needing both the dielectric strength of polyester film and the high mechanical strength of glass fibers
  • Excellent for anchoring lead wires to banding coils and end-turn taping
  • UL Listed and RoHS 2011/65/EU Compliant
  • Solvent-resistant, high temperature filament tape with acrylic adhesive
  • Low stretch, high tensile and edge-tear resistant

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Total Tape Thickness without Liner (Imperial) UOMmil
Dielectric Strength (V/mil)33 kV / mm
Overall Width (Imperial)2.0
Insulation Resistance> 10^6 megohms
Overall Length (Metric)54.8
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.14
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Length (Metric) UOMm
Tape GradeProfessional
Product ColorTransparent
Specifications MetCSA Certified, UL Recognized
ApplicationFixing insulation; Insulation
Backing (Carrier) Thickness (Metric) UOMmm
Shelf Life UOMYear
Total Tape Thickness without Liner (Imperial)6.5
Total Tape Thickness without Liner (Metric) UOMmm
Adhesive TypeAcrylic
Total Thickness (Metric)0.165
Overall Width (Metric)50.8
Total Tape Thickness without Liner (Metric)0.165
Backing (Carrier) Thickness (Imperial)5.5
Overall Width (Imperial) UOMin
