3M Products & Supplies

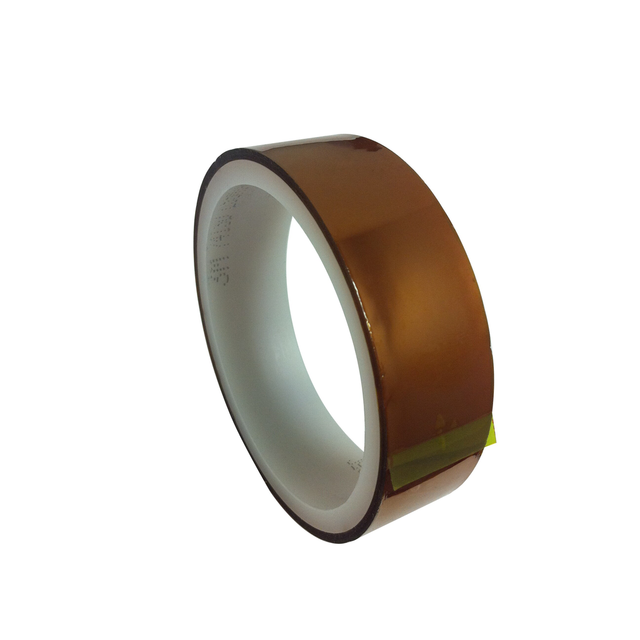

3M™ Low-Static Non-Silicone Polyimide Film Tape 7419, 18 mm x 33 m - 7010301465

Sold As: 36-Pack
SKU: 7010301465
MPN: 7010301465
Lead Time: 14 working days.
UPC: 051111897300
3M ID: 70004030311
5 Digit UPC: 89730
$2,559.25 ($71.09 / Count)
Hurry up! Current stock:

Product Description

3M™ Low-Static, Non-Silicone Polyimide Film Tape 7419 with DuPont™ Kapton® polyimide film and acrylic adhesive used for PCB solder masking and other high-temperature applications. Low-Static. Amber. 18 mm x 33 m

Features

  • Polyethylene tape core instead of cardboard
  • Non-silicone adhesive formulation eliminates the potential for silicone contamination which can interfere with subsequent bonding or conformal coating operations
  • The high temperature acrylic adhesive also has excellent chemical resistance and should be considered for demanding chemical masking applications
  • Specially formulated acrylic adhesive is resistant to typical solder mask temperatures for short periods of time
  • Stays firmly in place during processing and removes cleanly from typical electronic substrates even after 10 min @ 500°s F (260°s C)

Downloads

Specifications

Adhesive TypeAcrylic
Overall Thickness (Imperial)1.8 mil
Overall Length (Metric)33 m
Overall Width (Imperial)0.71 in
Backing MaterialPolyimide Film
Color FamilyYellow
Overall Length (Imperial)36 yd
Overall Width (Metric)18 mm
Product ColorAmber
Overall Thickness (Metric)0.046 mm
