3M Products & Supplies

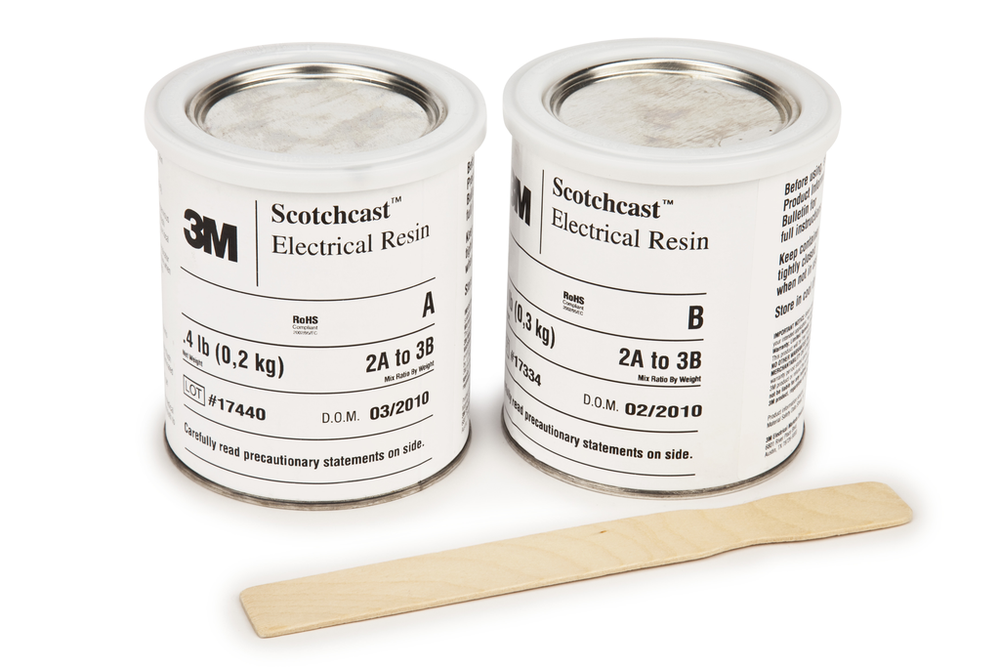

3M™ Scotchcast™ Electrical Resin 280 Part B (36 lb), 1 Drum - 7000058916

SKU: 7000058916
MPN: 7000058916
For an accurate lead time please contact us
UPC: 50054007080683
3M ID: 80700280052
5 Digit UPC: 8068
$1,178.59 each
Hurry up! Current stock:

Product Description

3M™ Scotchcast™ Electrical Resin 280 is a 2 part, oven curing, liquid resin used for electronic and electrical applications requiring the highest level of protection. This unfilled epoxy based resin has a low viscosity and impregnating property, which makes it easy to infuse on most surfaces. It is useful for applications that include filling, patching, insulating and more.

Features

  • Elongates 85% longer than its original size for easy insulation or wrapping
  • 20 minute gel time at 121°C (250°F)
  • 65 Shore D hardness
  • Temperature rated Class F (155˚C)
  • Chemical and moisture resistant
  • Provides maximum resistance to moisture and thermal shock
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Resin CureOven Cure Unfilled Resins
Product ColorClear Amber
FlexibilitySemi-flexible
Resin MatrixUnfilled
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
MaterialEpoxy
Product TypeElectrical Resin
Cure MethodOven
Maximum Operating Temperature (Celsius) UOMDegree
Mining Sector ApprovalNo
Maximum Operating Temperature (Celsius)155.0
Mixed ViscosityLow (
Temperature RatingClass F (
Elongation UOM%
Flame RetardantSelf-extinguishing
Hardness65 Shore D
Storage Time in Months24.0
Flammability RatingNot Self Extinguishing
Base PolymerEpoxy
Dielectric Strength (V/mil)375 V/mil
Cure Temperature>75 Degree Celsius
