3M™ ScotchCode™ Wire Marker Tape Refill Roll SDR 0-9, 50 Rolls/Case - 7000031760

Name: 3M™ ScotchCode™ Wire Marker Tape Refill Roll SDR 0-9, 50 Rolls/Case - 7000031760
Brand: 3M Products & Supplies
SKU: 7000031760
Price: 267.24 USD
Availability: InStock

Sold As: 50-Pack

SKU: 7000031760

MPN: 7000031760

Stock Item: Stock items typically ship within 2-3 business days

UPC: 00054007093688

3M ID: 80611424617

5 Digit UPC: 9368

Marker ID Style: Pre-printed

$267.24 ($5.34 / Count)

Hurry up! Current stock:

Quantity:

Product Description

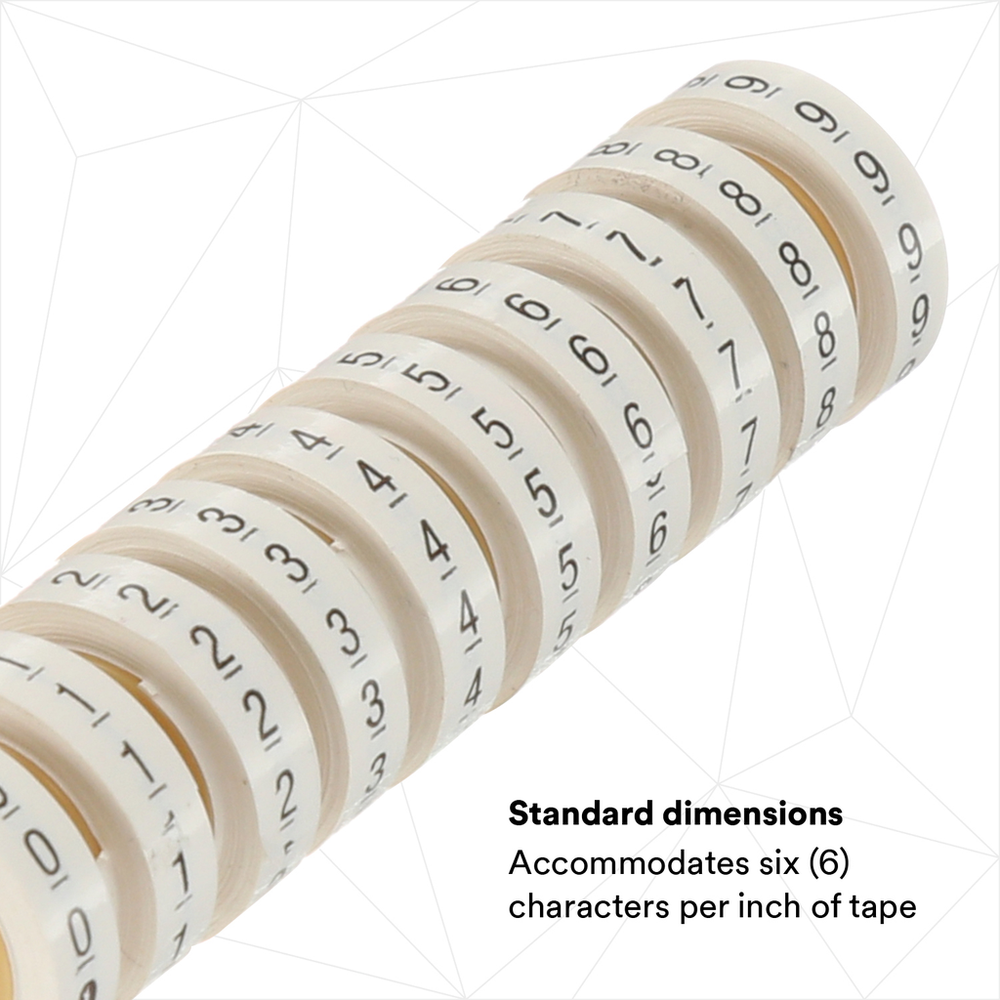

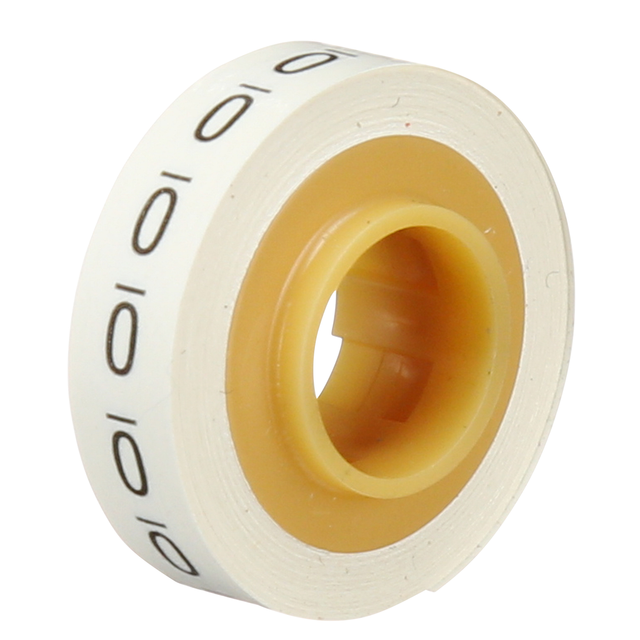

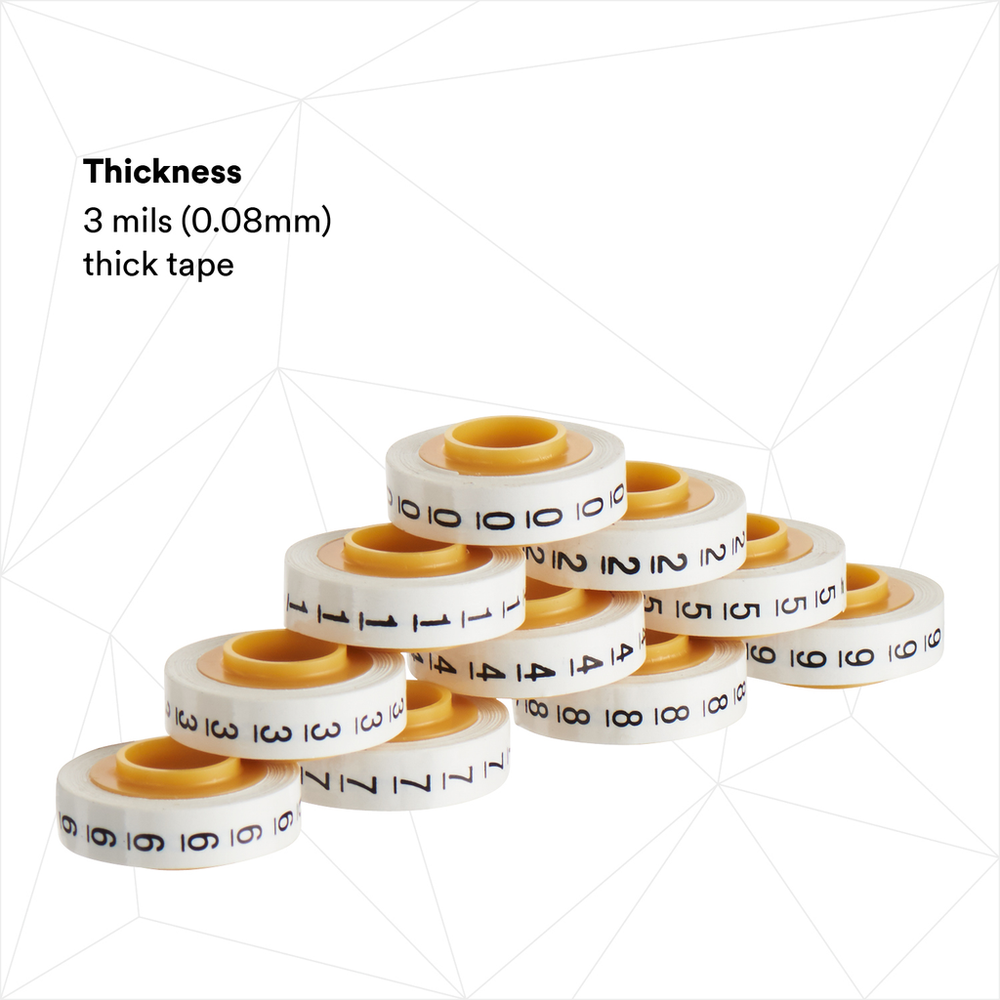

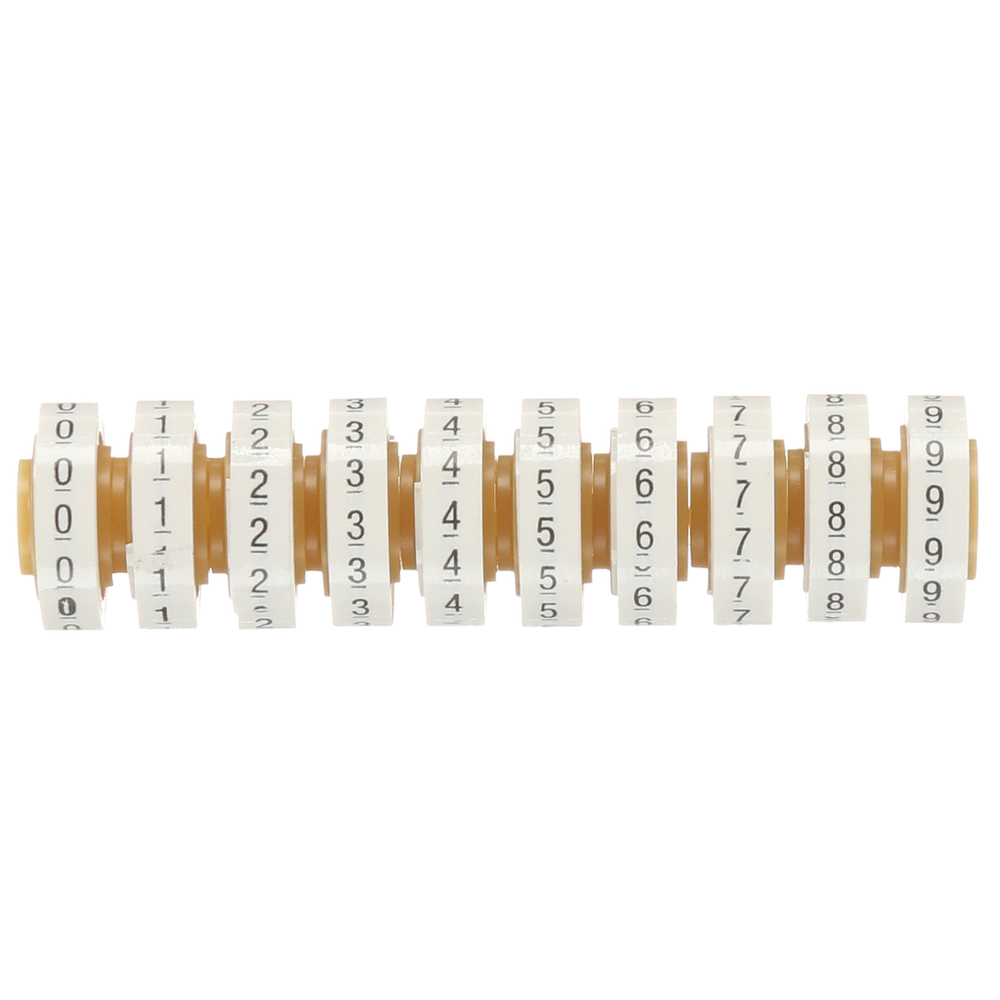

3M™ ScotchCode™ Wire Marker Tape Refill Roll SDR is available in ten NEMA colors, individual numbers and consecutive numbers, letters and symbols.

Features

Available in ten NEMA colors, individual numbers and consecutive numbers, letters and symbols

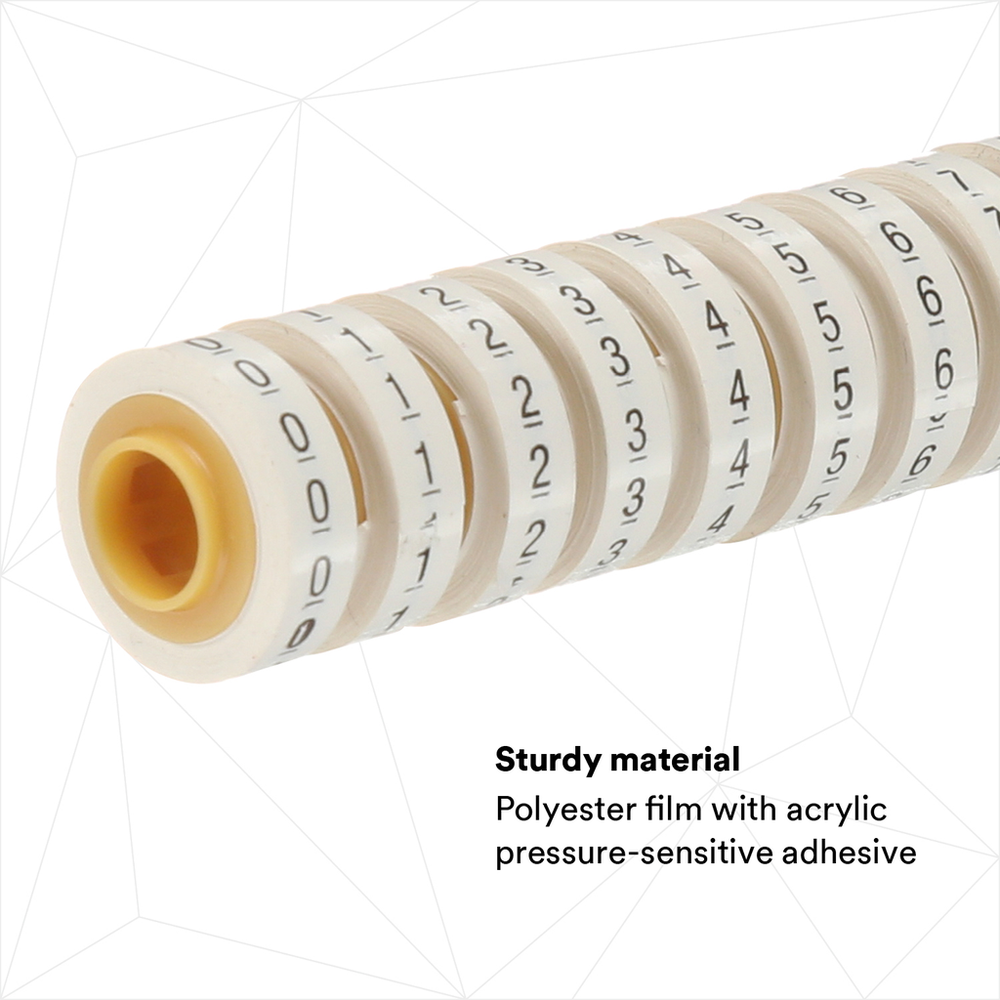

High tack, acrylic adhesive that resists solvents, oil and water and adheres firmly to insulation surfaces
Can be used for applications with operating temperatures between -40°F (-40°C) to 250°F (121°C)

Downloads

Safety Data Sheet

Specifications

Country of Origin	United States
Legend Color	Black
Marker Type	Dispenser
Maximum Insulation Outside Diameter	0.145 in
Tape Color	White
Adhesive Material	Acrylic
Voltage Application	Low Voltage
Maximum Insulation Outer Diameter (Metric) UOM	mm
Maximum Operating Temperature (Celsius) UOM	Degree
Overall Length (Metric)	2.4
Overall Width (Metric)	5.46
Dispenser/Marker Type	Tape Roll Refill
Maximum Insulation Outer Diameter (Metric)	3.7
Maximum Operating Temperature (Celsius)	121.0
Maximum Operating Temperature (Fahrenheit)	250.0
Product Type	Identification
Printed Text Type	Numbers - 0-9
Material	Plastic
Solution for	Access Network: FTTH/FTTB/CATV
With Label Space	No
Maximum Operating Temperature (Fahrenheit) UOM	Degree
UV Resistant	No
Units per Case	50.0
Maximum Recommended Voltage Rating	600.0
Maximum Recommended Voltage Rating UOM	V
Overall Width (Metric) UOM	mm
Application	Marking Wire and Cable
Overall Length (Metric) UOM	m
