3M Products & Supplies

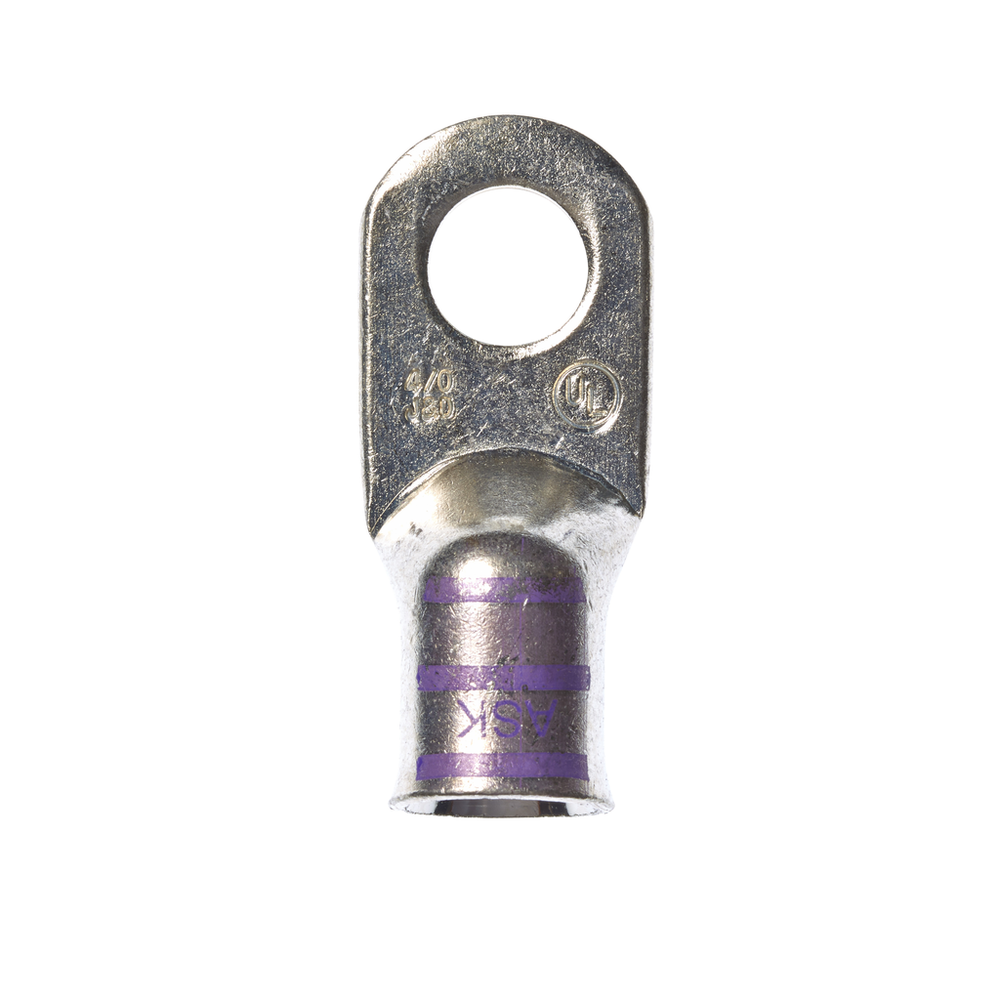

3M™ Scotchlok™ Large Gauge Ring Tongue, Copper Non-Insulated Seamless MC4/0-12RX, Stud Size 1/2, 30/Case - 7100011445

Sold As: 30-Pack
SKU: 7100011445
MPN: 7100011445
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007092100
3M ID: 80611607583
5 Digit UPC: 9210
$324.77 ($10.83 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Copper Seamless Compression Lug Ring Tongue has a non-insulated, seamless barrel and ensures an ideal fit while offering reliable and safe performance. Copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire
  • Made of copper for good conductivity and has tin plating for corrosion resistance
  • UL Listed and RoHS 2011/65/EU Compliant
  • Non-insulated, seamless barrel ensures a secure fit and offers reliable performance
  • Offers electrical connection to a pre-stripped end of a stranded wire

Downloads

Specifications

Country of OriginUnited States
Minimum Stud Diameter (Metric)12.7
Terminal StyleCompression Lugs
Minimum Conductor Size (Imperial)4/0 AWG
Insulation MaterialNon-insulated
Minimum Stud Diameter (Metric) UOMmm
Barrel StyleSeamless
Minimum Stud Diameter (Imperial) UOMin
Minimum Conductor Size (Metric)107 mm²
Terminal TypeRing
Maximum Conductor Size (Imperial)4/0 AWG
Maximum Conductor Size (Metric)107
