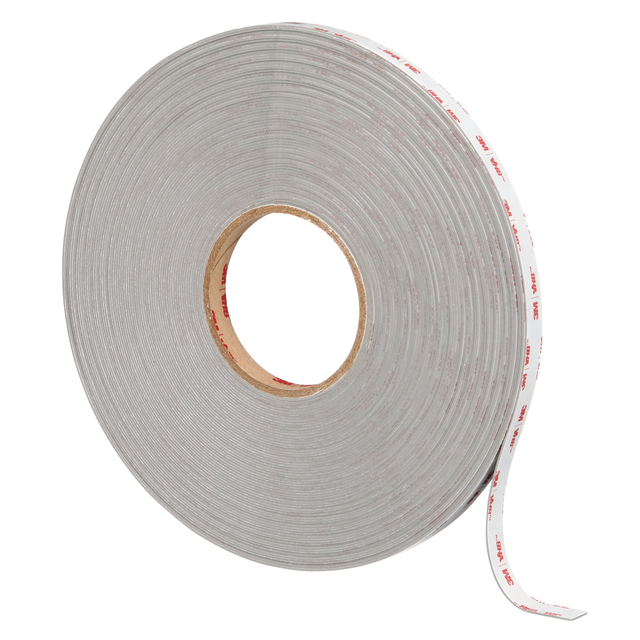

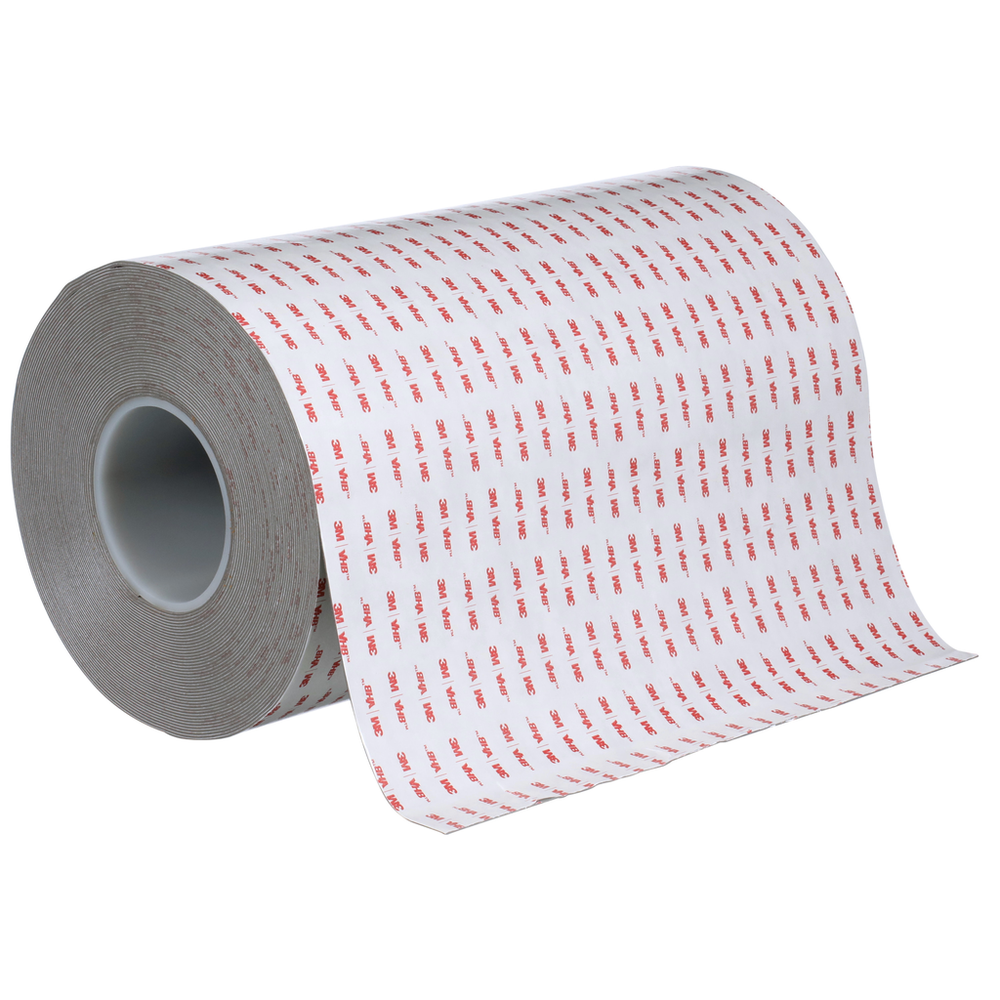

3M™ VHB™ Tape 4926, Gray, 24 in x 36 yd, 15 mil, 1 Roll/Case - 7000029043

Name: 3M™ VHB™ Tape 4926, Gray, 24 in x 36 yd, 15 mil, 1 Roll/Case - 7000029043
Brand: 3M Products & Supplies
SKU: 7000029043
Price: 3561.44 USD
Availability: InStock

SKU: 7000029043

MPN: 7000029043

Made to Order: For a lead time estimate, please send your request to [email protected]

UPC: 00051115256172

3M ID: 70006429933

5 Digit UPC: 25617

$3,561.44 each

Hurry up! Current stock:

Quantity:

Product Description

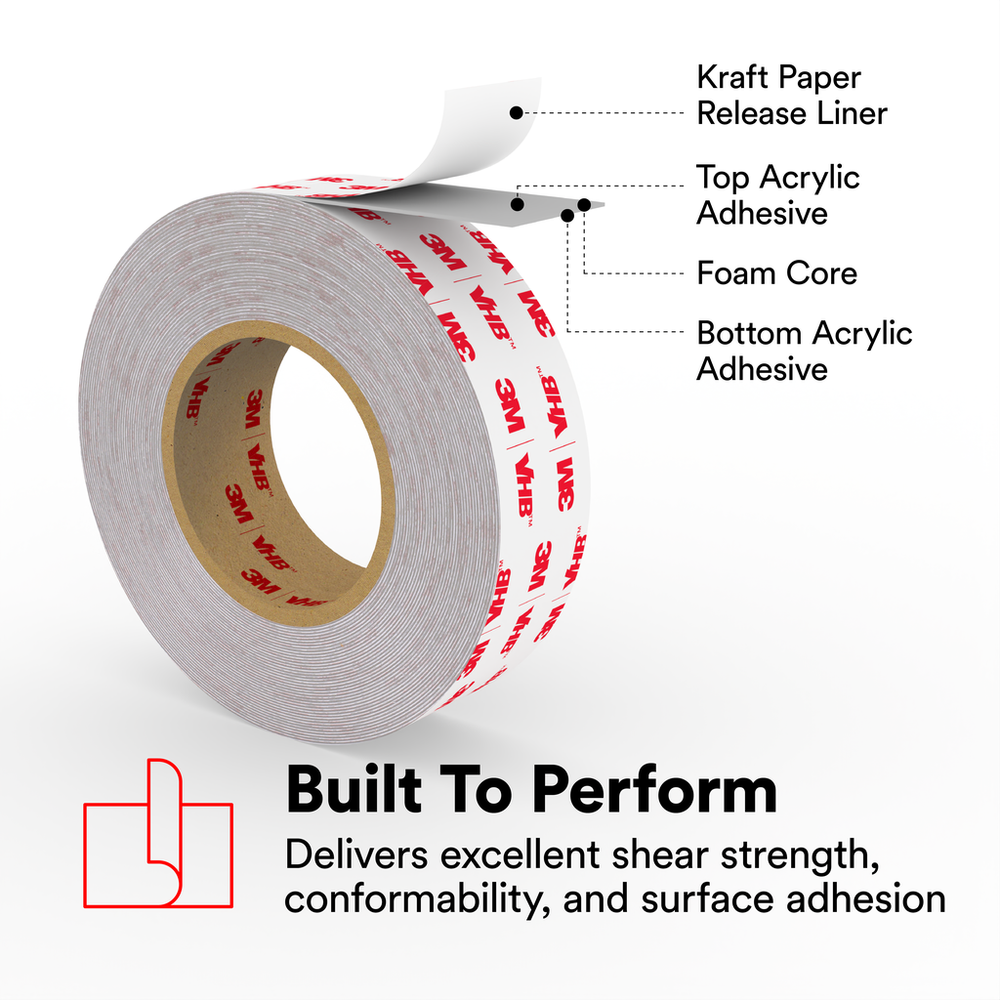

3M™ VHB™ Tape 4926 is a double-sided tape comprised of a multi-purpose acrylic adhesive with a conformable, foam core backed on a 3 mil thick 54# densified kraft paper liner, delivering a total thickness of 15 mil (0.4 mm) when applied. This tape provides an excellent balance of strength, conformability, and adhesion to high and medium surface energy materials, making it a smooth, seamless alternative to rivets, welds, and screws. These unique attributes equip 3M™ VHB™ Tape 4926 to take on many bonding and sealing applications, including attaching metal panels to frames and stiffener attachment. Discover new ways to design thanks to the versatility, viscoelasticity, and powerful bonding potential of 3M™ VHB™ Tape 4926.

Features

MULTI-SURFACE: Intended to adhere to a variety of High Surface Energy (HSE) and Medium Surface Energy (MSE) substrates; these may include aluminum, stainless steel, galvanized steel, acrylic, polycarbonate, and ABS
BUILT TO PERFORM: Delivers excellent shear strength, conformability, and surface adhesion thanks to an acrylic foam core and multi-purpose adhesive
A VERSATILE OPTION: Commonly used in applications across a variety of markets, such as transportation, appliance, electronics, construction, sign and display, and general industrial
SMOOTH AND SEAMLESS: With a thickness of 15 mil (0.4 mm), this tape is designed as an alternative to mechanical fasteners, such as rivets, welds, and screws, or liquid adhesives
FAST AND EASY-TO-USE: A permanent bonding method that provides immediate handling strength; no need to fixture or wait for a cure
DURABLE: Offers excellent outdoor durability and performance, resisting both high and low temperatures, as well as moisture

Spec Sheet

Downloads

Spec Sheet

Document Brochure 1

Document Brochure 2

Specifications

Shelf Life	730
Country of Origin	United States
Units per Case	1.0
Overall Width (Imperial) UOM	in
Core Size (Imperial)	3.0
Maximum Operating Temperature (Celsius)	149.0
Overall Length (Imperial)	36.0
Industries	Appliance, Construction, Electronics, General Industrial, Metalworking, Signage
Overall Length (Metric)	32.9
Core Size (Imperial) UOM	in
Foam Type	Conformable
Overall Width (Metric) UOM	mm
Overall Width (Metric)	609.6
Total Tape Thickness without Liner (Metric) UOM	mm
Total Tape Thickness without Liner (Metric)	0.38
Product Color	Gray
Indoor/Outdoor	Indoor/Outdoor
Overall Length (Imperial) UOM	yd
Adhesive Type	Acrylic
Overall Width (Imperial)	24.0
Overall Length (Metric) UOM	m
Maximum Operating Temperature (Celsius) UOM	Degree
