Drill America

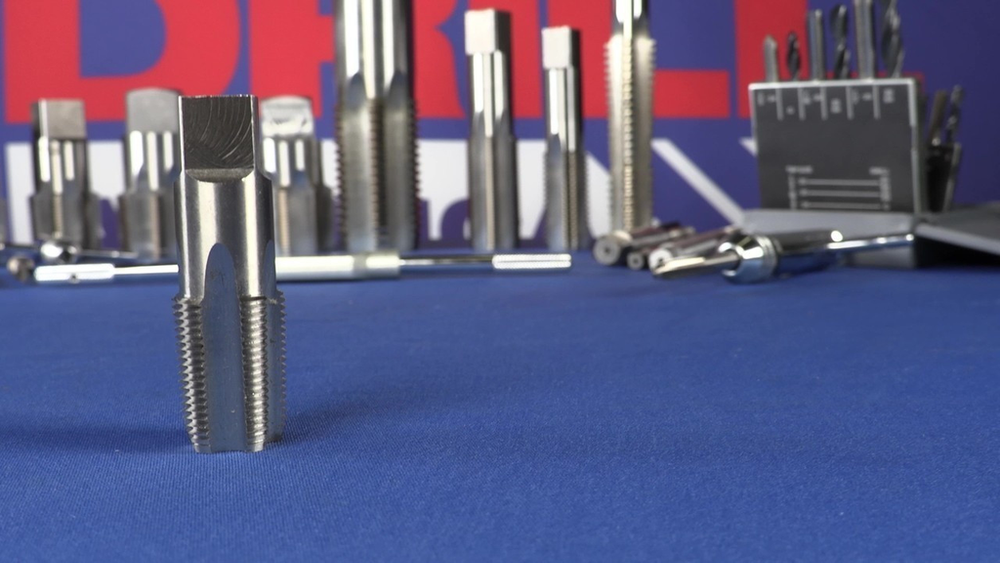

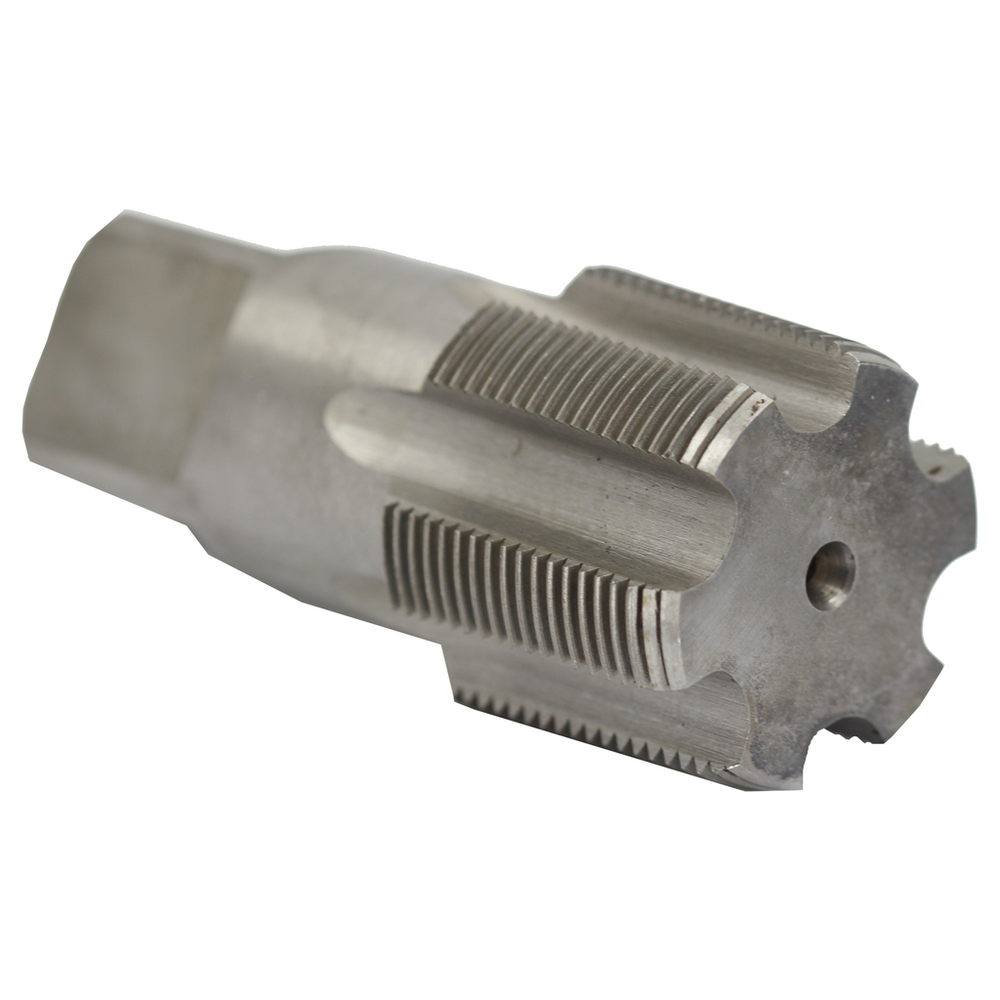

1-1/2 NPT Interrupted Thread HSS NPT Pipe Tap - DWT64231

Name: 1-1/2 NPT Interrupted Thread HSS NPT Pipe Tap - DWT64231
Brand: Drill America
SKU: DWT64231
Price: 207.65 USD
Availability: InStock

SKU: DWT64231

MPN: DWT64231

Stock Item: Stock items typically ship within 2-3 business days

UPC: 887861076241

$207.65 each

Hurry up! Current stock:

Quantity:

Product Description

Interrupted Thread HSS NPT Pipe Tap. Also called pipe taps, HSS NPT pipe taps are designed to clean and or re-thread damaged or jammed pipe threads. They are appropriate for threading a wide variety of materials both ferrous and nonferrous. The nominal size of a Pipe Tap is that of the pipe fitting to be tapped, not the actual size of the tap. The thread tapers 3/4 of an inch per foot. All Pipe Taps furnished with a 2-1/2 to 3-1/2 thread chamfer NPT threads require the use of a sealer like teflon tape or pipe compound.

Features

Also called pipe taps
The nominal size of a Pipe Tap is that of the pipe fitting to be tapped, not the actual size of the tap The thread tapers 3/4 of an inch per foot. All Pipe Taps furnished with a 2-1/2 to 3-1/2 thread chamfer
HSS NPT pipe taps are designed to clean and or re-thread damaged or jammed pipe threads
NPT threads require the use of a sealer like teflon tape or pipe compound
They are appropriate for threading a wide variety of materials both ferrous and nonferrous
NPT Interrupted Thread

Prop 65

WARNING: This product contains Cobalt and/or Nickel and/or Lead a chemical known to the state of California to cause cancer, or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Specifications

Material	High Speed Steel
Finish	Uncoated (Bright)
Tap Drill Size	1-23/32"
Overall Length	4-1/4"
Number of Flutes	7
Type	NPT Interrupted Thread
Thread Standard	NPT Interrupted Thread
Size	1-1/2"-11-1/2"
Country of Origin	China
Thread Length	1-3/4"

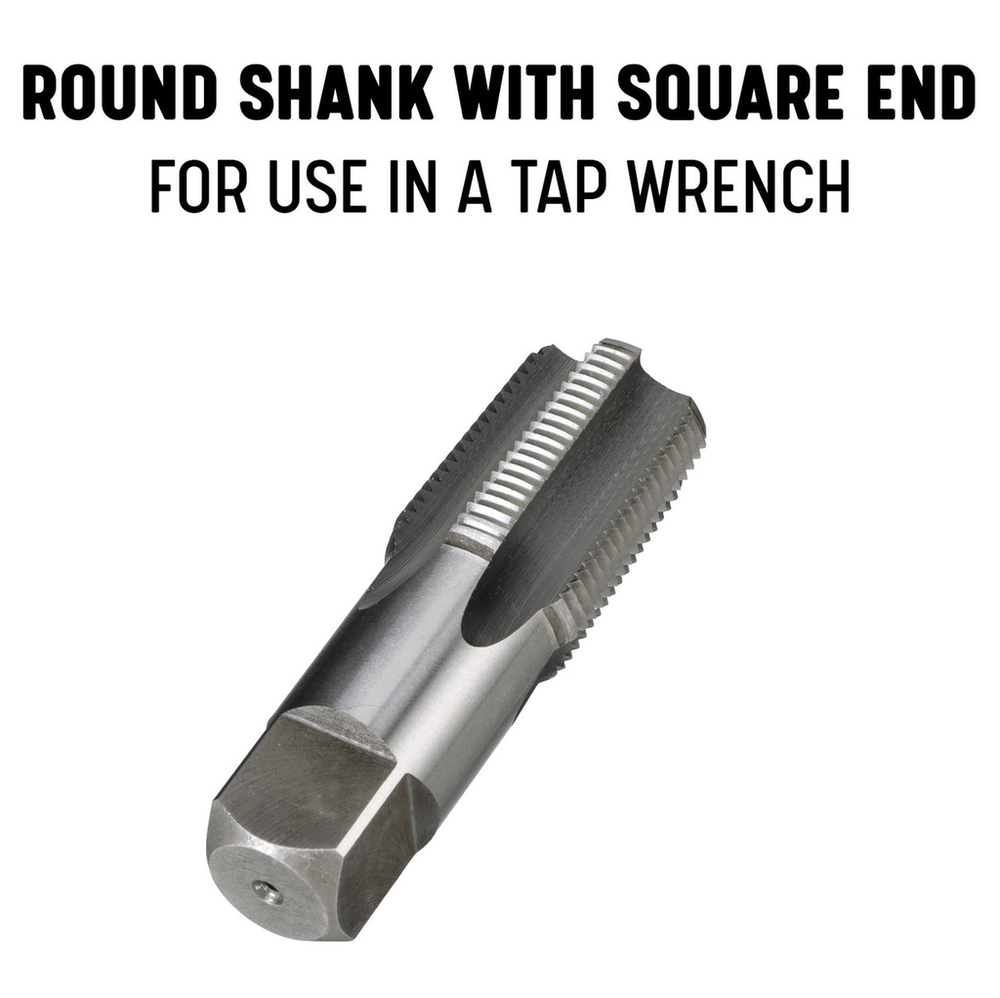

Shank Type	Square
