Drill America

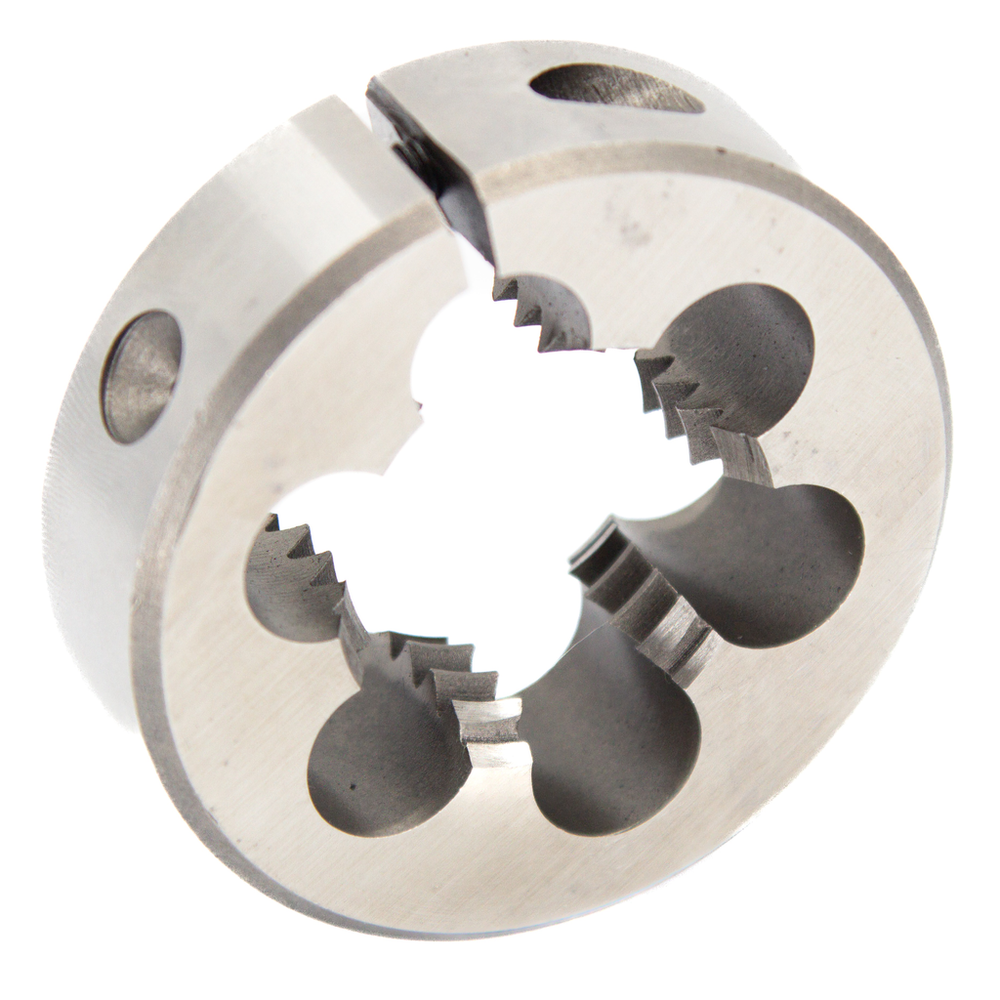

1-1/8"-20 UNS X 2-1/2" OD HSS Round Adjustable Die - DWTSR212-11820

Name: 1-1/8"-20 UNS X 2-1/2" OD HSS Round Adjustable Die - DWTSR212-11820
Brand: Drill America
SKU: DWTSR212-11820
Price: 93.45 USD
Availability: InStock

SKU: DWTSR212-11820

MPN: DWTSR212-11820

Stock Item: Stock items typically ship within 2-3 business days

UPC: 887861116664

$93.45 each

Hurry up! Current stock:

Quantity:

Product Description

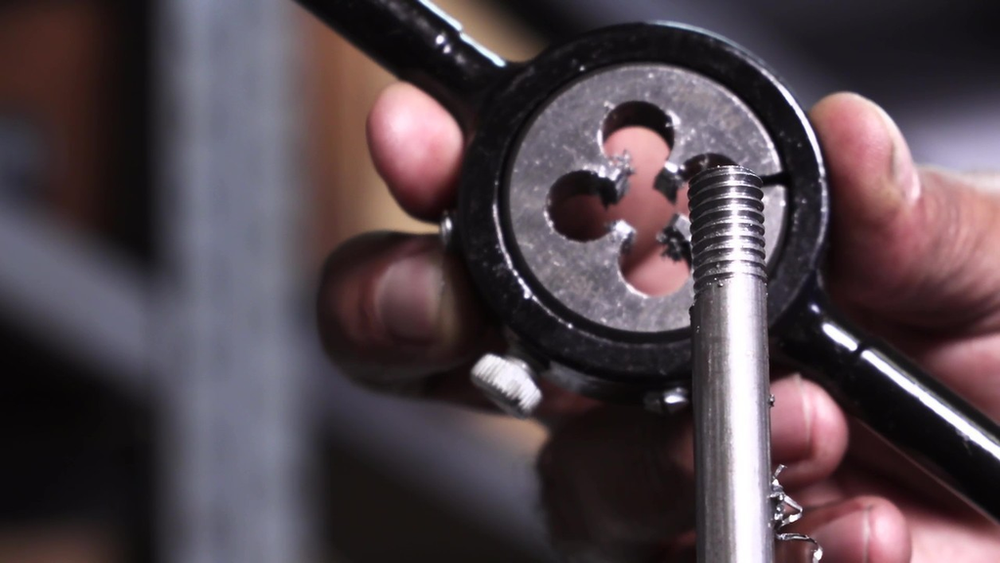

HSS Round Dies are for use in making new threads or re-threading existing threads. They are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance. Round dies are chamfered on both faces, one side has a 2 to 3 thread chamfer for threading and the other side has a 1 to 1-1/2 thread chamfer for threading close to a shoulder. Adjustments are made by a fine pitch screw which forces the sides of the die apart, or allows them to spring together. The slot is beveled so that when the dies are used in a machine holder the adjusting screw can be removed and adjustment made by the adjusting screws in the holder.

Features

For use in making new threads or re-threading existing threads
The slot is beveled so that when the dies are used in a machine holder the adjusting screw can be removed and adjustment made by the adjusting screws in the holder
Good for most general purpose applications, offering a combination of hardness and toughness for wear resistance
Adjustment is obtained by a fine pitch screw which forces the sides of the die apart, or allows them to spring together
One side has a 2 to 3 thread chamfer for threading, the other side has a 1 to 1-1/2 thread chamfer for threading close to a shoulder
Round die is chamfered on both faces

Prop 65

WARNING: This product contains Cobalt and/or Nickel and/or Lead a chemical known to the state of California to cause cancer, or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Specifications

Material	High Speed Steel
Finish	Uncoated (Bright)
Outer Diameter	2-1/2"
Thread Size	1-1/8"
Size	1-1/8"-20
Thread Type	UNS
Corresponding Die Stock	2-1/2"
Country of Origin	China
