Drill America

11/16"-11 X 1-1/2" OD UNS HSS Round Adjustable Die - DWTH112-111611

Name: 11/16"-11 X 1-1/2" OD UNS HSS Round Adjustable Die - DWTH112-111611
Brand: Drill America
SKU: DWTH112-111611
Price: 14.33 USD
Availability: InStock

SKU: DWTH112-111611

MPN: DWTH112-111611

Stock Item: Stock items typically ship within 2-3 business days

UPC: 887861101776

$14.33 each

Hurry up! Current stock:

Quantity:

Product Description

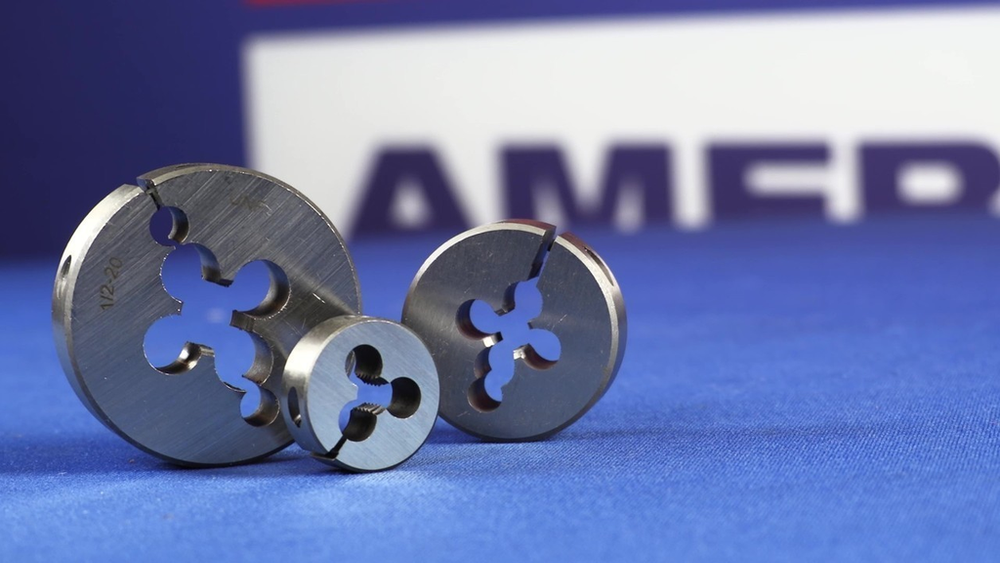

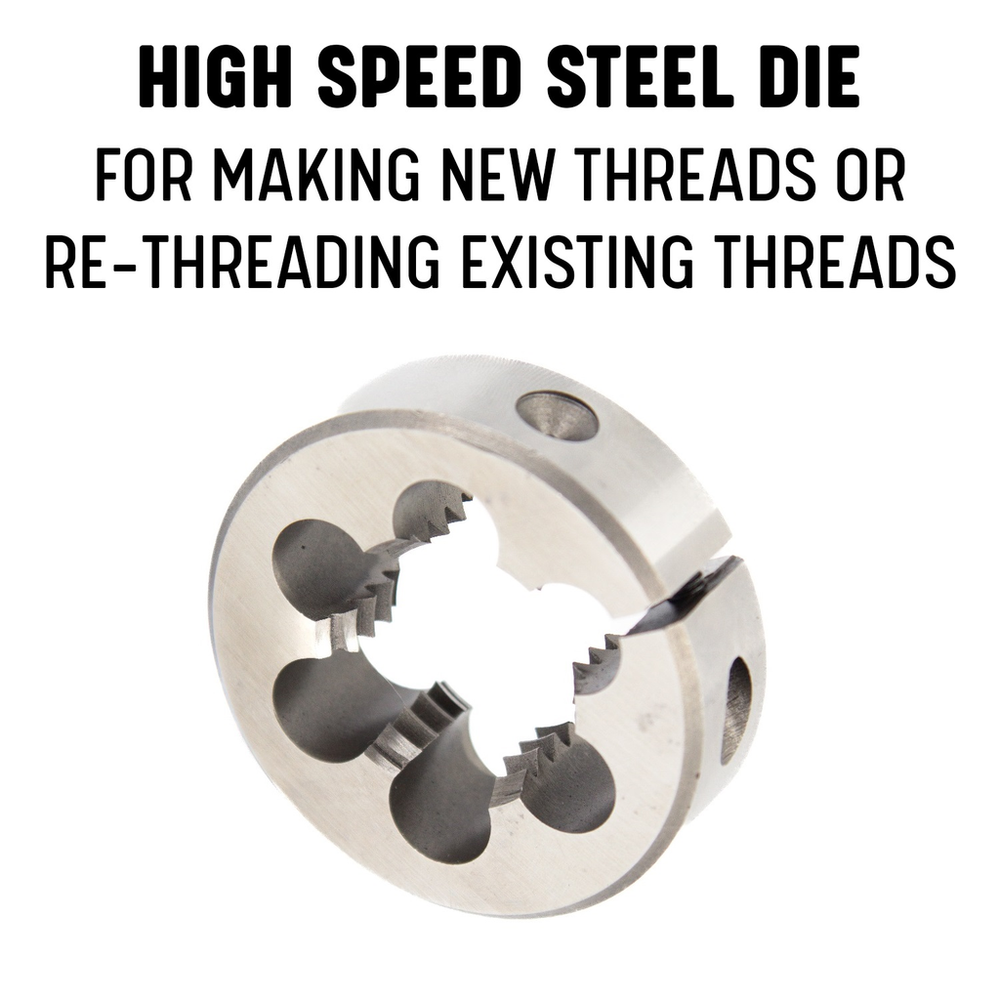

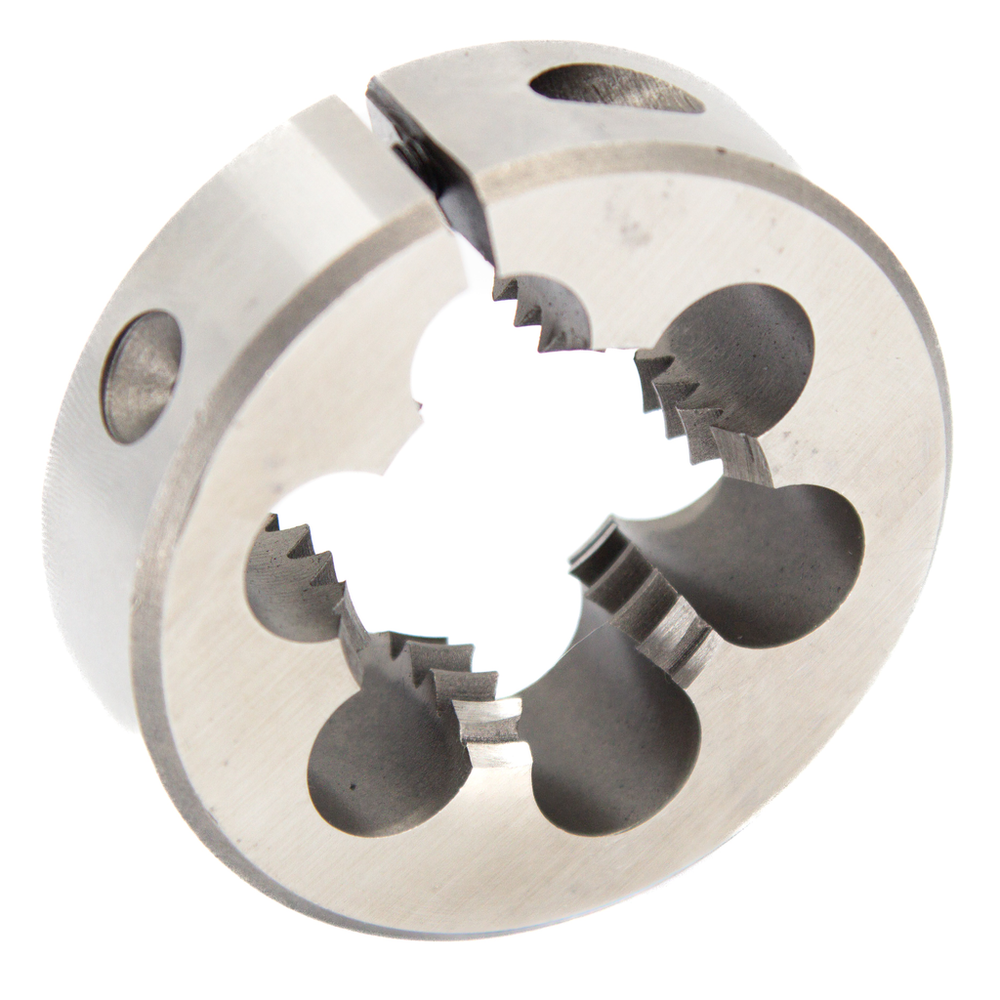

HSS Round Dies are for use in making new threads or re-threading existing threads. They are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance. Round dies are chamfered on both faces, one side has a 2 to 3 thread chamfer for threading and the other side has a 1 to 1-1/2 thread chamfer for threading close to a shoulder. Adjustments are made by a fine pitch screw which forces the sides of the die apart, or allows them to spring together. The slot is beveled so that when the dies are used in a machine holder the adjusting screw can be removed and adjustment made by the adjusting screws in the holder.

Features

Good for most general purpose applications, offering a combination of hardness and toughness for wear resistance
Adjustment is obtained by a fine pitch screw which forces the sides of the die apart, or allows them to spring together

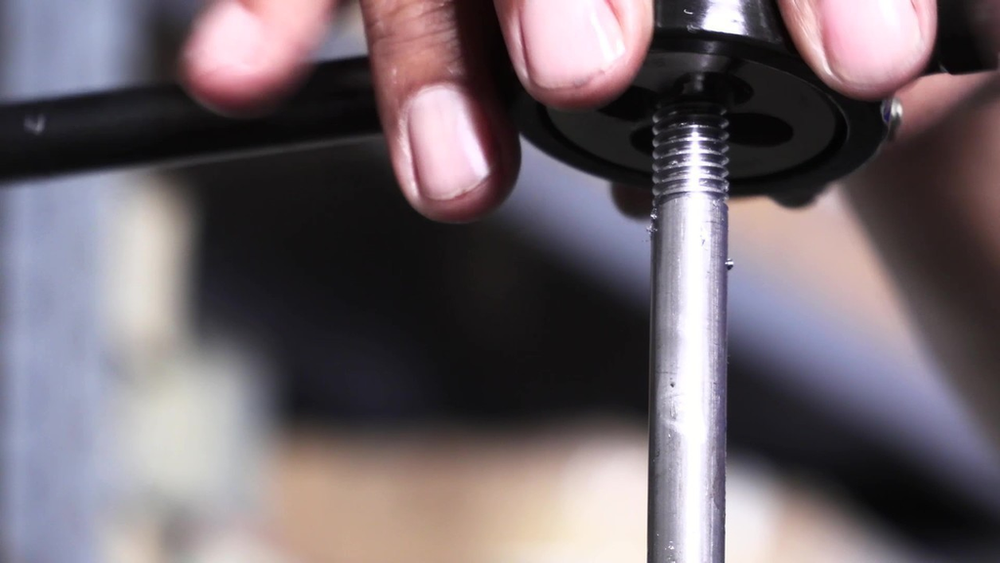

For use in making new threads or re-threading existing threads
Round die is chamfered on both faces
The slot is beveled so that when the dies are used in a machine holder the adjusting screw can be removed and adjustment made by the adjusting screws in the holder
One side has a 2 to 3 thread chamfer for threading, the other side has a 1 to 1-1/2 thread chamfer for threading close to a shoulder

Prop 65

WARNING: This product contains Cobalt and/or Nickel and/or Lead a chemical known to the state of California to cause cancer, or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Specifications

Material	High Speed Steel
Finish	Uncoated (Bright)
Size	11/16"-11
Country of Origin	China
Thread Size	11/16"
Corresponding Die Stock	1-1/2"
Thread Type	UNS
Outer Diameter	1-1/2"
