Drill America

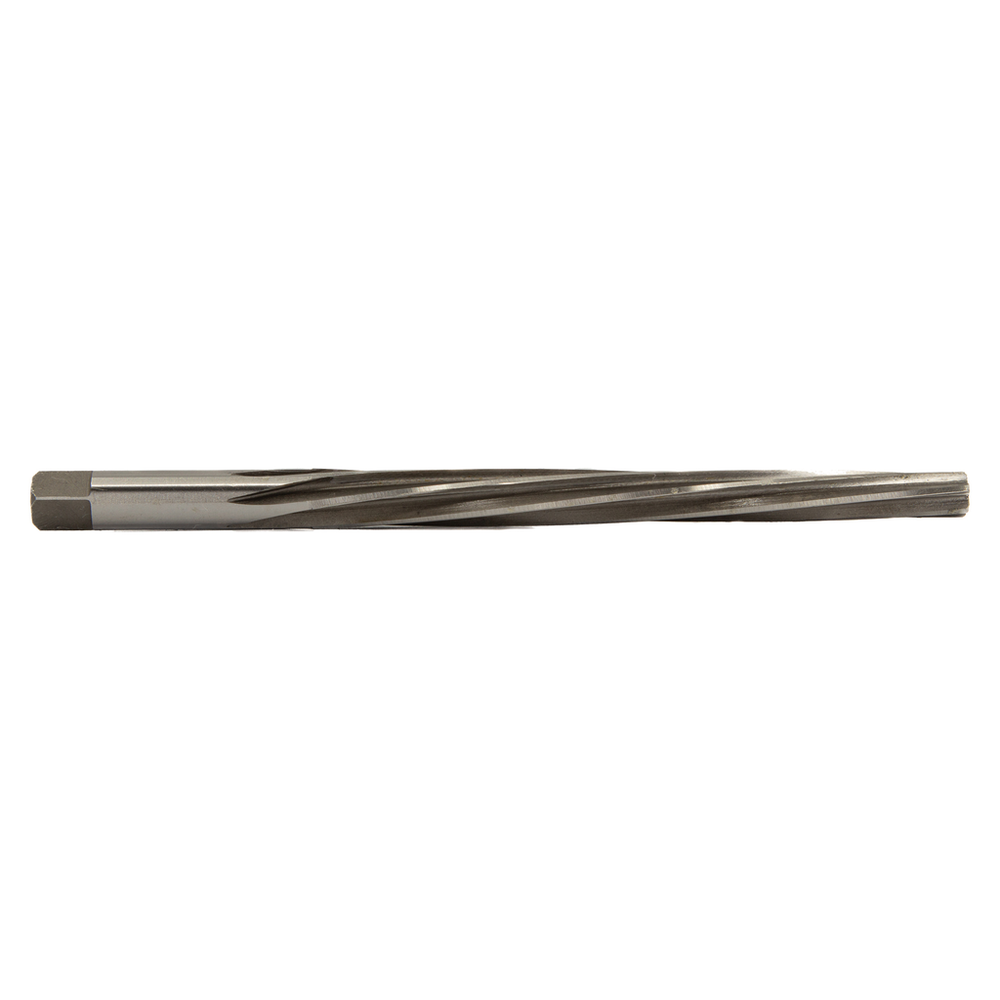

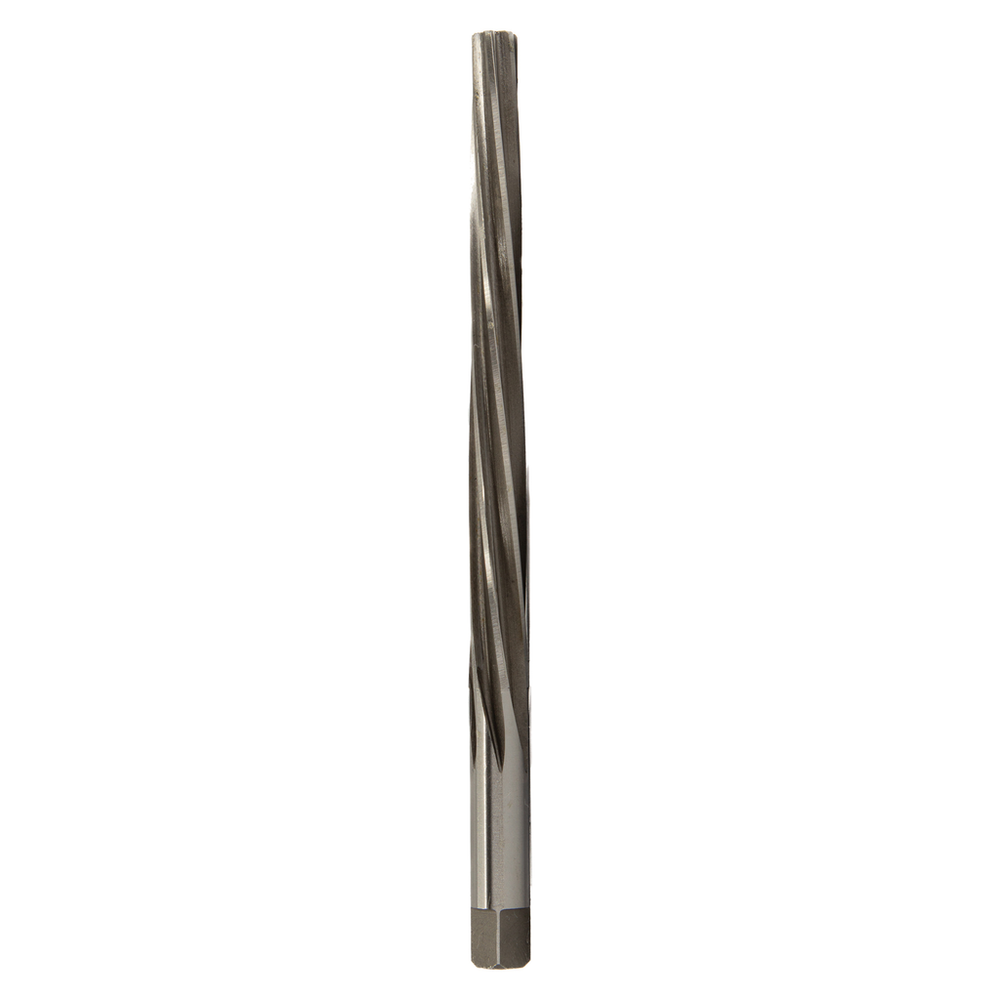

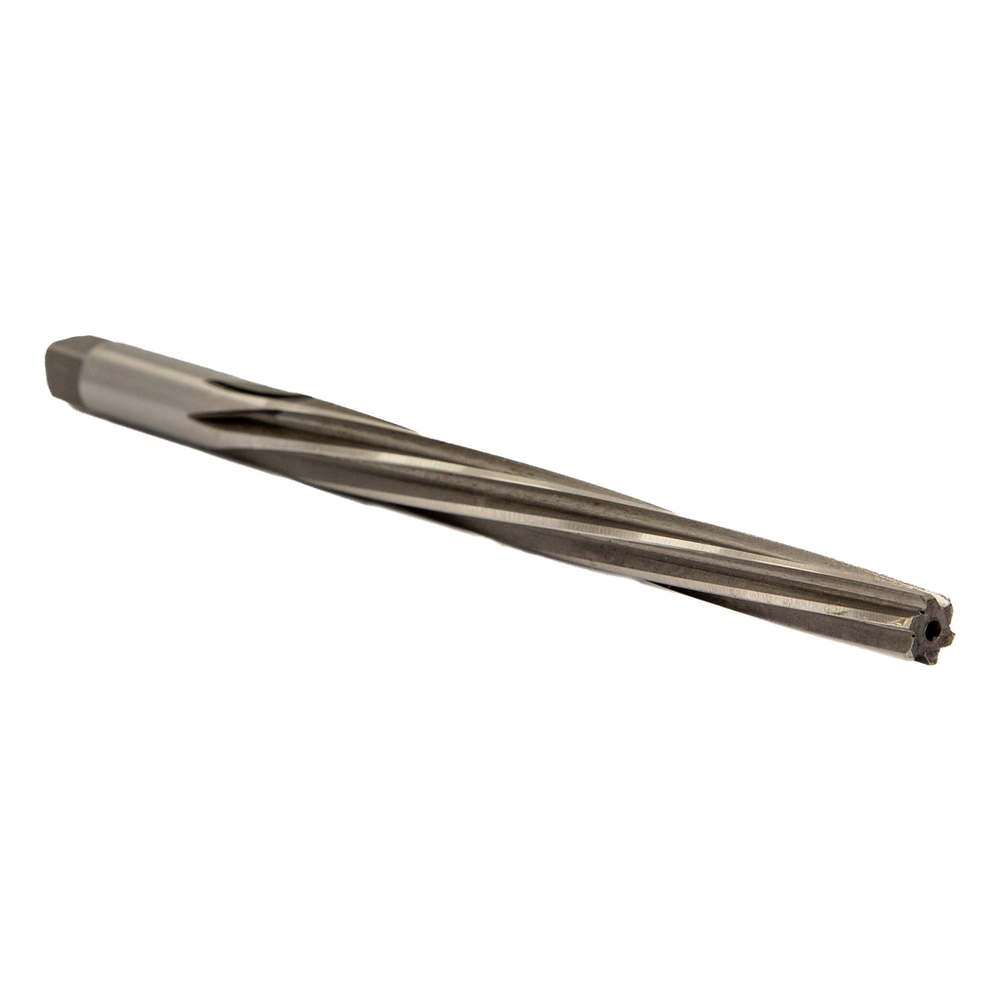

#13 HSS Spiral Flute Taper Pin Reamer - DWRRTPS13

SKU: DWRRTPS13
MPN: DWRRTPS13
Stock Item: Stock items typically ship within 2-3 business days
UPC: 887861148344
$297.61 each
Hurry up! Current stock:

Product Description

Tapered reamers turn a straight hole into a tapered hole into which standard taper pins will fit. The straight-flute and spiral-flute reamers are generally used by hand while the helical-flute is designed for machine use. The square on the shanks of the straight and spiral fluted are suitable for holding in a tap wrench or vise. The straight flute taper pin reamer is recommended for most materials. The spiral flute taper pin reamer is recommended for applications where the reamer tends to wedge itself. The Helical-flute Taper pin reamer has the geometry for reaming holes for tapered pins with a machine. The free cutting action at high speeds produces a good finish and minimizes chip packing in the flutes.

Features

  • The straight flute taper pin reamer is recommended for most materials
  • The spiral flute taper pin reamer is recommended for applications where the reamer tends to wedge itself
  • The free cutting action at high speeds produces a good finish and minimizes chip packing in the flutes
  • The straight-flute and spiral-flute reamers are generally used by hand while the helical-flute is designed for machine use
  • Tapered reamers turn a straight hole into a tapered hole into which standard taper pins will fit
  • The Helical-flute Taper pin reamer has the geometry for reaming holes for tapered pins with a machine
  • The square on the shanks of the straight and spiral fluted are suitable for holding in a tap wrench or vise

Prop 65

  • WARNING: This product contains Cobalt and/or Nickel and/or Lead a chemical known to the state of California to cause cancer, or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Specifications

MaterialHigh Speed Steel
FinishUncoated (Bright)
Number of Flutes6
Overall Length16"
Shank TypeRound
StyleTaper Pin Reamer
Flute TypeSpiral
Country of OriginChina
Flute Length12"
Size#13
