2688A UCT 25.5MMx300M 2D Pack - 7100158238

Sold As: 10-Pack
SKU: 7100158238
MPN: 7100158238
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 08887862329027
3M ID: XA006799531
$1,821.47 ($182.15 / Count)
Hurry up! Current stock:

Product Description

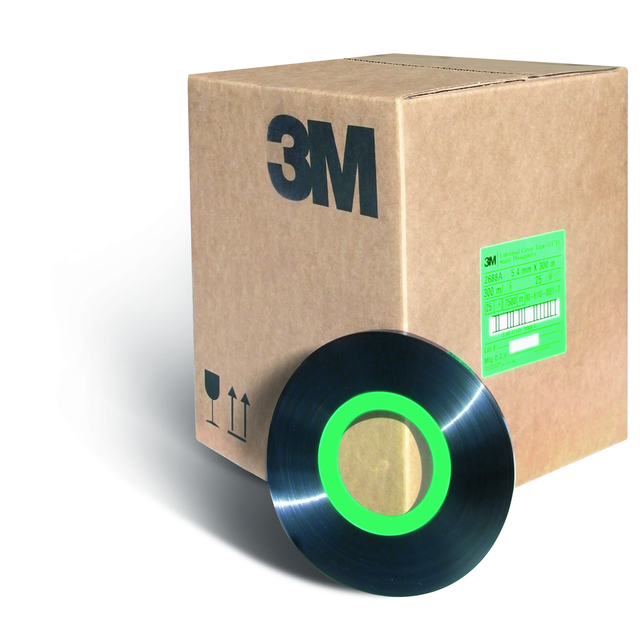

3M™ Universal Cover Tape (UCT) 2688A is specially designed with a transparent polypropylene film and synthetic room temperature pressure sensitive adhesive (PSA) strips. It also has static dissipative film on the component side.

Features

  • Features an innovative peeling design with repeatable tracks and score lines to remove only the center part of the cover tape
  • Highly recommended for WLCSP, bare dies and ultra-thin packages that require a high performing cover tape
  • Transparent polypropylene film tape with layer of static dissipative coating on the component side and a synthetic, room temperature pressure sensitive adhesive strip along each edge
  • 300 m rolls are available in standard widths of 5.4 mm, 9.3 mm, 13.3 mm and 21.3 mm
  • Works well on 3M™ Polycarbonate Carrier Tapes
  • Designed to offer smooth peeling performance with a tight range, helping reduce vibration and component movement, while increasing overall pick-and-place productivity

Specifications

Overall Thickness (Metric)0.048
Country of OriginSingapore
Backing (Carrier) MaterialPolyester Film
Overall Width (Imperial)1.004
Overall Thickness (Metric) UOMmm
Overall Width (Imperial) UOMin
Maximum Sealing Temperature (Fahrenheit)73.0
Minimum Sealing Temperature (Fahrenheit)73.0
Overall Width (Metric) UOMmm
Overall Length (Metric)300.0
Elongation150.0 %
Minimum Sealing Temperature (Celsius)23.0
ESD Material TypeStatic Dissipative
Haze Percentage0.0
Product UsageBare Die; Discrete Components; LEDs; Passive Components; WLCSP
Overall Thickness (Imperial)0.002
Overall Length (Imperial)328.084
Overall Thickness (Imperial) UOMin
Overall Width (Metric)25.5
Overall Length (Imperial) UOMyd
Maximum Sealing Temperature (Celsius)23.0
Overall Length (Metric) UOMm
