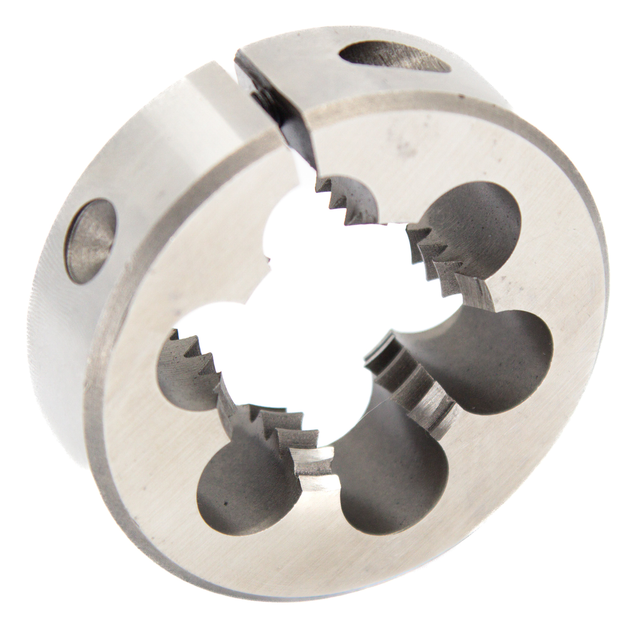

3/8"-18 NPS 2" OD HSS Round Adjustable Pipe Die - DWTH2-38NPS

Name: 3/8"-18 NPS 2" OD HSS Round Adjustable Pipe Die - DWTH2-38NPS
Brand: Drill America
SKU: DWTH2-38NPS
Price: 49.59 USD
Availability: InStock

SKU: DWTH2-38NPS

MPN: DWTH2-38NPS

Stock Item: Stock items typically ship within 2-3 business days

UPC: 887861103138

$49.59 each

Hurry up! Current stock:

Quantity:

Product Description

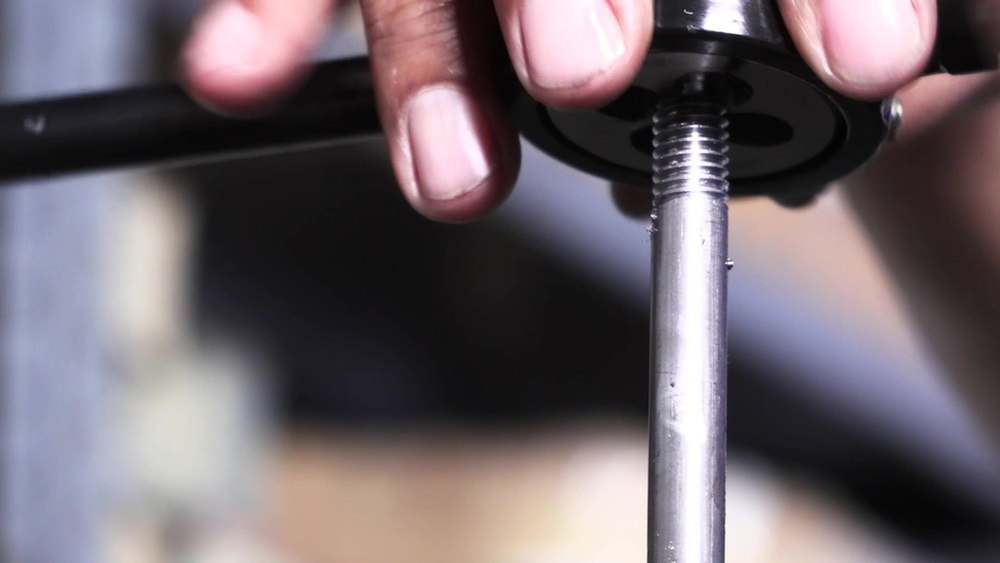

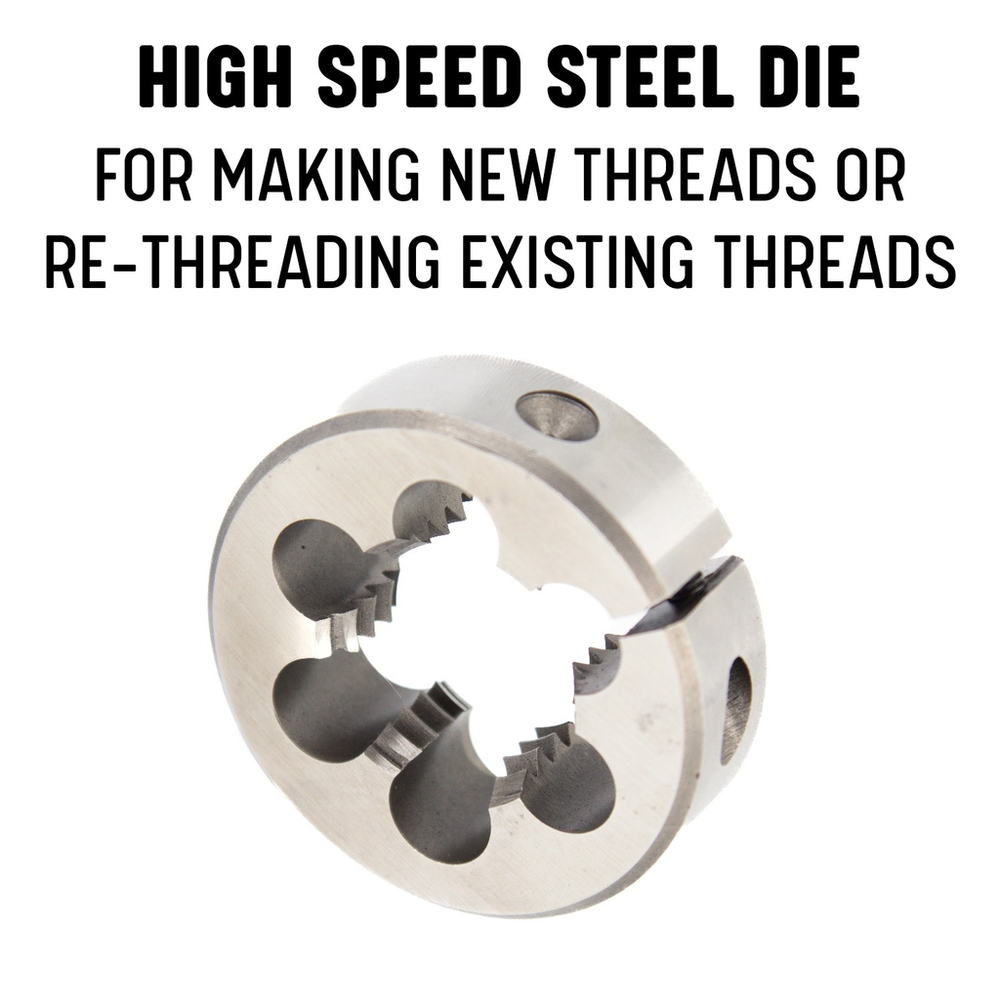

HSS Round Dies are for use in making new threads or re-threading existing threads. They are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance. Round dies are chamfered on both faces, one side has a 2 to 3 thread chamfer for threading and the other side has a 1 to 2 thread chamfer for threading close to a shoulder. Adjustments are made by a fine pitch screw which forces the sides of the die apart, or allows them to spring together. The slot is beveled so that when the dies are used in a machine holder the adjusting screw can be removed and adjustment made by the adjusting screws in the holder.

Features

Good for most general purpose applications, offering a combination of hardness and toughness for wear resistance
Round die is chamfered on both faces
The slot is beveled so that when the dies are used in a machine holder the adjusting screw can be removed and adjustment made by the adjusting screws in the holder
For use in making new threads or re-threading existing threads
One side has a 2 to 3 thread chamfer for threading, the other side has a 1 to 2 thread chamfer for threading close to a shoulder
Adjustment is obtained by a fine pitch screw which forces the sides of the die apart, or allows them to spring together

Prop 65

WARNING: This product contains Cobalt and/or Nickel and/or Lead a chemical known to the state of California to cause cancer, or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Specifications

Finish	Uncoated (Bright)
Thread Type	NPS
Size	3/8"-18
Material	High Speed Steel
Thread Size	3/8"
Corresponding Die Stock	2"
Outer Diameter	2"
Country of Origin	China
