3M Products & Supplies

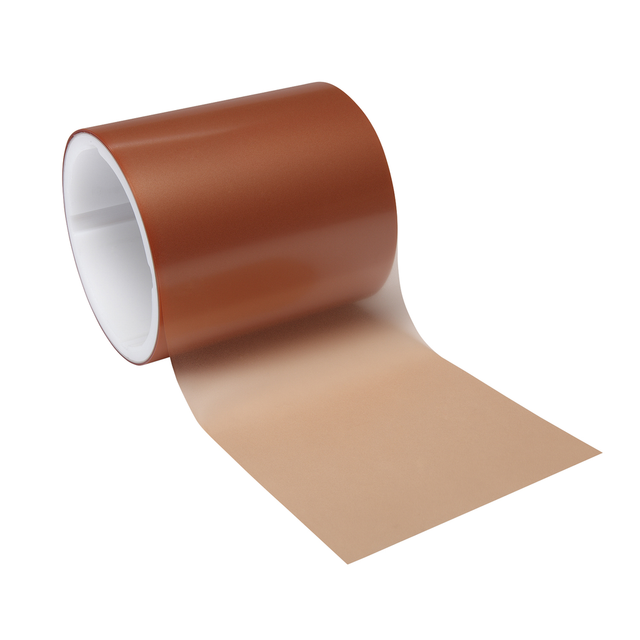

30MIC 663X DLF 3MIL 8in x 164ft x 3in ASO - 7100236809

SKU: 7100236809
MPN: 7100236809
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060903872
3M ID: 60000337828
5 Digit UPC: 90387
$12,878.82 each
Hurry up! Current stock:

Product Description

3M™ Diamond Lapping Film 663X has a stronger resin system that gives this product added toughness and longer life. Used primarily in superfinishing, roll polishing, and flat lapping applications. Available in 30.0, 45.0, and 60.0 micron grades.

Features

  • Uniform finish
  • Flat surface, low rounding
  • Increased durability
  • Available in rolls, discs and sheets
  • Long abrasive life minimizes abrasive changes
  • Fast cut
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Backing Thickness (Imperial)3.0
Overall Length (Imperial) UOMft
Product FormRoll
Abrasive MaterialDiamond
Overall Length (Metric) UOMm
Product ColorGreen
Overall Width (Metric) UOMmm
Overall Diameter (Metric)0.0
Backing Thickness (Metric) UOMmm
Overall Length (Metric)49.987
Product UsageFiber Optic Connectors
Micron Grade30 μm
Attachment TypePlain Back
Backing Thickness (Metric)0.076
Center Hole Diameter (Metric)0.0
Backing MaterialPolyester Film
Product Series663X
Overall Diameter (Imperial)0.0
ApplicationFlat Lapping; Polishing; Superfinishing
Backing Thickness (Imperial) UOMmil
Overall Width (Imperial) UOMin
Overall Width (Imperial)8.0
Center Hole Diameter (Imperial)0.0
Overall Length (Imperial)164.0
SubstrateCarbide; Ceramic; Composite; Exotic Alloy; Glass; Hardened Metal; Stone
Overall Width (Metric)203.2
