3M Products & Supplies

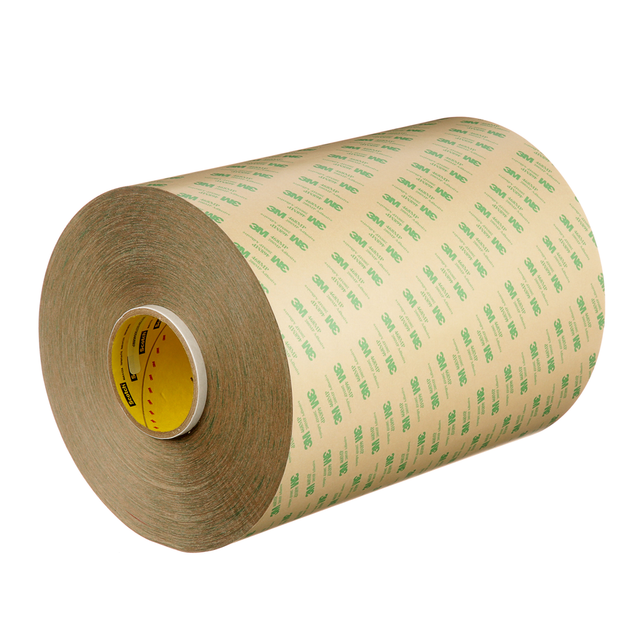

3M™ Adhesive Transfer Tape 468MP, Clear, 23 1/2 in x 180 yd, 5 mil, 1 Roll/Case - 7010311720

SKU: 7010311720
MPN: 7010311720
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200188336
3M ID: 70006075272
5 Digit UPC: 18833
$1,834.67 each
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 468MP offers outstanding adhesion on metal and high surface energy plastics. 3M™ High Performance Acrylic Adhesive 200MP delivers excellent shear strength to resist slippage and edge lifting. Temporarily repositionable for placement accuracy, this tape also performs well after exposure to humidity and hot/cold temperatures.

Features

  • 200MP acrylic adhesive is considered the industry standard for graphic attachment and general industrial joining applications
  • Delivers exceptional peel and shear strength for metals and HSE plastics
  • Thicker adhesives improve wet-out and adhesion on textured surfaces
  • Provides very high resistance to solvents and humidity
  • 58# polycoated kraft paper (PCK) liner offers a high strength bond for splicing and laminating applications
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Total Tape Thickness without Liner (Imperial) UOMmil
Number of Adhesive SidesDouble-sided
ApplicationBonding; Commerical Signs; Emblem Attachment; Large Surface Lamination Assembly; Mounting & Trim Attachment; Trim & Molding Attachment
Maximum Operating Temperature (Celsius)204.0
Shelf Life UOMMonth
Adhesive TypeHigh Performance Acrylic Adhesive 200MP
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Specifications MetUL 746C, UL 969
Total Tape Thickness without Liner (Imperial)5.0
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)400.0
Overall Length (Metric)164.59
Primary Liner ColorTan
Primary Liner Thickness (Imperial)4.2
IndustriesAppliance, Automotive, Consumer Goods, Converter Solutions, Electronics, Furniture, General Industrial, Point of Purchase, Signage, Specialty Vehicles, Transportation
Primary Liner Thickness (Imperial) UOMmil
Primary Liner Thickness (Metric) UOMmm
Units per Case1.0
Product CategoryAdhesives
Units per Case UOMRoll
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Metric)0.127
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Width (Metric) UOMmm
Primary Liner58# Polycoated Kraft Paper
Overall Length (Imperial)180.0
Overall Width (Metric)584.2
Overall Width (Imperial) UOMin
Primary Liner Thickness (Metric)0.11
Indoor/OutdoorIndoor/Outdoor
Overall Width (Imperial)23.0
Product ColorTransparent
Minimum Operating Temperature (Celsius)-40.0
Overall Length (Imperial) UOMyd
