3M Products & Supplies

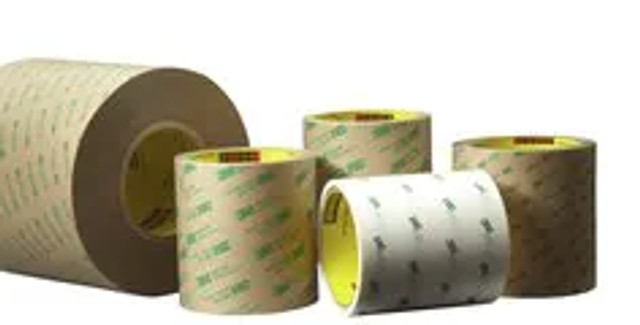

3M™ Adhesive Transfer Tape 9461P, Clear, 5 in x 50 yd, 1.16 mil, 4 Roll/Case - 7010380348

Sold As: 4-Pack
SKU: 7010380348
MPN: 7010380348
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200235092
3M ID: 70016057849
5 Digit UPC: 23509
$448.32 ($112.08 / Count)
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 9461P leverages the power of 3M™ High Temperature Acrylic Adhesive 100 to produce an excellent high temperature, high strength and chemical resistant bond suitable to the demands of aerospace, automotive and electronics markets. It provides low outgassing properties necessary to deliver optimal performance in demanding applications.

Features

  • Low outgassing properties benefit aerospace, automotive and electronics industries
  • 55# densified kraft paper release liner reduces edge burr in hand tool processing of metal plates
  • Transparent, double sided, 2 mil (0.05 mm) adhesive transfer tape offers a thin profile combined with high temperature acrylic adhesive for a long-lasting bond
  • Outstanding UV and chemical resistance for performance longevity
  • Short term temperature tolerance of up to 450 °F (232 °C)
  • High peel and shear strength creates bonds suitable for extreme conditions
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Primary Liner55# Densified Kraft Paper
Overall Width (Imperial)5.0
Total Tape Thickness without Liner (Metric) UOMmm
Units per Case4.0
IndustriesAerospace, Converter Solutions, Electronics, General Industrial, Military and Government, Oil & Gas, Specialty Vehicles, Transportation
Overall Length (Metric) UOMm
Minimum Operating Temperature (Fahrenheit)-40.0
Primary Liner Thickness (Imperial) UOMmil
Primary Liner Thickness (Imperial)3.5
Overall Length (Metric)45.72
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMyd
Overall Width (Metric) UOMmm
Overall Width (Metric)127.0
Overall Length (Imperial)50.0
Units per Case UOMRoll
Total Tape Thickness without Liner (Metric)0.025
Primary Liner ColorWhite
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial)1.0
Primary Liner Thickness (Metric) UOMmm
Overall Width (Imperial) UOMin
Primary Liner Thickness (Metric)0.09
Maximum Operating Temperature (Fahrenheit)450.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Adhesive TypeHigh Temperature Acrylic Adhesive 100
