3M Products & Supplies

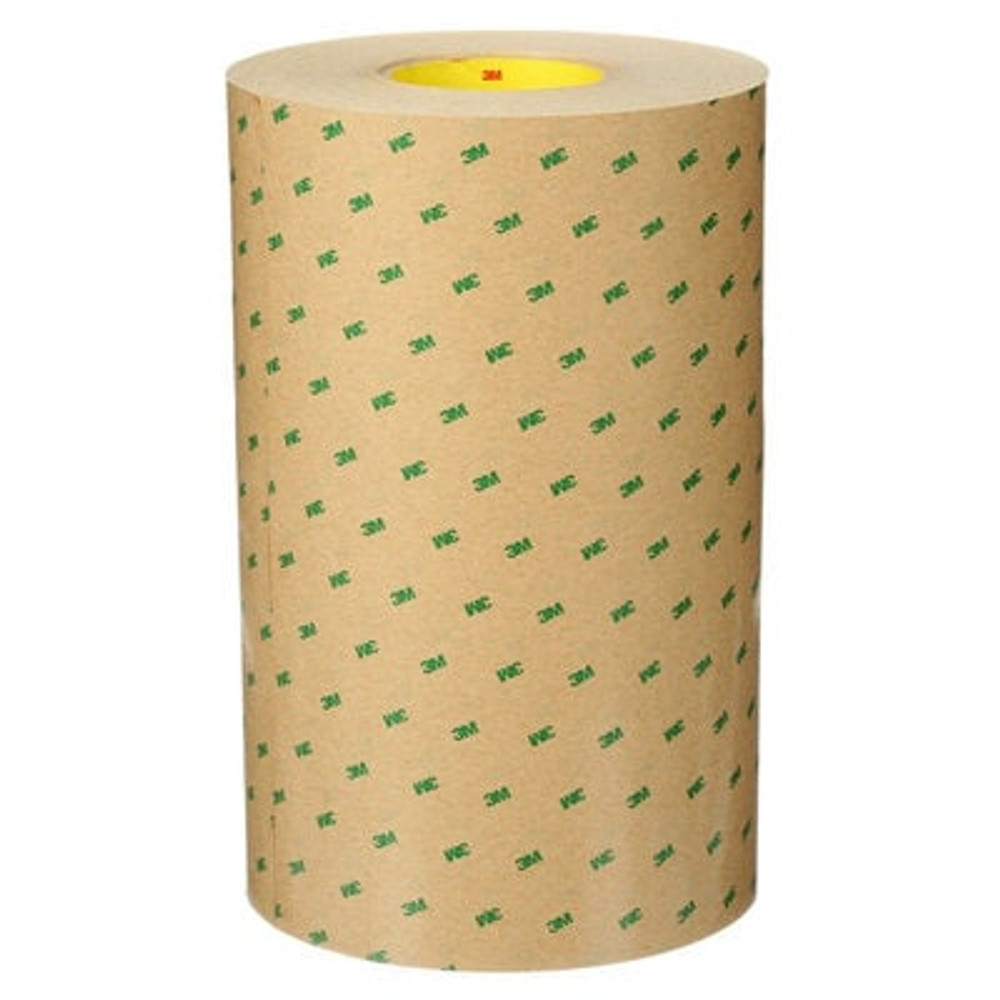

3M™ Adhesive Transfer Tape 9472, Clear, 2 1/2 in x 180 yd, 5 mil, Roll - 7010536086

Sold As: 18-Pack
SKU: 7010536086
MPN: 7010536086
Made to Order: For a lead time estimate, please send your request to [email protected]
3M ID: CY998788483
5 Digit UPC: #VALUE!
$5,805.62 ($322.53 / Count)
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 9472 offers excellent adhesion to a wide variety of textured surfaces, including LSE plastics and foam. It is often used as a general purpose transfer tape in a variety of surface bonding applications. This tape is the thicker version of our 3M™ Adhesive Transfer Tape 9471.

Features

  • High temperature resistance up to 250°F (121°C)
  • 5.0 mil acrylic adhesive bonds well to textured and rough surfaces
  • Offers very high initial adhesion for a wide variety of surface bonding
  • Excellent humidity, water, solvent, chemical and UV resistance
  • 60# Densified Kraft (DK) liner for ease in die-cutting operations
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Shelf Life UOMMonth
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Imperial) UOMin
Primary Liner60# Densified Kraft Paper
Total Tape Thickness without Liner (Metric)0.05
Maximum Operating Temperature (Celsius)121.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric)164.59
Primary Liner Thickness (Imperial) UOMnone
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)250.0
Primary Liner Thickness (Metric)0.09
Primary Liner Thickness (Metric) UOMmm
Overall Length (Metric) UOMm
Primary Liner Thickness (Imperial)3.5
Primary Liner ColorTan
IndustriesSignage, Specialty Vehicles
Overall Width (Imperial)2.5
Minimum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric)63.5
Indoor/OutdoorIndoor/Outdoor
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius)-40.0
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)5.12
Overall Length (Imperial)180.0
Overall Length (Imperial) UOMyd
Minimum Operating Temperature (Fahrenheit)-40.0
