3M Products & Supplies

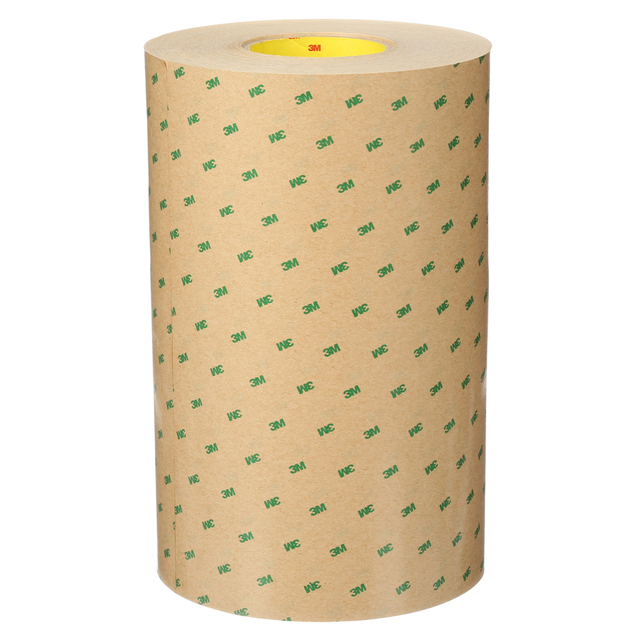

3M™ Adhesive Transfer Tape 9472, Clear, 23 1/4 in x 180 yd, 5 mil, 1 Roll/Case - 7010375312

SKU: 7010375312
MPN: 7010375312
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051115814587
3M ID: 70006763141
5 Digit UPC: 81458
$2,999.57 each
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 9472 offers excellent adhesion to a wide variety of textured surfaces, including LSE plastics and foam. It is often used as a general purpose transfer tape in a variety of surface bonding applications. This tape is the thicker version of our 3M™ Adhesive Transfer Tape 9471.

Features

  • 60# Densified Kraft (DK) liner for ease in die-cutting operations
  • Excellent humidity, water, solvent, chemical and UV resistance
  • Offers very high initial adhesion for a wide variety of surface bonding
  • High temperature resistance up to 250°F (121°C)
  • 5.0 mil acrylic adhesive bonds well to textured and rough surfaces
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Width (Metric) UOMmm
Indoor/OutdoorIndoor/Outdoor
Primary Liner Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)5.12
Shelf Life UOMMonth
Primary Liner60# Densified Kraft Paper
Primary Liner Thickness (Imperial) UOMnone
Maximum Operating Temperature (Celsius) UOMDegree
IndustriesSignage, Specialty Vehicles
Primary Liner ColorTan
Overall Length (Metric) UOMm
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Width (Imperial)23.25
Overall Length (Metric)164.59
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)121.0
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Celsius)-40.0
Overall Width (Metric)590.55
Maximum Operating Temperature (Fahrenheit)250.0
Minimum Operating Temperature (Celsius) UOMDegree
Primary Liner Thickness (Imperial)3.5
Adhesive TypeAcrylic
Primary Liner Thickness (Metric)0.09
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Metric)0.05
