3M Products & Supplies

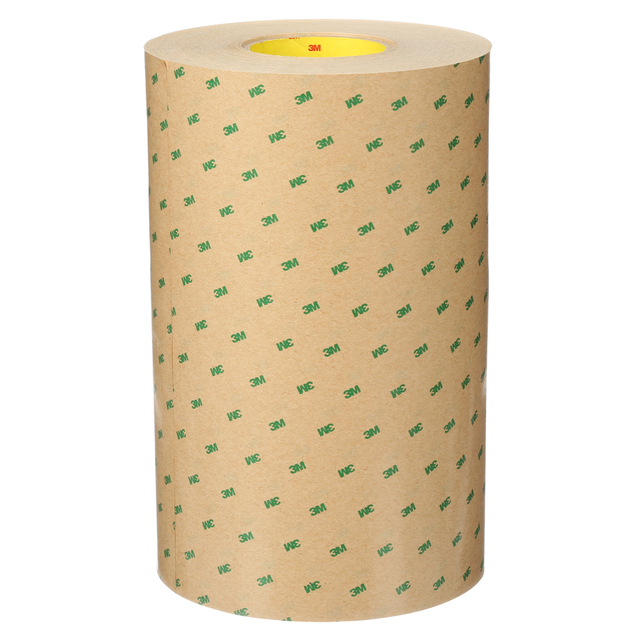

3M™ Adhesive Transfer Tape 9472, Clear, 23 3/4 in x 180 yd, 5 mil, Roll - 7010535834

Sold As: 2-Pack
SKU: 7010535834
MPN: 7010535834
Made to Order: For a lead time estimate, please send your request to [email protected]
3M ID: CY998785950
5 Digit UPC: #VALUE!
$6,128.15 ($3064.07 / Count)
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 9472 offers excellent adhesion to a wide variety of textured surfaces, including LSE plastics and foam. It is often used as a general purpose transfer tape in a variety of surface bonding applications. This tape is the thicker version of our 3M™ Adhesive Transfer Tape 9471.

Features

  • 5.0 mil acrylic adhesive bonds well to textured and rough surfaces
  • Excellent humidity, water, solvent, chemical and UV resistance
  • 60# Densified Kraft (DK) liner for ease in die-cutting operations
  • Offers very high initial adhesion for a wide variety of surface bonding
  • High temperature resistance up to 250°F (121°C)
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
IndustriesSignage, Specialty Vehicles
Primary Liner Thickness (Imperial) UOMnone
Maximum Operating Temperature (Fahrenheit) UOMDegree
Shelf Life UOMMonth
Overall Width (Metric)603.25
Indoor/OutdoorIndoor/Outdoor
Maximum Operating Temperature (Fahrenheit)250.0
Total Tape Thickness without Liner (Imperial)5.12
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)180.0
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Metric) UOMmm
Overall Length (Imperial) UOMyd
Primary Liner60# Densified Kraft Paper
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Metric) UOMm
Overall Width (Imperial)23.75
Maximum Operating Temperature (Celsius)121.0
Overall Width (Imperial) UOMin
Overall Length (Metric)164.59
Minimum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Metric)0.05
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius)-40.0
Minimum Operating Temperature (Fahrenheit)-40.0
Primary Liner ColorTan
Primary Liner Thickness (Imperial)3.5
Primary Liner Thickness (Metric) UOMmm
Primary Liner Thickness (Metric)0.09
