3M Products & Supplies

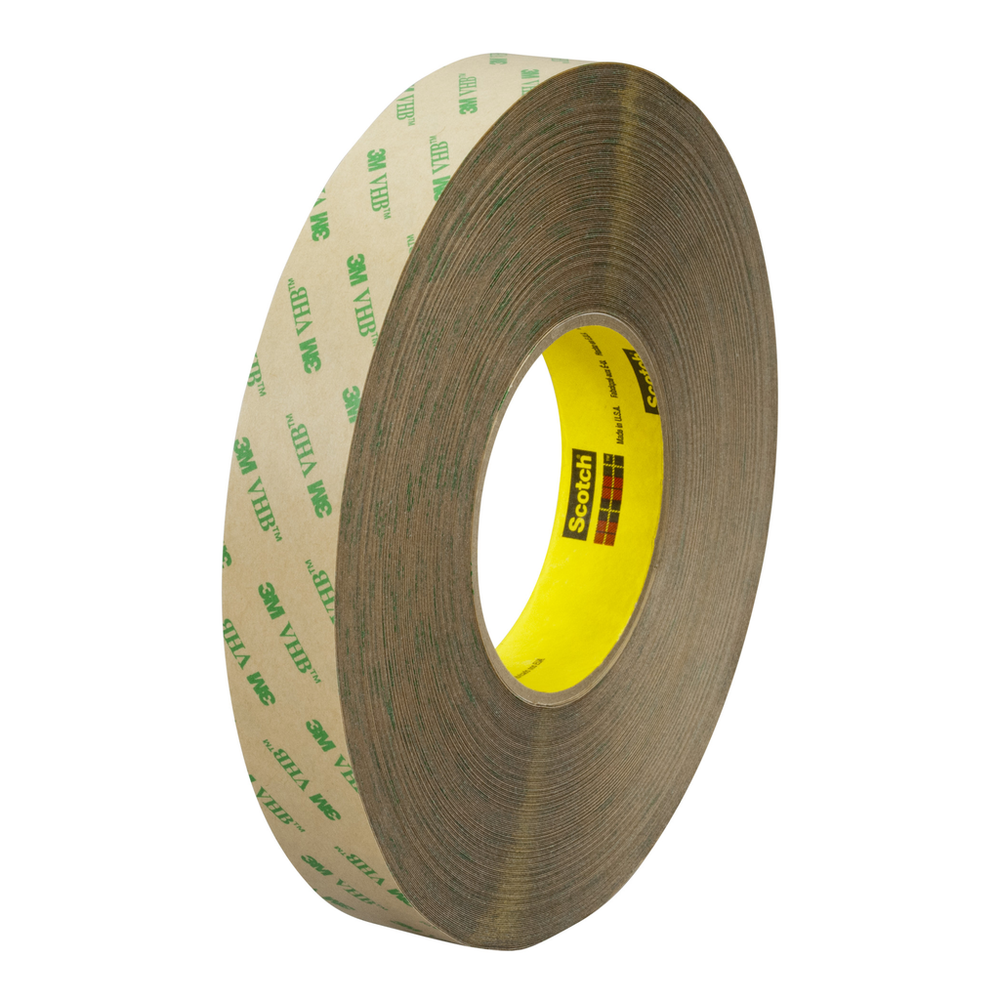

3M™ Adhesive Transfer Tape 9473PC, Clear, 12 in x 60 yd, 10 mil, 1 Roll/Case - 7010334397

SKU: 7010334397
MPN: 7010334397
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200407499
3M ID: 70006255486
5 Digit UPC: 40749
$1,403.02 each
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 9473PC is a thin, double sided tape capable of conforming to a wide variety of applications. Designed with 10 mil 3M™ High Performance Acrylic Adhesive 100MP, Adhesive Transfer Tape 9473PC establishes exceptional holding power and long-lasting adhesion for fast, strong results.

Features

  • Durable adhesive is chemical, UV and solvent resistant
  • Conforms to a variety of indoor and outdoor applications
  • Short term temperature tolerance of up to 500 °F (260 °C)
  • 58# unprinted polycoated kraft paper liner for moisture stability and easy die cutting
  • Transparent, double sided, 10 mil (0.26 mm) transfer tape offers a thin profile combined with our high strength acrylic adhesive for a long-lasting bond
  • Operating temperature tolerance of up to 300°F (149°C)
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Primary Liner58# Polycoated Kraft Paper
Maximum Operating Temperature (Fahrenheit)500.0
Overall Length (Imperial)60.0
Overall Length (Metric) UOMm
Overall Length (Metric)54.86
Primary Liner Thickness (Metric) UOMmm
Units per Case UOMRoll
Overall Width (Imperial)12.0
Units per Case1.0
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric)304.8
IndustriesAerospace, Appliance, Automotive, Construction, Converter Solutions, Electronics, General Industrial, MRO, Medical, Metalworking, Military and Government, Oil & Gas, Signage, Specialty Vehicles, Transportation, Woodworking
Indoor/OutdoorIndoor/Outdoor
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial)10.236
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric)0.25
Primary Liner ColorTan
Adhesive TypeHigh Temperature Acrylic Adhesive 100
Primary Liner Thickness (Imperial)4.2
Primary Liner Thickness (Metric)0.11
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius)260.0
Minimum Operating Temperature (Celsius)-40.0
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Primary Liner Thickness (Imperial) UOMmil
