3M Products & Supplies

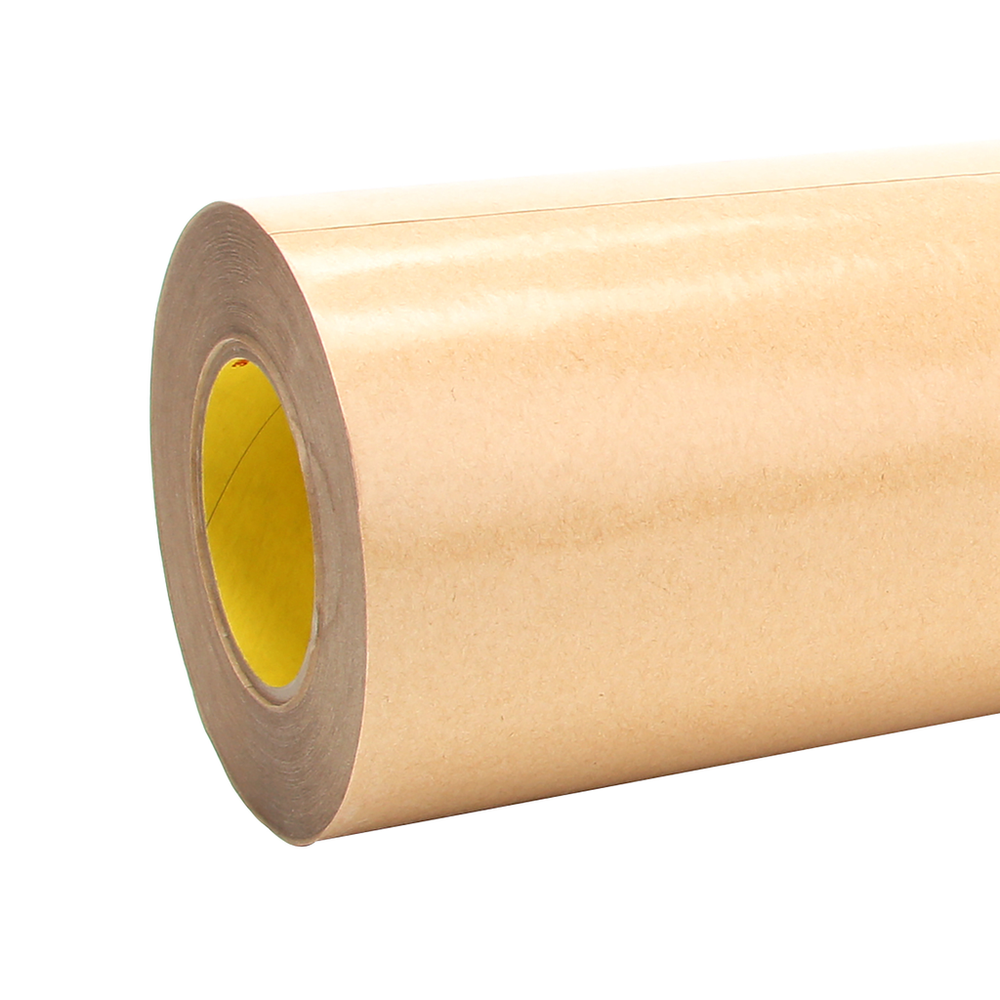

3M™ Adhesive Transfer Tape 950, Clear, 16 in x 60 yd, 5 Mil, 1/Case - 7010295147

SKU: 7010295147
MPN: 7010295147
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200117039
3M ID: 70006042504
5 Digit UPC: 11703
$833.12 each
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 950 is a 300 high strength acrylic adhesive on a 3.5 mil, 60 lb densified kraft paper liner.

Features

  • Used as a general purpose transfer tape for a variety of high tack, thin applications. Ideal for a wide variety of similar and dissimilar materials where an aggressive adhesive with high initial adhesion is desired. Splicing of film, foils, fabrics. Laminating foams, photos, fabrics, metal or plastic nameplates.
  • Good UV resistance. Good chemical resistance. Ideal for high surface energy (HSE) and low surface energy (LSE) materials.
  • 5.0 mil adhesive transfer tape. 60 lb densified kraft paper liner. For a wide variety of materials. 300 high strength acrylic adhesive. UL approved. Meets US government specification MIL-P-19834B, Amendment 1.
  • Thicker version of 927
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Product ColorTranslucent
Number of Adhesive SidesDouble-sided
Secondary Liner Thickness (Imperial)3.0
Overall Width (Imperial)16.0
Primary LinerGlassine Paper
Primary Liner Thickness (Metric)0.08
Primary Liner ColorTan
Minimum Operating Temperature (Celsius)-40.0
Secondary Liner ColorTan
Secondary Liner Thickness (Metric) UOMmm
IndustriesAppliance, Converter Solutions, Craft, Electronics, Furniture, General Industrial, Medical, Packaging, Paper, Point of Purchase, Print, Signage, Transportation, Woodworking
Total Tape Thickness without Liner (Imperial)5.0
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)250.0
Total Tape Thickness without Liner (Metric) UOMmm
Shelf Life UOMMonth
ApplicationBonding; Commerical Signs; Core Starting; Emblem Attachment; Flying splices for commercial printing; Gasket Assembly; Interior Gasket & Seal Attachment; Large Surface Lamination Assembly; Overlap Splice; Zero-Speed and General Splicing
Adhesive TypeHigh Strength Acrylic Adhesive 300
Overall Length (Imperial)60.0
Primary Liner Thickness (Imperial)3.2
Overall Width (Metric)406.4
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit)-40.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Specifications MetUL 969
Total Tape Thickness without Liner (Metric)0.127
Overall Length (Metric)54.86
Overall Width (Imperial) UOMin
Primary Liner Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Metric) UOMmm
Units per Case1.0
Backing (Carrier) Thickness (Metric)0.13
Overall Length (Metric) UOMm
Primary Liner Thickness (Imperial) UOMmil
Minimum Operating Temperature (Celsius) UOMDegree
Units per Case UOMRoll
Secondary Liner58# Polycoated Kraft Paper
Secondary Liner Thickness (Metric)0.07
Secondary Liner Thickness (Imperial) UOMmil
Indoor/OutdoorIndoor/Outdoor
Overall Length (Imperial) UOMyd
