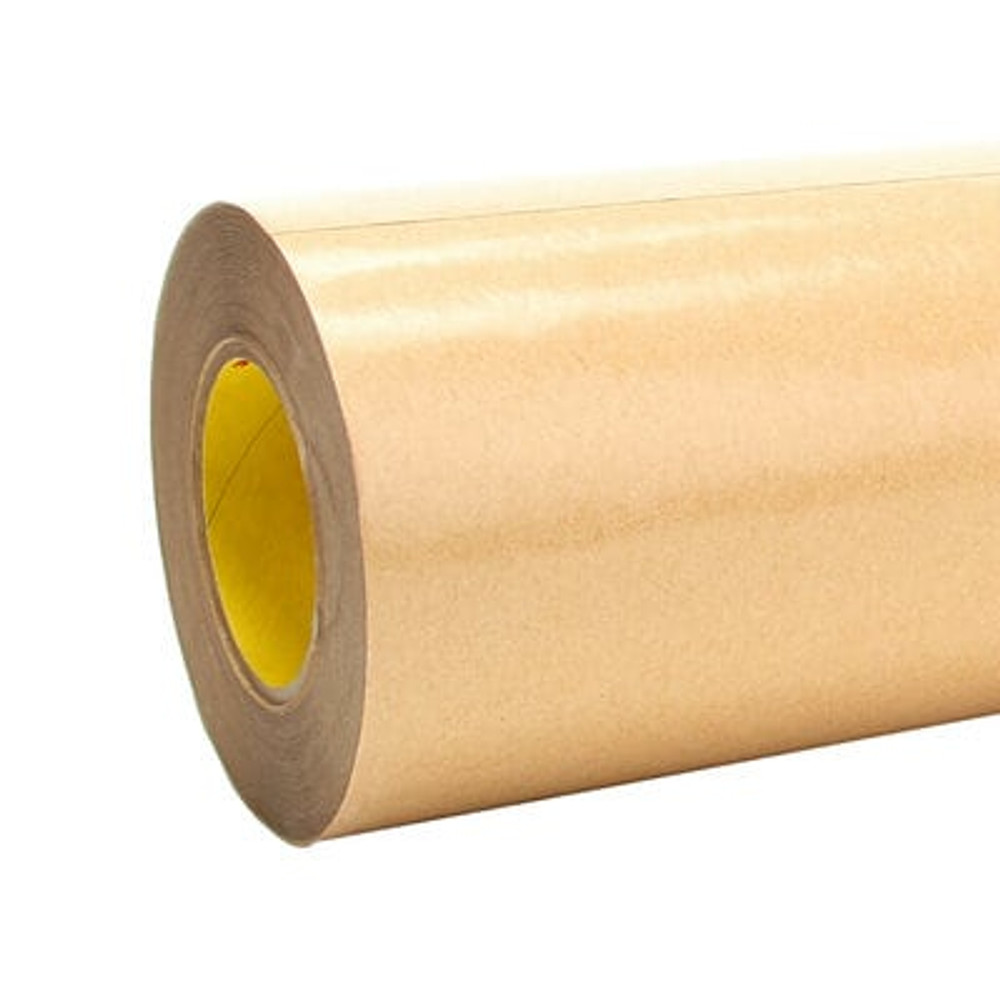

3M™ Adhesive Transfer Tape 950, Clear, 48 in x 180 yd, 5 mil, Roll - 7010535717

SKU: 7010535717
MPN: 7010535717
Made to Order: For a lead time estimate, please send your request to [email protected]
3M ID: CY998784789
5 Digit UPC: #VALUE!
$6,748.29 each
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape 950 is a 300 high strength acrylic adhesive on a 3.5 mil, 60 lb densified kraft paper liner.

Features

  • Good UV resistance. Good chemical resistance. Ideal for high surface energy (HSE) and low surface energy (LSE) materials.
  • Thicker version of 927
  • 5.0 mil adhesive transfer tape. 60 lb densified kraft paper liner. For a wide variety of materials. 300 high strength acrylic adhesive. UL approved. Meets US government specification MIL-P-19834B, Amendment 1.
  • Used as a general purpose transfer tape for a variety of high tack, thin applications. Ideal for a wide variety of similar and dissimilar materials where an aggressive adhesive with high initial adhesion is desired. Splicing of film, foils, fabrics. Laminating foams, photos, fabrics, metal or plastic nameplates.
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Minimum Operating Temperature (Celsius) UOMDegree
Secondary Liner Thickness (Metric)0.07
Backing (Carrier) Thickness (Metric)0.13
Overall Length (Metric)164.59
Backing (Carrier) Thickness (Metric) UOMmm
Primary Liner Thickness (Imperial) UOMmil
Primary LinerGlassine Paper
Total Tape Thickness without Liner (Imperial)5.0
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.127
Overall Width (Imperial)48.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Fahrenheit)250.0
Adhesive TypeHigh Strength Acrylic Adhesive 300
Overall Width (Metric) UOMmm
Shelf Life UOMMonth
Overall Width (Imperial) UOMin
Indoor/OutdoorIndoor/Outdoor
Primary Liner Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)-40.0
Specifications MetUL 969
Overall Length (Imperial) UOMyd
Number of Adhesive SidesDouble-sided
Secondary Liner Thickness (Metric) UOMmm
Primary Liner Thickness (Imperial)3.2
Secondary Liner Thickness (Imperial) UOMmil
Minimum Operating Temperature (Celsius)-40.0
Overall Length (Imperial)180.0
Overall Width (Metric)1219.2
Maximum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner ColorTan
IndustriesAppliance, Converter Solutions, Craft, Electronics, Furniture, General Industrial, Medical, Packaging, Paper, Point of Purchase, Print, Signage, Transportation, Woodworking
Primary Liner Thickness (Metric)0.08
Secondary Liner Thickness (Imperial)3.0
ApplicationBonding; Commerical Signs; Core Starting; Emblem Attachment; Flying splices for commercial printing; Gasket Assembly; Interior Gasket & Seal Attachment; Large Surface Lamination Assembly; Overlap Splice; Zero-Speed and General Splicing
Overall Length (Metric) UOMm
Secondary Liner58# Polycoated Kraft Paper
Product ColorTranslucent
Secondary Liner ColorTan
