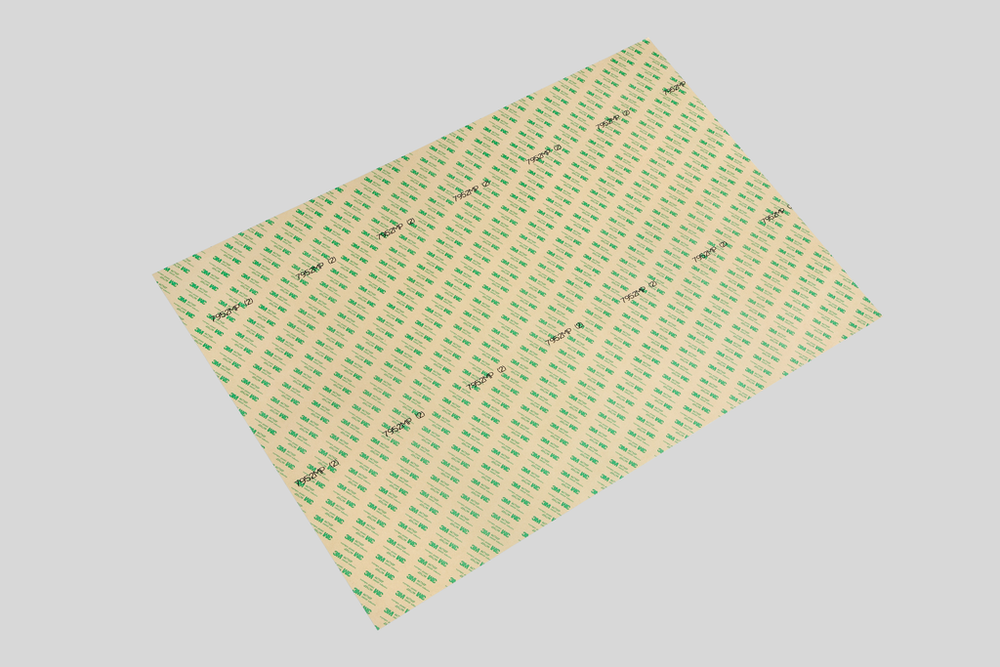

3M™ Adhesive Transfer Tape Double Linered 7952MP, Clear, 20 in x 27 in,2 mil, (100 sheets) Case - 7100032833

SKU: 7100032833
MPN: 7100032833
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 50021200190907
3M ID: 70016034624
5 Digit UPC: 19090
$649.31 each
Hurry up! Current stock:

Product Description

3M™ Adhesive Transfer Tape Double Linered 7952MP provides outstanding adhesion to metal and high surface energy plastics. 200MP adhesive delivers excellent shear strength to resist slippage and edge lifting. The tape is temporarily repositionable for placement accuracy. It also performs well after exposure to humidity and hot/cold temperatures. Double 58 lb. PCK liners add dimensional stability.

Features

  • 2 mil nominal adhesive tape delivers exceptional shear strength for metals and HSE plastics
  • 200MP acrylic adhesive is considered the industry standard for graphic attachment and general industrial joining applications
  • Temporarily repositionable adhesive improves placement accuracy, reducing rework
  • Provides very high resistance to solvents and humidity
  • Double 4.2 mil PCK layflat liner virtually eliminates curling, buckling and rippling
  • Special PCK layflat liner for increased dimensional stability in high humidity storage, processing, shipping and application conditions
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Minimum Operating Temperature (Celsius)-40.0
Adhesive TypeAcrylic
Overall Length (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Secondary Liner Thickness (Imperial)4.2
Total Tape Thickness without Liner (Metric)0.051
Overall Width (Imperial)20.0
Primary Liner Thickness (Metric)0.11
Units per Case UOMRoll
Secondary Liner ColorTan
Secondary Liner Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Imperial) UOMin
Overall Length (Metric)685.8
Secondary Liner Thickness (Metric)0.11
Overall Width (Metric) UOMmm
Secondary Liner Thickness (Imperial) UOMmil
Indoor/OutdoorIndoor/Outdoor
Primary Liner Thickness (Metric) UOMmm
Overall Length (Imperial)27.0
Shelf Life UOMMonth
Primary Liner ColorTan
Minimum Operating Temperature (Fahrenheit)-40.0
Maximum Operating Temperature (Fahrenheit)400.0
Total Tape Thickness without Liner (Imperial) UOMmil
IndustriesAerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, MRO, Medical, Metalworking, Military and Government, Point of Purchase, Print, Signage, Specialty Vehicles, Transportation, Woodworking
Primary Liner Thickness (Imperial) UOMnone
Maximum Operating Temperature (Celsius)204.0
Overall Width (Metric)508.0
Primary Liner58# Polycoated Kraft Paper
Total Tape Thickness without Liner (Imperial)2.0
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Secondary Liner58# Polycoated Kraft Paper
Units per Case100.0
Primary Liner Thickness (Imperial)4.2
Minimum Operating Temperature (Celsius) UOMDegree
