3M Products & Supplies

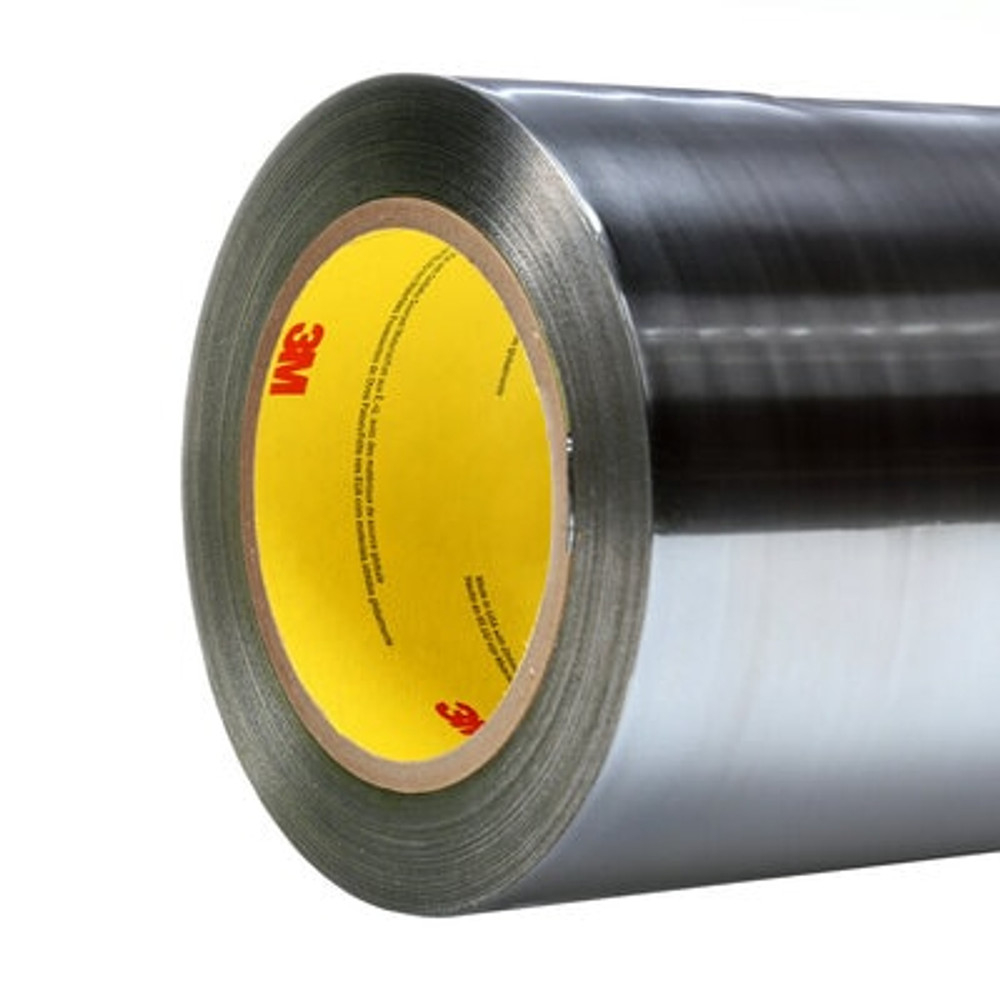

3M™ Aluminum Foil Tape 425, Silver, 1000 mm x 55 m, 4.6 mil, 1 Roll/Case - 7100053638

SKU: 7100053638
MPN: 7100053638
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051125855174
3M ID: 70008502596
5 Digit UPC: 85517
$1,657.87 each
Hurry up! Current stock:

Product Description

3M™ Aluminum Foil Tape 425 is the go-to foil tape for numerous applications across a broad range of industries. Comprised of a dead soft aluminum foil backing and coated with a highly engineered pressure sensitive acrylic adhesive, it is ideal for heat shielding, heat reflecting, chemical masking, light enhancement, chemical milling, seaming, sealing and de-paint operations.

Features

  • Highly engineered acrylic adhesive provides long term durability, but removes cleanly after harsh masking applications
  • Dead soft aluminum foil backing conforms to curved and uneven surfaces
  • Heat and light reflective tape protects surfaces and enhances lighting efficiency
  • Resistant to chemicals to protect surfaces during de-paint process and other chemical masking operations
  • Thermally conductive tape helps dissipate heat and improves heating and cooling efficiency to protect temperature sensitive materials
  • Withstands exposure to flame, weathering, moisture and UV
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) MaterialAluminum Foil
Product ColorSilver
Backing MaterialAluminum Foil
Maximum Operating Temperature (Celsius)149.0
Adhesive TypeAcrylic
Maximum Operating Temperature (Fahrenheit)300.0
Total Tape Thickness without Liner (Imperial) UOMmil
Tensile Strength (Metric) UOMN/100mm
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit)-65.0
Overall Width (Metric)1000.0
Overall Length (Metric) UOMm
Backing (Carrier) Thickness (Metric)0.07
Overall Width (Metric) UOMmm
Back Side Adhesive Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)4.6
Backing (Carrier) Thickness (Imperial)2.8
Back Side Adhesive Thickness (Imperial)1.8
Minimum Operating Temperature (Celsius)-54.0
Backing (Carrier) Thickness (Metric) UOMmm
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Shelf Life UOMMonth
Overall Length (Metric)55.0
Tensile Strength (Imperial) UOMlb/in
Specifications MetFAR 25.853(a), L-T-80C, SAE-AMS-T-23397
Back Side Adhesive Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Imperial) UOMmil
Maximum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Metric)49.0
Back Side Adhesive Thickness (Metric)0.05
Elongation at Break6
Overall Width (Imperial)39.37
Tensile Strength (Imperial)28.0
