3M Products & Supplies

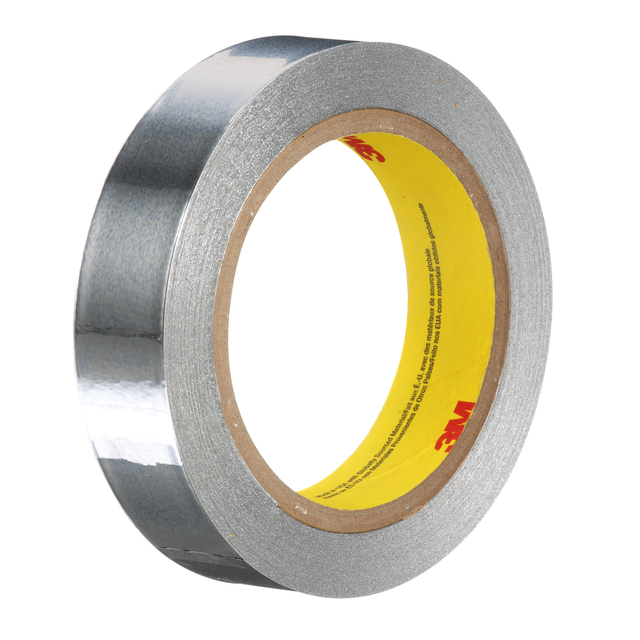

3M™ Aluminum Foil Tape 431, Silver, 75 mm x 55 m, 3.1 mil, 16 Rolls/Case - 7100230544

Sold As: 16-Pack
SKU: 7100230544
MPN: 7100230544
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060407868
3M ID: 70007545265
$2,990.39 ($186.90 / Count)
Hurry up! Current stock:

Product Description

The 3M™ Aluminum Foil Tape 431 is a high-performance foil tape designed for numerous applications across a broad range of industries. Comprised of a dead soft aluminum foil backing with a highly engineered pressure sensitive acrylic adhesive, it is ideal for heat shielding, heat reflecting, light enhancement, seaming and sealing.

Features

  • Classified by UL to UL 723, Class "L" for low flammability rating
  • Withstands exposure to flame, weathering, moisture and UV
  • Thermally conductive tape helps dissipate heat and improves heating and cooling efficiency to protect temperature sensitive materials
  • Dead soft aluminum foil backing conforms to curved and uneven surfaces
  • Heat and light reflective tape protects surfaces and enhances lighting efficiency
  • Highly engineered acrylic adhesive provides long term durability, but removes cleanly after harsh masking applications
Spec Sheet



Downloads

Specifications

Minimum Operating Temperature (Celsius) UOMDegree
Back Side Adhesive Thickness (Metric)0.05
Overall Width (Imperial)2.953
Overall Width (Metric) UOMmm
Specifications MetFAR 25.853(a)
Back Side Adhesive Thickness (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit) UOMDegree
Adhesive TypeAcrylic
Overall Length (Metric) UOMm
Product ColorSilver
Back Side Adhesive Thickness (Imperial)1.8
Primary LinerEasy Release Film
Maximum Operating Temperature (Celsius)149.0
Overall Length (Imperial)180.446
Backing (Carrier) MaterialAluminum Foil
Shelf Life730
Overall Length (Metric)55.0
Overall Width (Metric)75.0
Country of OriginUnited States
Shelf Life UOMnone
Tensile Strength (Imperial) UOMlb/in
Overall Length (Imperial) UOMft
Backing (Carrier) Thickness (Metric)0.05
Tensile Strength (Imperial)19.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)1.9
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Fahrenheit)-65.0
Backing MaterialAluminum Foil
Tensile Strength (Metric)33.3
Back Side Adhesive Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)300.0
Backing (Carrier) Thickness (Imperial) UOMmil
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius)-54.0
Tensile Strength (Metric) UOMN/100mm
