3M Products & Supplies

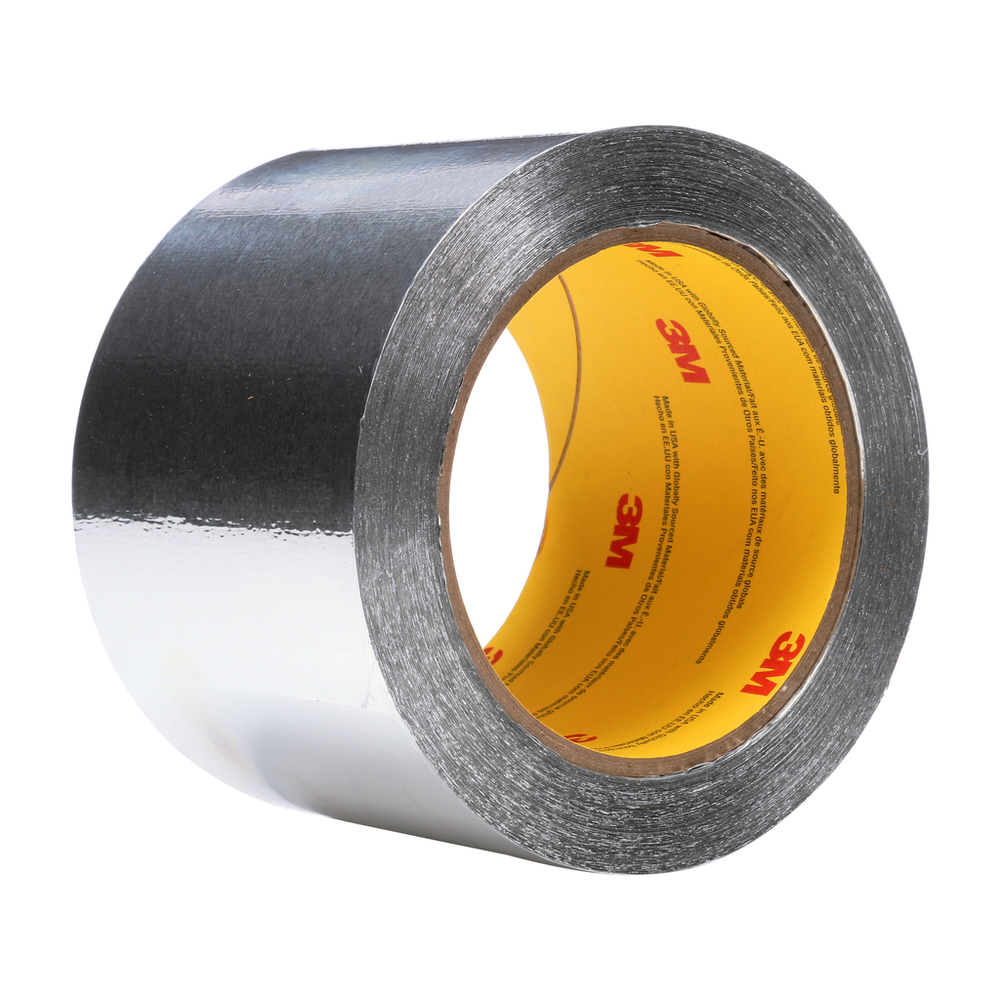

3M™ Aluminum Foil Tape 4380, Silver, 4 in x 60 yd, 3.25 Mil, 12 Rolls/Case - 7010295790

Sold As: 36-Pack
SKU: 7010295790
MPN: 7010295790
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138962975
3M ID: 70006396587
MPN: 4380
$2,908.60 ($80.79 / Count)
Hurry up! Current stock:

Product Description

3M™ Aluminum Foil Tape 4380 is a self-wound, general purpose, aluminum foil backed tape combined with a pressure sensitive acrylic adhesive. This tape is ideal for general purpose sealing, holding, splicing or masking applications requiring the protection from heat or flame offered by a foil backing.

Features

  • Low moisture vapor transmission rate offers excellent sealing and patching performance
  • Malleable foil conforms well to irregular shapes and surfaces
  • Thermally conductive tape reflects and dissipates radiant heat to protect heat sensitive components or surfaces
  • Conformable tape resists flame, moisture, weather, UV degradation and many chemicals
  • Good aging performance both indoors and outdoors
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Product ColorSilver
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)300.0
Overall Width (Metric) UOMmm
Overall Length (Metric) UOMm
Units per Case12.0
Overall Width (Imperial)4.0
Maximum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Imperial) UOMoz/in
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric)101.6
Backing (Carrier) Thickness (Metric)0.05
Overall Length (Imperial) UOMyd
Back Side Adhesive Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)2.0
Adhesive TypeAcrylic
Overall Width (Imperial) UOMin
Back Side Adhesive Thickness (Metric)0.05
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric)54.86
Tensile Strength (Imperial)160.0
Minimum Operating Temperature (Celsius)-34.0
Backing MaterialAluminum Foil
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Celsius)149.0
Tensile Strength (Metric)17.5
Backing (Carrier) Thickness (Metric) UOMmm
IndustriesAerospace, Appliance, Construction, Specialty Vehicles, Transportation
Elongation at Break4
Minimum Operating Temperature (Fahrenheit)-30.0
Overall Length (Imperial)60.0
Backing (Carrier) Thickness (Imperial) UOMmil
Tensile Strength (Metric) UOMN/100mm
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)3.3
Total Tape Thickness without Liner (Metric)0.08
