3M Products & Supplies

3M Betafine XL Series Filter Cartridge, 15 per case, XL30PP050B0A - 70020066703

Sold As: 15-Pack
SKU: 7100006948
MPN: 70020066703
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00016145090486
3M ID: 70020066703
5 Digit UPC: 9048
$2,365.11 ($157.67 / Count)
Hurry up! Current stock:

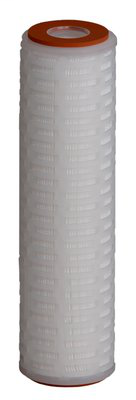

Product Description

Typical Applications

  • Reverse osmosis (RO) protection and pre-filtration
  • Solvent, bulk chemical, and process filtration
  • Machine tool lubrication, detergents, process and waste water

Overview

  • Our absolute-rated Betafine™ XL Filter Cartridge Series is made of a 100% polypropylene pleated filter featuring Advanced Pleat Technology (APT). This product is appropriate for use in a wide range of applications, including: food and beverage, industrial and electronics.
  • Pleated filters may offer a large gross surface area, but when the media is packed too tightly into the cartridge, only part of the surface area is usable – resulting in both flow restrictions and limited contaminant holding capacity. The "blind" or unusable area commonly occurs near the inside diameter, where the pleats are packed most tightly. The Betafine™ XL Filter Cartridge features our Advanced Pleat Technology (APT) design for extended service life. This design maximizes the useful surface area while maintaining open flow paths between media pleats.
  • 100% polypropylene materials of construction for chemical and thermal compatibility
  • The Betafine™ XL series filter cartridge features 100% polypropylene construction that provides chemical and thermal compatibility in many demanding process fluid applications. The filter media is constructed from continuous micro-fibers that provide a uniform matrix.
  • Available in a range of integral lengths from 9 ¾ to 40 inches, with a wide selection of end treatments to fit common filter housing designs
  • Absolute-rated cartridge filter available in nine distinct filter grades
  • There are nine distinct absolute-rated filter grades, beginning at 70 microns, ranging to the very fine 0.2 micron rating. Our Betafine XL filters are absolute-rated to Beta 1000 (99.9% efficiency at each respective rating). Additionally, filters come in a range of integral lengths from 9 ¾ to 40 inches with a wide selection of end treatments to fit common filter housing designs.

Specifications

Length (Metric)76.2 cm
IndustriesLife Sciences
Filter TypeFilter Cartridge
Factory Integrity TestedNo
Gasket/O-ring MaterialSilicone
Filter MaterialUniform Density Polypropylene
End Modification226 O-ring & Spear, No Reinforcing Ring
SeriesBetafine™ XL Series
Micron Rating5
BrandBetafine™
Length30 Inch
