3M Products & Supplies

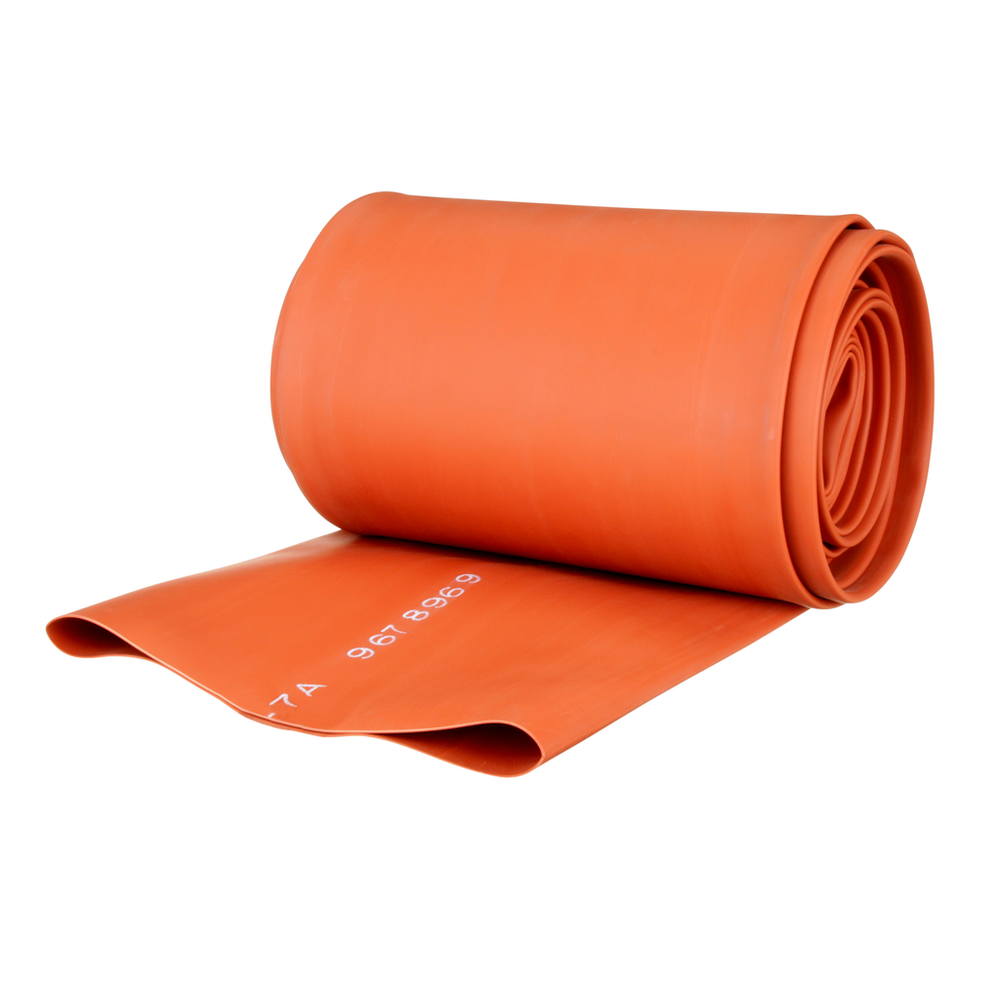

3M™ Bus Bar Heat Shrink Tubing BBI-7A-50': O.D. 6.78 in (172 mm) - 2.55 in (65 mm), Rated from 5 kV - 35 kV, 50 feet/case - 7100025927

Sold As: 50-Pack
SKU: 7100025927
MPN: 7100025927
For an accurate lead time please contact us
UPC: 00051135357354
3M ID: 80610753933
5 Digit UPC: 35735
$3,517.08 ($70.34 / Count)
Hurry up! Current stock:

Product Description

3M™ Bus Bar Heat Shrink Tubing BBI is a flame retardant tubing that provides reliable protection and insulation for 5 to 35 kV rated applications. The cross linked polyolefin construction is split and solvent resistant while offering good tracking resistance. It offers a tight fit for rectangular, square or round bus bars.

Features

  • For use with substation switchgear
  • For inline bolted connections of rectangular bus bars
  • For copper or aluminium bus bars
  • For use on metal-enclosed bus bar
  • For rectangular, square and round bus bars
  • For use in metal-clad switchgear
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Expanded Wall Thickness UOMin
Product TechnologyHeat Shrink
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMft
Inner Diameter Before Shrink (Metric)330.0
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Imperial)50.0
Maximum Operating Temperature (Fahrenheit)230.0
Minimum Expanded Tubing I. D. UOMin
Square Size(2-1/2 x 2-1/2) Inch (for 25 kV)
Overall Length (Metric) UOMm
Overall Length (Metric)15.24
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
ShapeRectangular
Inner Diameter After Shrink (Metric) UOMmm
Halogen FreeNo
ModelHeat-shrink
Product TypeBus Bar Tubing
Splice TypeHeat Shrink
Maximum Recovered Tubing I. D.2.55
Maximum Operating Temperature (Celsius) UomDegree
Solutionconstructionbus
Inner Diameter After Shrink (Imperial) UOMin
Product ColorOrange, Red
Rectangular Size(4 x 1/4) to (4 x 3/4) Inch (for 35 kV)
Inner Diameter After Shrink (Metric)210.0
Expanded Wall Thickness0.048
Heat Shrink TypeHeavy-Duty Heat Shrink Tubing
Maximum Operating Temperature (Celsius)110.0
Maximum Recovered Tubing I. D. UOMin
Inner Diameter After Shrink (Imperial)8.28
Recovered Wall Thickness0.13
Voltage15 kV
Units per Case1.0
MaterialPolyolefin
Inner Diameter Before Shrink (Imperial) UOMin
Minimum Expanded Tubing I. D.6.78
UL ApprovalNo
Inner Diameter Before Shrink (Imperial)13.0
Recovered Wall Thickness UOMin
