3M Products & Supplies

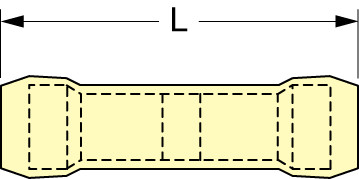

3M™ Butt Connector, Nylon Insulated w/Insulation Grip 16-14 AWG, 94787, 62-NB - 7010397397

Sold As: 10-Pack
SKU: 7010397397
MPN: 7010397397
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007947875
3M ID: 80611252877
MPN: 94787
$514.76 ($51.48 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 16-14 AWG and case quantities of 500 per case.

Features

  • Maximum Temperature Range of 900 degrees F (482 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of nickel-plated, annealed steel
  • Built-in wire stop for correct positioning
  • RoHS 2011/65/EU Compliant

Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Metric)1.5 mm²
Maximum Conductor Size (Metric)2.5 mm²
Minimum Conductor Size (Imperial)16 AWG
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Conductor Size (Imperial)14 AWG
Insulation MaterialNylon
Body MaterialCopper Alloy
Connector TypeButt
Connection Width (Metric)0.0
Connection Width (Imperial)0.0
Maximum Insulation Outer Diameter (Metric)0.0
Terminal TypeButt Connectors
