3M Products & Supplies

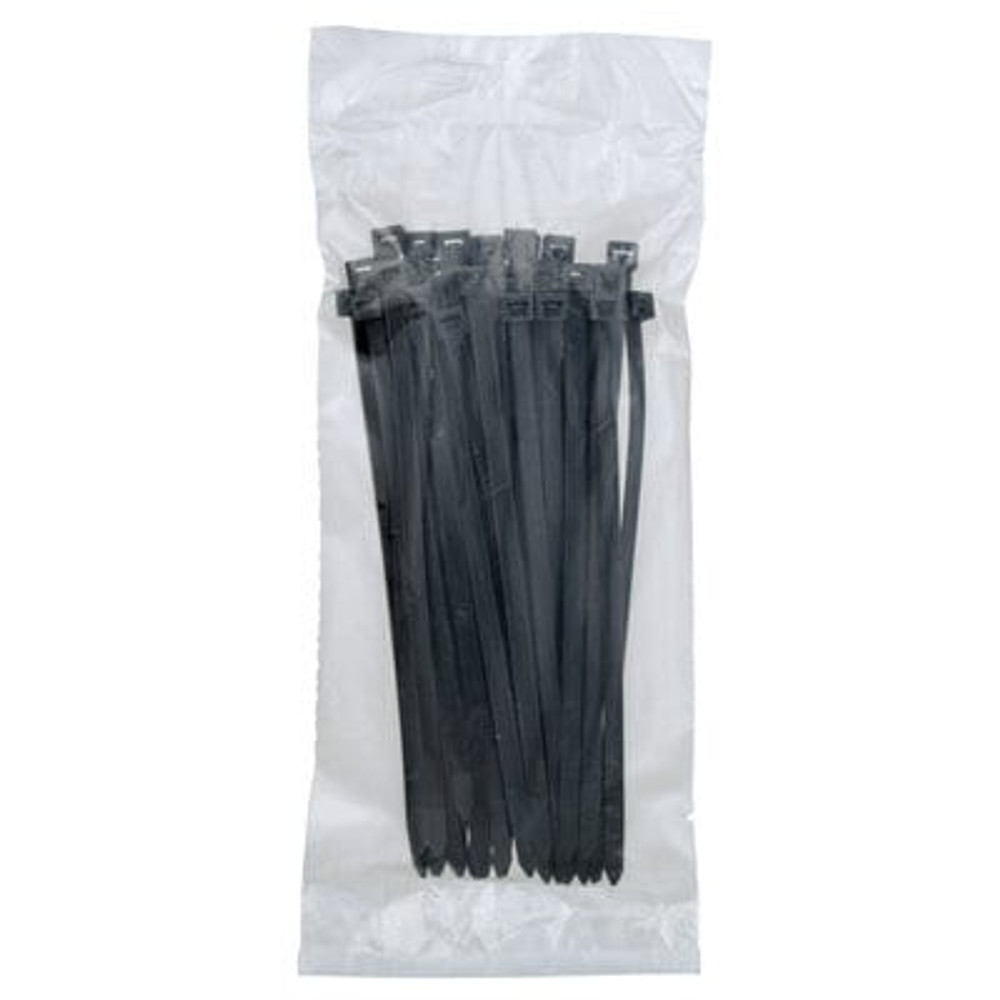

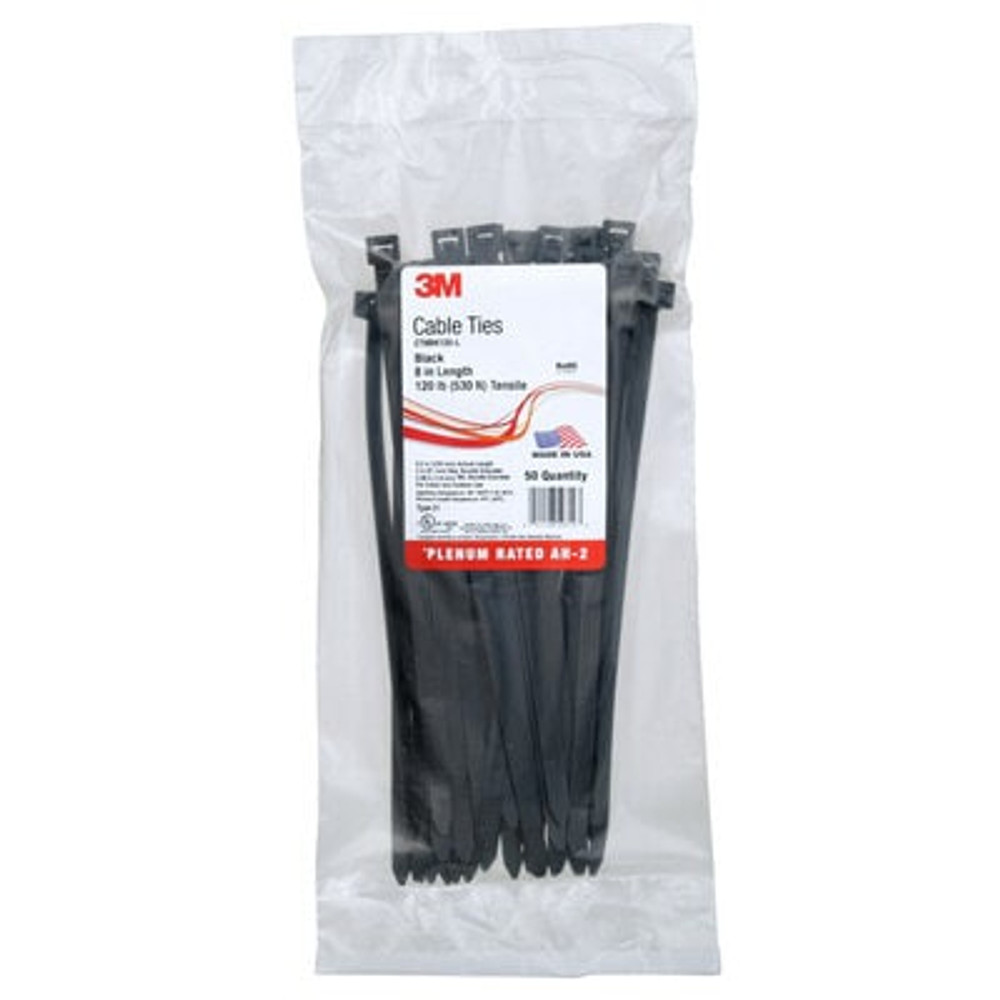

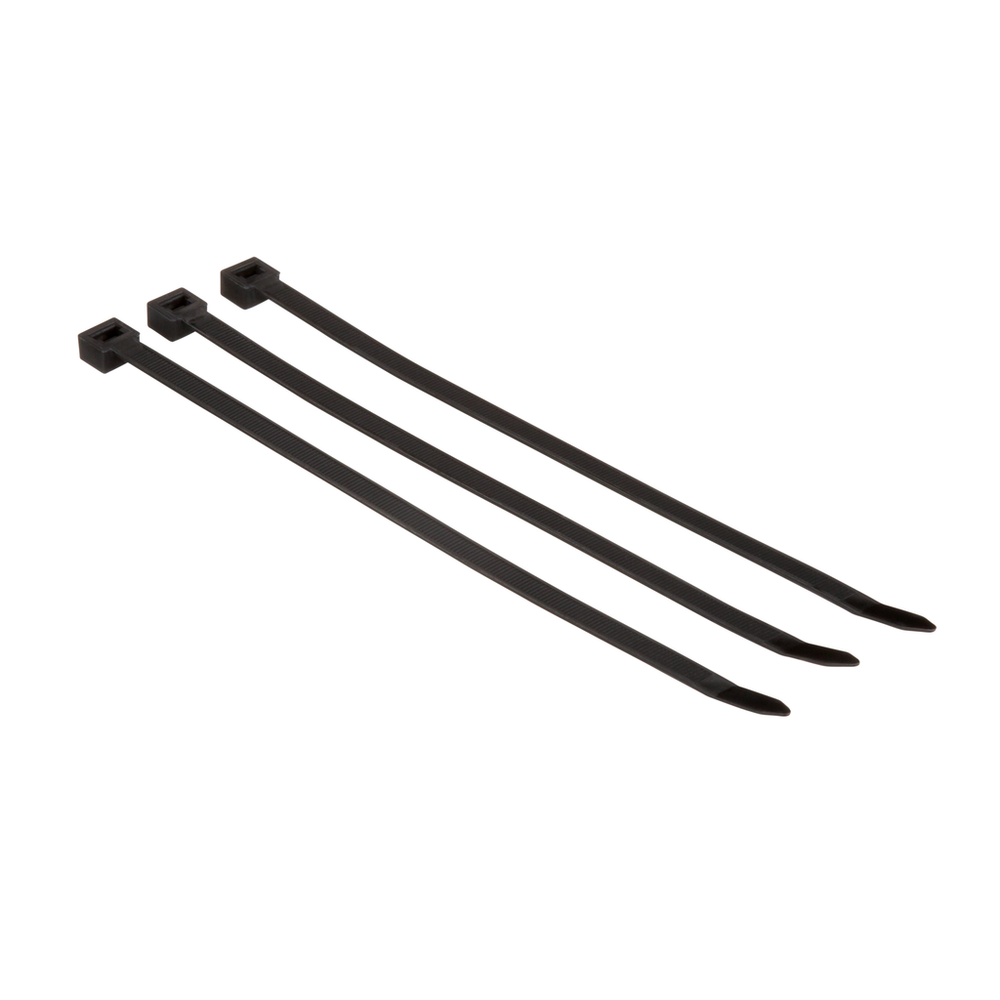

3M™ Cable Tie CT8BK120-L, 500/Case - 7000133464

Sold As: 500-Pack
SKU: 7000133464
MPN: 7000133464
For an accurate lead time please contact us
UPC: 10051128593100
3M ID: 80611469695
5 Digit UPC: 59310
$120.98 ($0.24 / Count)
Hurry up! Current stock:

Product Description

3M™ Standard Nylon Cable Ties are made with high-quality nylon 6/6 and designed to secure wire bundles and harness components quickly, without slipping. The curved tip allows for faster threading and installation, and they feature a self-locking head.

Features

  • UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces
  • Curved tip allows for faster threading and installation
  • Secure wire bundles and harness components quickly, without slipping
Spec Sheet



Downloads

Specifications

Country of OriginHonduras
Product TypeCable Ties
Operating Temperature Range (Celsius)-40 °C to 85 °C
MaterialNylon 6/6
Maximum Operating Temperature (Celsius)85.0
Minimum Installation Temperature (Celsius)-20 Degree Celsius
Maximum Operating Temperature85 Degree Celsius
Maximum Bundle Diameter2 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Metric) UOMmm
Package Quantity50.0
Maximum Insulation Outer Diameter (Metric)3.7
UL ApprovalYes
Cable Length (Metric) UOMmm
Units per Case500.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial)0.298
Cable Length (Imperial)8.0
Minimum Operating Temperature (Fahrenheit)-40.0
Cable Tie Length UOMmm
Maximum Recommended Voltage Rating600.0
Maximum Bundle Diameter (Metric)102.0
Halogen FreeYes
Package Quantity UOMEACH
Overall Length (Metric)229.0
Maximum Insulation Outside Diameter0.145 in
Cable Tie Base Height9 in
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial) UOMin
Cable Length (Imperial) UOMin
Minimum Bundle Diameter (Metric)4.8 mm
UV ResistantYes
Minimum Bundle Diameter0.1875 Inch
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric) UOMmm
Cable Tie Length399.0
ApplicationSecure wire bundling
Operating Temperature Range (Fahrenheit)-40 °F to 185 °F
Operating Temperature (Fahrenheit)185 Degree Fahrenheit
Product ColorBlack
Cable Length (Metric)228.6
Maximum Operating Temperature (Fahrenheit)185.0
Plenum RatedYes
VG ApprovalNo
Minimum Operating Temperature (Fahrenheit) UOMDegree
Operating Temperature (Celsius)85 Degree Celsius
Overall Length (Imperial) UOMin
Tensile Strength (Metric) UOMkg
Cable Diameter Range8,1 - 39,4 mm
Overall Length (Imperial)9.0
Minimum Operating Temperature (Celsius)-40.0
Solution forLonghaul/Metro Loop Network: CO/POP
MIL ApprovalNo
Overall Width (Metric)7.6
Tensile Strength (Metric)54.43
Solvable FastenerNo
Maximum Bundle Diameter (Metric) UOMmm
Maximum Recommended Voltage Rating UOMV
Units per bag500
Cable Management ProductsCable Ties
Maximum Insulation Outer Diameter (Metric) UOMmm
Tape TypeBarricade
Flammability RatingUL 94 V-2
TypeStandard
