3M Products & Supplies

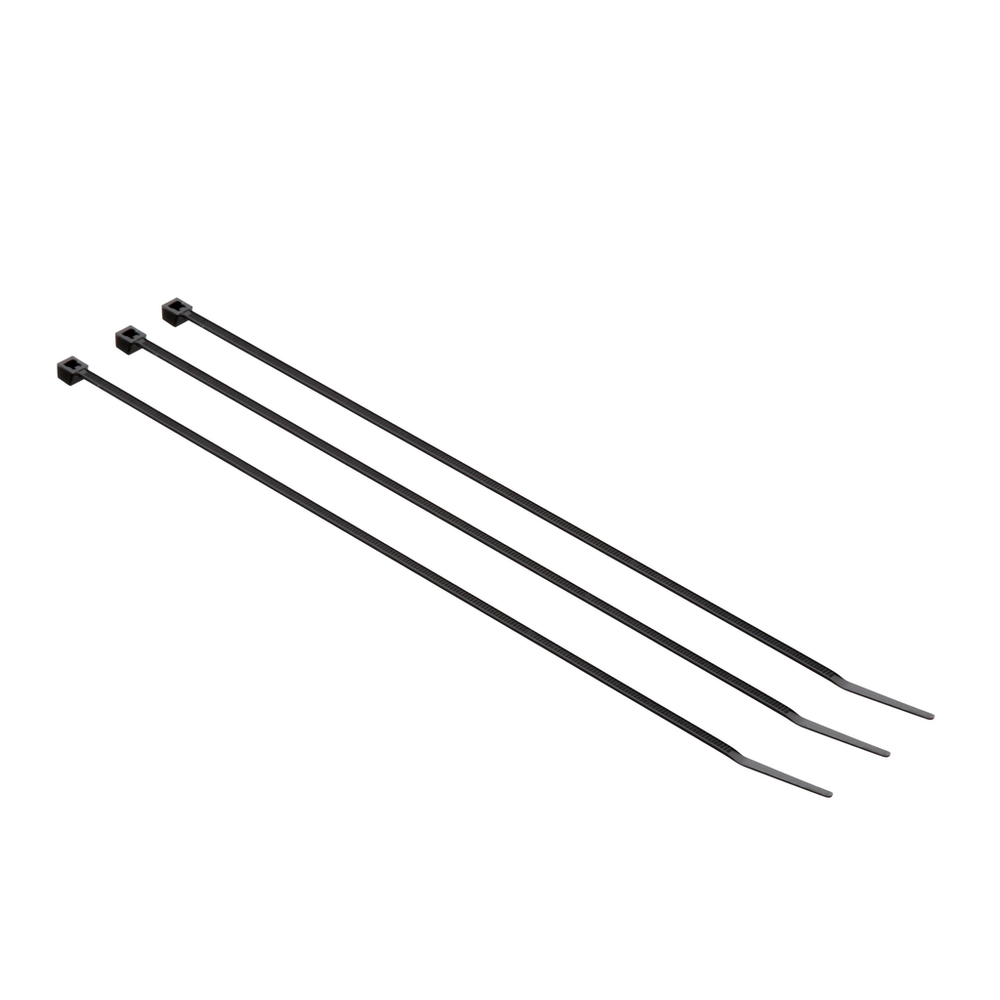

3M™ Cable Tie CT8BK18-C, 1000/Case - 7010398268

Sold As: 1000-Pack
SKU: 7010398268
MPN: 7010398268
For an accurate lead time please contact us
UPC: 00051128592809
3M ID: 80611469398
5 Digit UPC: 59280
$56.93 ($0.06 / Count)
Hurry up! Current stock:

Product Description

3M™ Standard Nylon Cable Ties are made with high-quality nylon 6/6 and designed to secure wire bundles and harness components quickly, without slipping. The curved tip allows for faster threading and installation, and they feature a self-locking head.

Features

  • UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces
  • Curved tip allows for faster threading and installation
  • Secure wire bundles and harness components quickly, without slipping
Spec Sheet



Downloads

Specifications

Country of OriginHonduras
Overall Width (Metric)2.4
Cable Length (Imperial)8.0
MIL ApprovalNo
Maximum Bundle Diameter (Metric)51.0
Solvable FastenerNo
Maximum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Metric)8.17
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Celsius)85.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Halogen FreeYes
Units per Case1000.0
Cable Length (Metric)205.74
Maximum Bundle Diameter (Metric) UOMmm
Overall Length (Imperial)8.1
ApplicationSecure wire bundling
Maximum Insulation Outer Diameter (Metric)3.7
Tape TypeBarricade
Flammability RatingUL 94 V-2
Overall Length (Metric) UOMmm
Maximum Insulation Outer Diameter (Metric) UOMmm
Cable Length (Metric) UOMmm
UV ResistantYes
Cable Diameter Range8,1 - 39,4 mm
Maximum Recommended Voltage Rating UOMV
Minimum Installation Temperature (Celsius)0 Degree Celsius
Operating Temperature (Celsius)85 Degree Celsius
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial) UOMin
Maximum Insulation Outside Diameter0.145 in
Operating Temperature Range (Fahrenheit)-40 °F to 185 °F
VG ApprovalNo
Minimum Operating Temperature (Fahrenheit)-40.0
Maximum Operating Temperature (Celsius) UOMDegree
Cable Length (Imperial) UOMin
Minimum Operating Temperature (Celsius)-40.0
Maximum Operating Temperature (Fahrenheit)185.0
TypeStandard
Maximum Operating Temperature85 Degree Celsius
Plenum RatedYes
Overall Length (Metric)206.0
Solution forLonghaul/Metro Loop Network: Outdoor
Overall Width (Imperial) UOMin
UL ApprovalYes
Package Quantity UOMEACH
Maximum Recommended Voltage Rating600.0
Cable Management ProductsCable Ties
Operating Temperature Range (Celsius)-40 °C to 85 °C
Overall Width (Metric) UOMmm
Tensile Strength (Metric) UOMkg
Maximum Bundle Diameter2 Inch
Product TypeCable Ties
MaterialNylon 6/6
Minimum Bundle Diameter0.0625 Inch
Product ColorBlack
Package Quantity100.0
Minimum Bundle Diameter (Metric)1.6 mm
Overall Width (Imperial)0.096
Operating Temperature (Fahrenheit)185 Degree Fahrenheit
