3M Products & Supplies

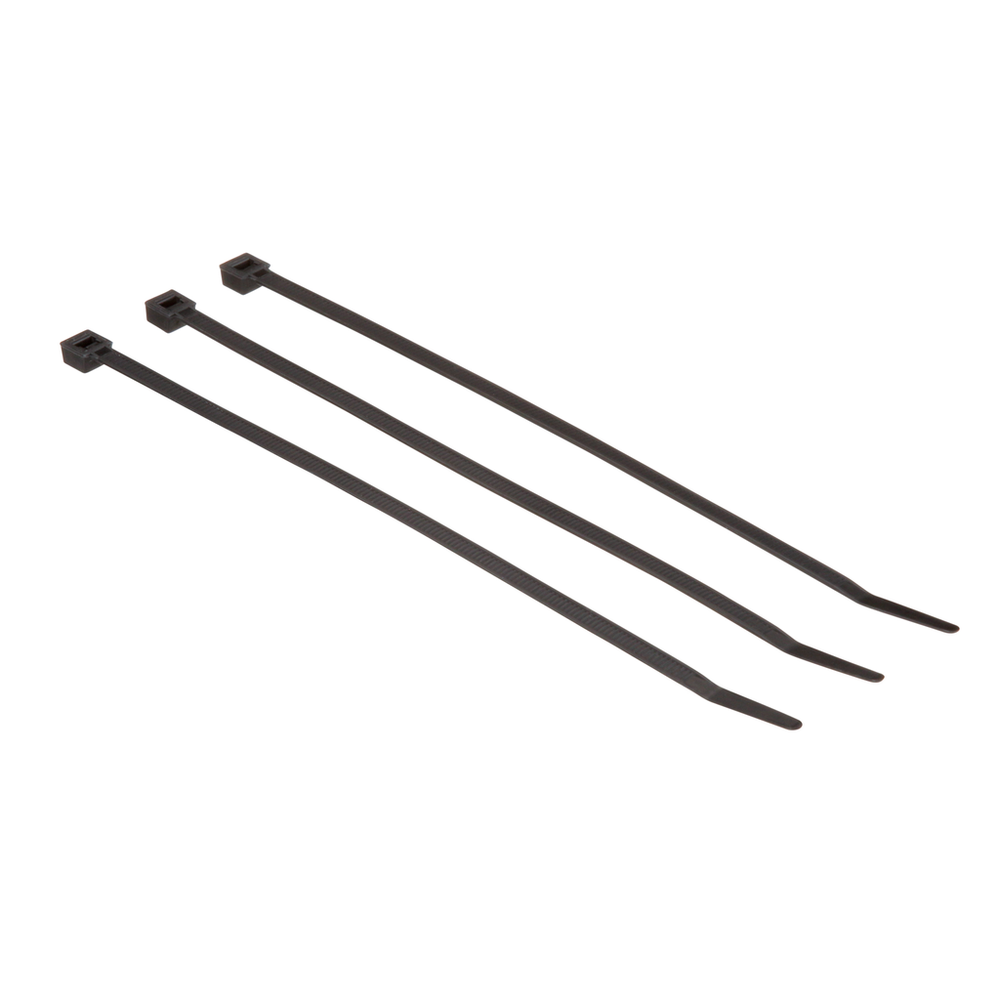

3M™ Cable Tie CT8BK50-C, 1000/Case - 7000031853

Sold As: 1000-Pack
SKU: 7000031853
MPN: 7000031853
For an accurate lead time please contact us
UPC: 00051128592939
3M ID: 80611469521
5 Digit UPC: 59293
$60.65 ($0.06 / Count)
Hurry up! Current stock:

Product Description

3M™ Standard Nylon Cable Ties are made with high-quality nylon 6/6 and designed to secure wire bundles and harness components quickly, without slipping. The curved tip allows for faster threading and installation, and they feature a self-locking head.

Features

  • Curved tip allows for faster threading and installation
  • Secure wire bundles and harness components quickly, without slipping
  • UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces
Spec Sheet



Downloads

Specifications

Country of OriginHonduras
Solution forLonghaul/Metro Loop Network: Outdoor
Overall Width (Imperial) UOMin
Tensile Strength (Metric)22.68
Cable Tie TypeStandard
Overall Length (Imperial) UOMin
MaterialNylon 6/6
Overall Width (Metric) UOMmm
Minimum Installation Temperature (Celsius)-20 Degree Celsius
Maximum Bundle Diameter (Metric) UOMmm
Cable Length (Imperial)8.0
Cable Tie Length193.0
Package Quantity100.0
MIL ApprovalNo
Operating Temperature (Fahrenheit)185 Degree Fahrenheit
Overall Length (Imperial)7.6
Operating Temperature (Celsius)85 Degree Celsius
Package Quantity UOMEACH
Operating Temperature Range (Celsius)-40 °C to 85 °C
TypeStandard
Cable Tie Base Height8 in
Maximum Insulation Outside Diameter0.145 in
Solvable FastenerNo
Cable Length (Metric)193.04
Halogen FreeYes
Overall Length (Metric) UOMmm
Maximum Recommended Voltage Rating600.0
Plenum RatedYes
Product ColorBlack
Cable Diameter Range8,1 - 39,4 mm
Maximum Operating Temperature (Celsius)85.0
Maximum Bundle Diameter1.87 Inch
Operating Temperature Range (Fahrenheit)-40 °F to 185 °F
Minimum Operating Temperature (Celsius) UOMDegree
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Operating Temperature (Celsius)-40.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Metric) UOMkg
Minimum Operating Temperature (Fahrenheit)-40.0
Product TypeCable Ties
Maximum Operating Temperature85 Degree Celsius
Minimum Bundle Diameter (Metric)1.6 mm
Units per Case1000.0
Cable Management ProductsCable Ties
Tape TypeBarricade
UV ResistantYes
Maximum Insulation Outer Diameter (Metric) UOMmm
Overall Width (Metric)4.6
Cable Length (Imperial) UOMin
Mil SpecMS3367-1-0
Cable Length (Metric) UOMmm
Overall Length (Metric)193.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
ApplicationSecure wire bundling
Maximum Operating Temperature (Fahrenheit)185.0
Minimum Bundle Diameter0.0625 Inch
Units per bag100
UL ApprovalYes
Maximum Recommended Voltage Rating UOMV
Maximum Bundle Diameter (Metric)51.0
Maximum Insulation Outer Diameter (Metric)3.7
VG ApprovalNo
Maximum Operating Temperature (Celsius) UOMDegree
Cable Tie Length UOMmm
Overall Width (Imperial)0.18
Flammability RatingUL 94 V-2
