3M Products & Supplies

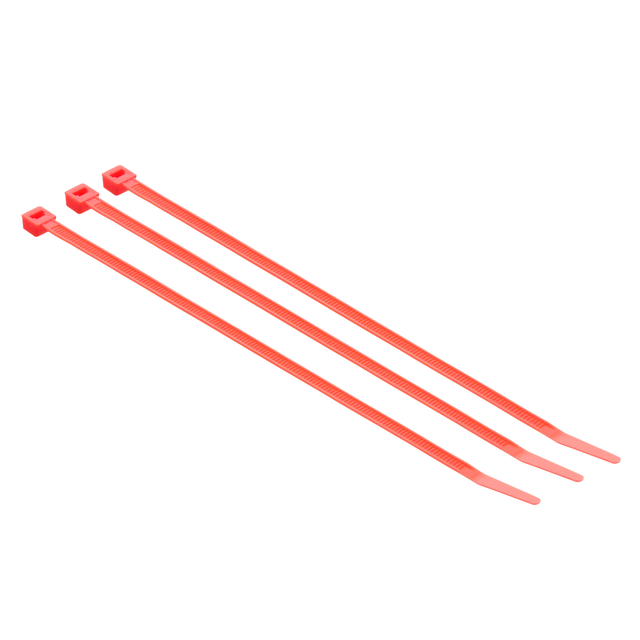

3M™ Cable Tie CT8NT18-C, 1000/Case - 7000031851

Sold As: 1000-Pack
SKU: 7000031851
MPN: 7000031851
For an accurate lead time please contact us
UPC: 00051128592823
3M ID: 80611469414
5 Digit UPC: 59282
$56.93 ($0.06 / Count)
Hurry up! Current stock:

Product Description

3M™ Standard Nylon Cable Ties are made with high-quality nylon 6/6 and designed to secure wire bundles and harness components quickly, without slipping. The curved tip allows for faster threading and installation, and they feature a self-locking head.

Features

  • UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces
  • Curved tip allows for faster threading and installation
  • Secure wire bundles and harness components quickly, without slipping
Spec Sheet



Downloads

Specifications

Country of OriginHonduras
Maximum Insulation Outside Diameter0.145 in
Tensile Strength (Metric)8.17
Overall Length (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Units per Case1000.0
VG ApprovalNo
Operating Temperature Range (Celsius)-40 °C to 85 °C
Cable Tie TypeMiniature
Halogen FreeYes
ApplicationSecure wire bundling
Operating Temperature Range (Fahrenheit)-40 °F to 185 °F
Overall Width (Metric)2.4
Minimum Operating Temperature (Fahrenheit) UOMDegree
Plenum RatedYes
Overall Length (Imperial)8.1
Maximum Operating Temperature (Fahrenheit) UOMDegree
Solution forLonghaul/Metro Loop Network: Outdoor
UV ResistantNo
Minimum Installation Temperature (Celsius)0 Degree Celsius
Maximum Operating Temperature (Celsius) UOMDegree
Package Quantity UOMPCS
Cable Tie Base Height8 in
Minimum Bundle Diameter0.0625 Inch
Minimum Operating Temperature (Celsius)-40.0
Cable Tie Length UOMmm
Cable Length (Metric)205.74
Cable Length (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)-40.0
Cable Length (Imperial)8.0
Tape TypeBarricade
Maximum Insulation Outer Diameter (Metric) UOMmm
Cable Diameter Range8,1 - 39,4 mm
Maximum Bundle Diameter (Metric)50.8
Maximum Operating Temperature (Celsius)85.0
Product TypeCable Ties
UL ApprovalYes
Cable Management ProductsCable Ties
Overall Width (Imperial)0.096
Minimum Bundle Diameter (Metric)1.6 mm
Maximum Recommended Voltage Rating UOMV
Cable Tie Length193.0
Operating Temperature (Celsius)85 Degree Celsius
Units per bag100
Maximum Bundle Diameter (Metric) UOMmm
Tensile Strength (Metric) UOMkg
TypeStandard
Maximum Recommended Voltage Rating600.0
MIL ApprovalNo
Maximum Operating Temperature (Fahrenheit)185.0
Maximum Operating Temperature85 Degree Celsius
Maximum Insulation Outer Diameter (Metric)3.7
Overall Length (Metric)206.0
Operating Temperature (Fahrenheit)185 Degree Fahrenheit
Maximum Bundle Diameter2 Inch
Overall Width (Imperial) UOMin
Cable Length (Imperial) UOMin
Overall Length (Metric) UOMmm
Minimum Operating Temperature (Celsius) UOMDegree
Flammability RatingUL 94 V-2
MaterialNylon 6/6
Package Quantity100.0
Overall Width (Metric) UOMmm
Solvable FastenerNo
