3M Products & Supplies

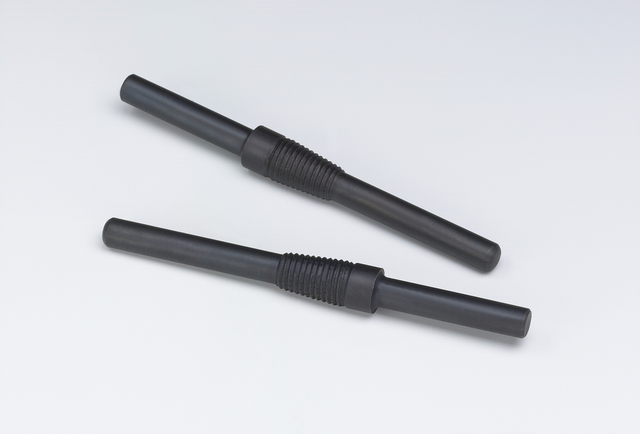

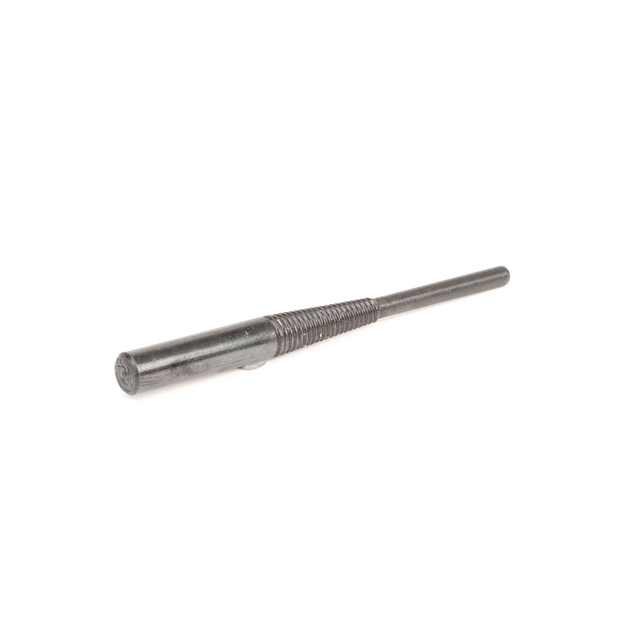

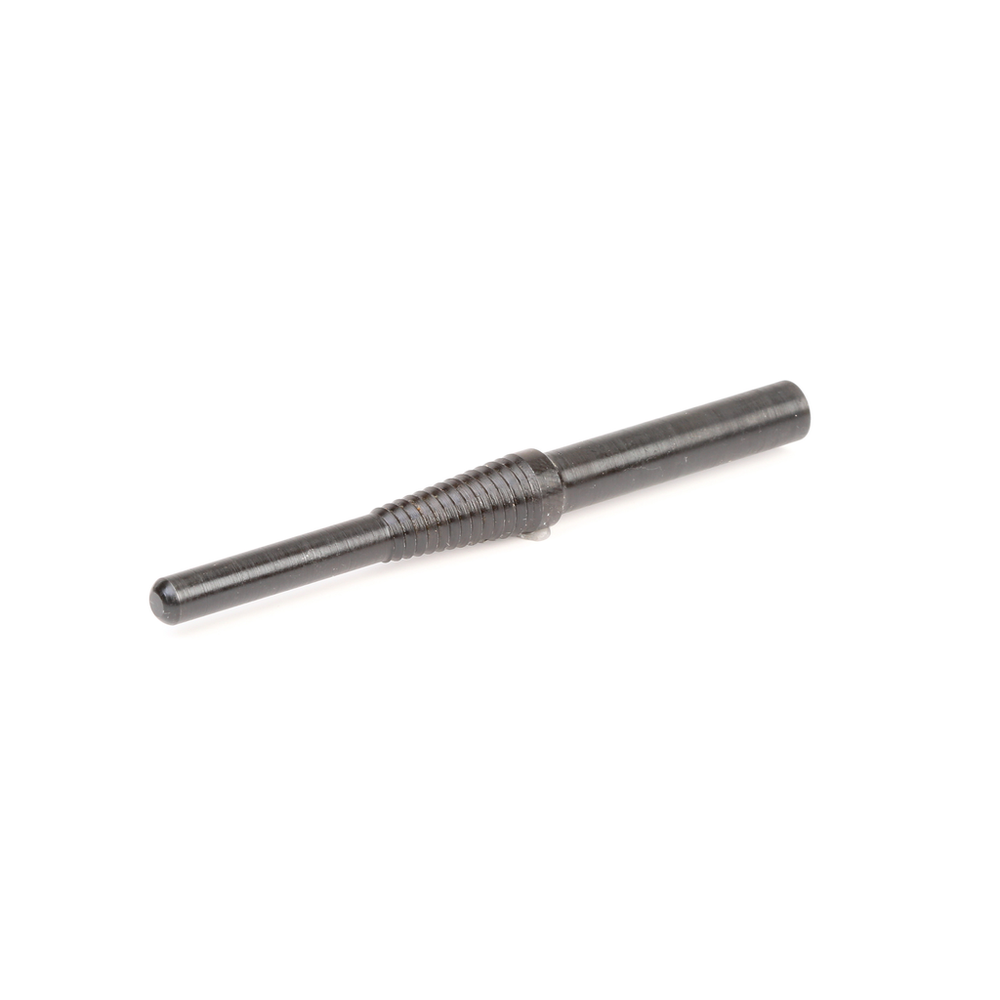

3M™ Cartridge Roll Mandrel, 45117, 3/16 in x 1 in x 1/4 in, 25 ea/Case - 7000148243

Sold As: 25-Pack
SKU: 7000148243
MPN: 7000148243
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051144451173
3M ID: 60980108140
5 Digit UPC: 45117
$104.61 ($4.18 / Count)
Hurry up! Current stock:

Product Description

3M™ Cartridge Roll Mandrel is a tool attachment that holds an abrasive cartridge roll (sold separately). Together, the mandrel and cartridge roll enable the user to grind or finish hard-to-reach areas of a workpiece, such as angles and curves. The mandrel attaches to a rotary tool such as a die grinder or drill, and comes in different sizes to fit a variety of cartridge roll sizes.

Features

  • Mandrel enables access to tight spaces with a cartridge roll
  • Comes in various pilot diameters and lengths to fit different cartridge rolls
  • Shank of the mandrel is secured into the collet assembly or drill chuck of a rotary power tool
  • Pilot diameter must match size of cartridge roll
  • Shank must match the size of the power tool collet or drill chuck

Downloads

Specifications

Country of OriginChina
Attachment TypeShaft
Shank Size (Metric)6.35
Maximum Speed UOMrpm
Overall Length (Imperial)3.0
Maximum Speed24000.0
Product TypeMandrel
Overall Length (Metric)76.2
Overall Length (Metric) UOMmm
Overall Length (Imperial) UOMin
IndustriesAOEM, Aerospace, Composite, Cutting Tool Manufacturing, General Industrial, MRO, Metalworking, Paint Preparation, Primary Metal, Transportation & Heavy Equipment, Woodworking
Shank Size (Metric) UOMmm
Equipment - MachinesDie Grinders
