3M Products & Supplies

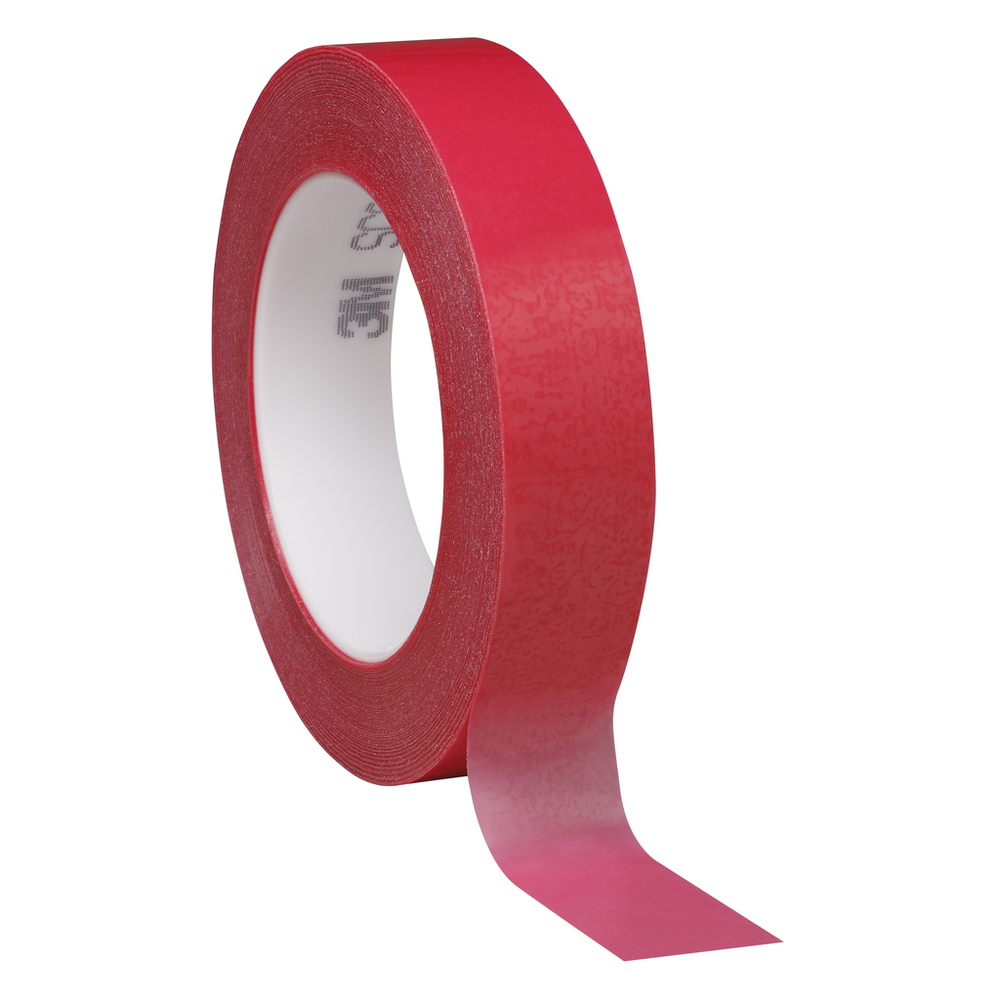

3M™ Circuit Plating Tape 1280 Red, 1/2 in x 72 yds x 4.2 mil, 72/Case, Bulk - 7010045078

Sold As: 72-Pack
SKU: 7010045078
MPN: 7010045078
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200112737
3M ID: 80008001077
5 Digit UPC: 11273
$1,037.82 ($14.41 / Count)
Hurry up! Current stock:

Product Description

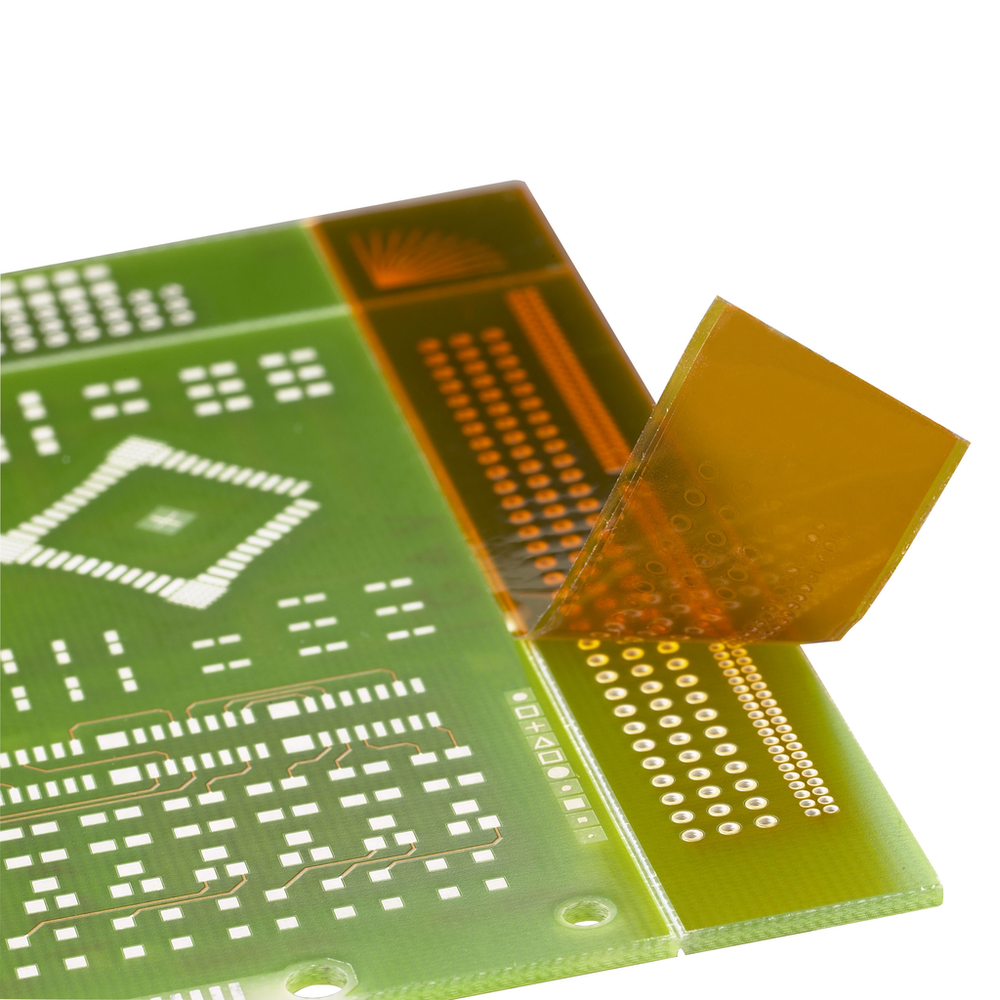

3M™ Circuit Plating Tape 1280 with polyester film used for PCB masking tape or other high temperature applications. Red. 3.6 mil thick.

Features

  • Thick adhesive coating reduces undercutting because adhesive helps block out solutions between fingers
  • Polyester backing reduces stretch and recovery of tape and associated uneven stop-off line
  • Solvent clean up of the board is recommended to facilitate subsequent soldering
  • Low stretch polyester film for machine, as well as hand application
  • Polyethylene tape core instead of cardboard
Spec Sheet



Downloads

Specifications

Country of OriginMexico
Total Tape Thickness without Liner (Metric)0.091
Adhesive TypeSilicone
Overall Length (Imperial)72.0
Overall Width (Imperial)0.5
Product ColorRed
Backing (Carrier) MaterialPolyester
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Metric)65.837
Overall Length (Metric) UOMm
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial)3.6
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric) UOMmm
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)311.0 Degree Fahrenheit
Maximum Operating Temperature (Celsius)155.0 Degree Celsius
