3M™ Cold Shrink Insulator 8423-6, 6-4 AWG (14-16 mm²), 10/case - 7000058442

Name: 3M™ Cold Shrink Insulator 8423-6, 6-4 AWG (14-16 mm²), 10/case - 7000058442
Brand: 3M Products & Supplies
SKU: 7000058442
Price: 267.01 USD
Availability: InStock

Sold As: 10-Pack

SKU: 7000058442

MPN: 7000058442

For an accurate lead time please contact us

UPC: 00054007421467

3M ID: 80610839484

5 Digit UPC: 42146

$267.01 ($26.70 / Count)

Hurry up! Current stock:

Quantity:

Product Description

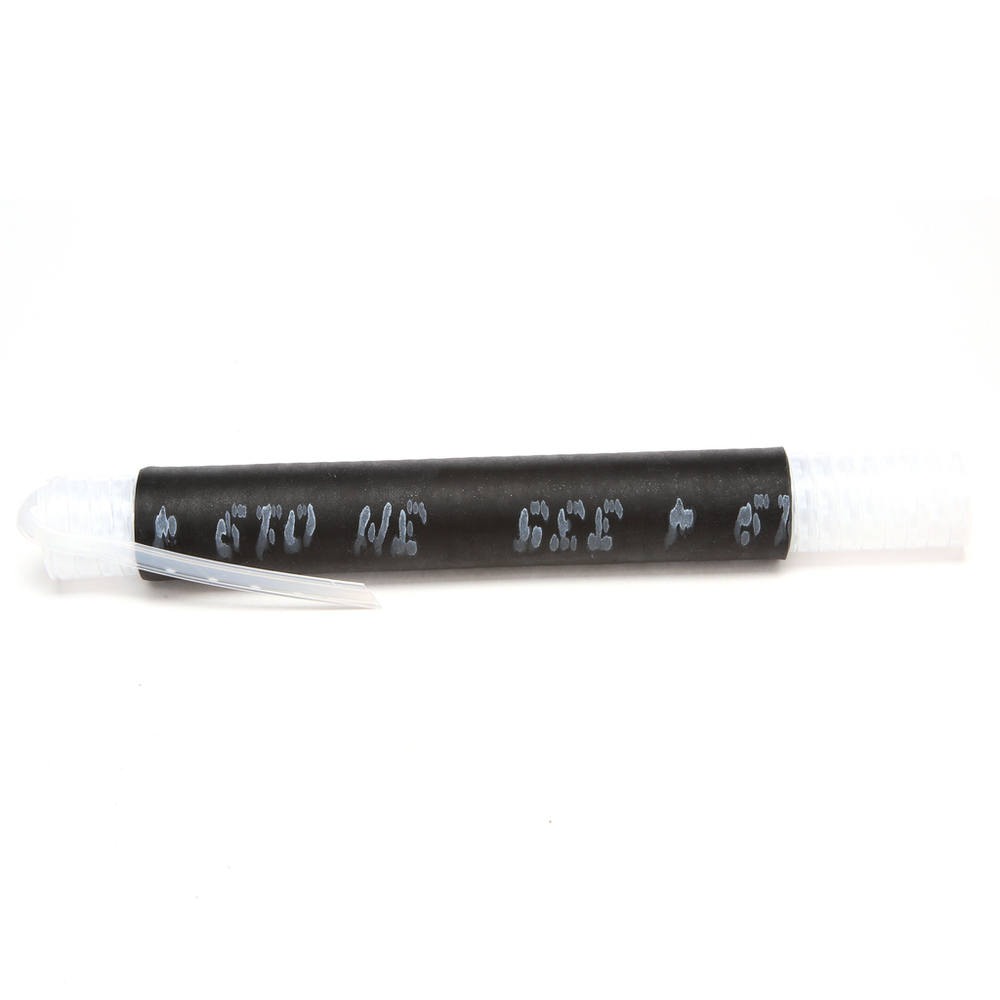

3M™ Cold Shrink Connector Insulators 8420 and 8430 Series are EPDM, factory-expanded rubber tubes designed with cold shrink technology and loaded on a removable plastic core. To install the connection, position it over the inline connector, pull the loose tab on the plastic core while unwinding the core in a counterclockwise direction, allowing the ends of the tube to shrink and form a secure seal. Engineered for primary insulation of solid dielectric insulated wires and cable splices rated up to 1000 volts, the insulators can be used for indoor and outdoor applications to provide a water-resistant seal. They are easy to install by hand, requiring no additional tools or heating sources. Accommodating a variety of cable sizes, 3M™ Cold Shrink Connector Insulators 8420 and 8430 Series provide physical protection and environmental sealing for terminal lug barrels, conduit coupling, and conduit-to-cable breakouts. These insulators are ideal for direct burial or submersible applications involving communication and other non-electrical operations, such as dig-in and sheath repairs, and secondary splices for both copper and aluminum conductors. They can withstand an operating temperature range between -40 °F to 194 °F (-40 °C to 90 °C) and meet the water seal requirements of ANSI C119.1. When you need dependable insulating properties with long-lasting resiliency, look no further than 3M™ Cold Shrink Connector Insulators 8420 and 8430 Series.

Features

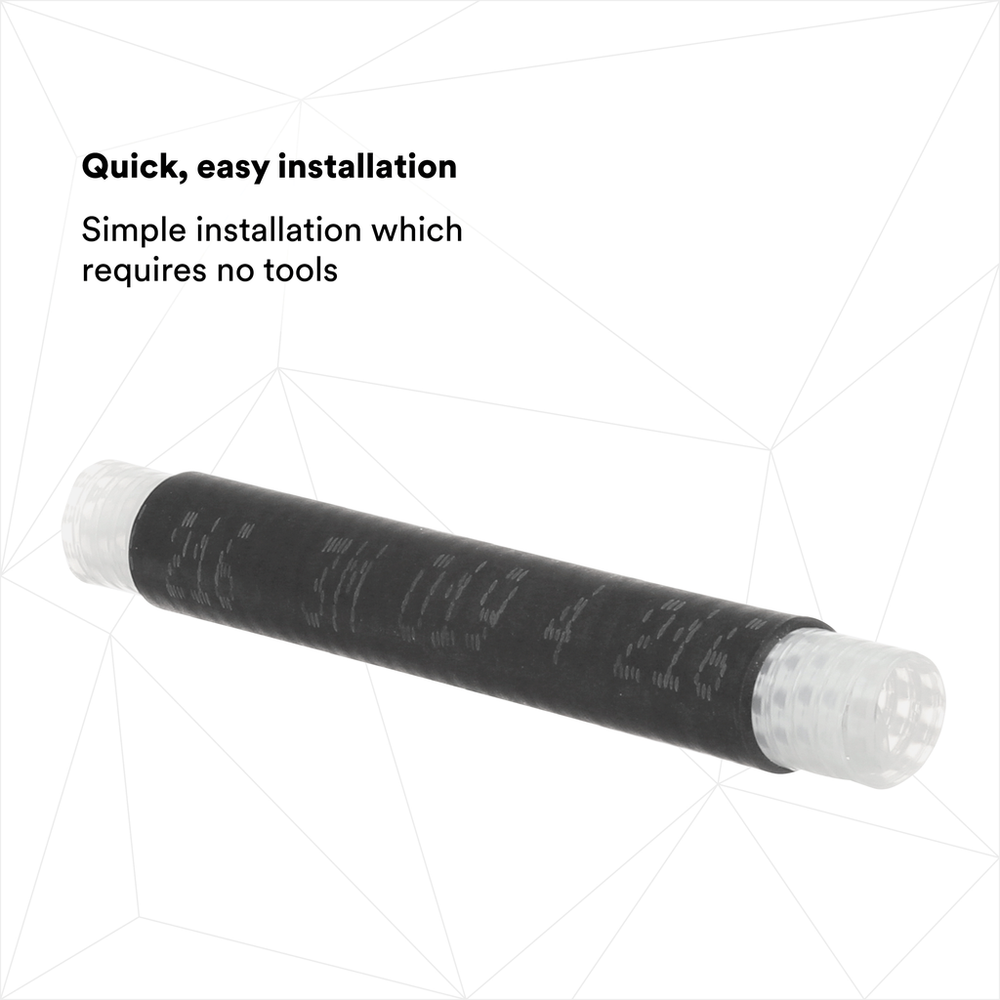

EASY TO INSTALL: Requires no tools or heating sources and can be installed by hand
HIGH-RESISTANCE: Provides excellent wet electrical properties and resists fluid splashes, acids, and alkalis

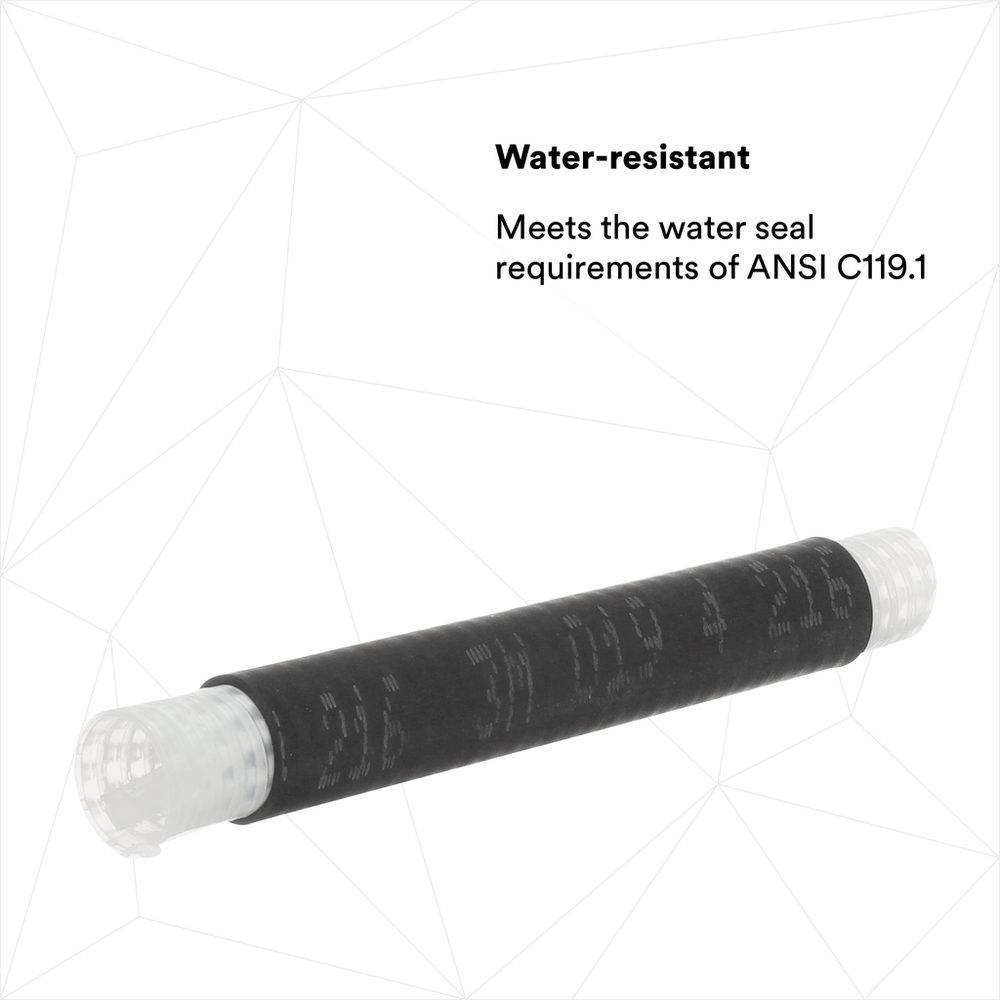

WATER-RESISTANT SEAL: Meets the water-resistant requirements of ANSI C-119.1
MULTIPURPOSE: For environmental sealing on terminal lug barrels, conduit coupling, conduit-to-cable breakouts, and more

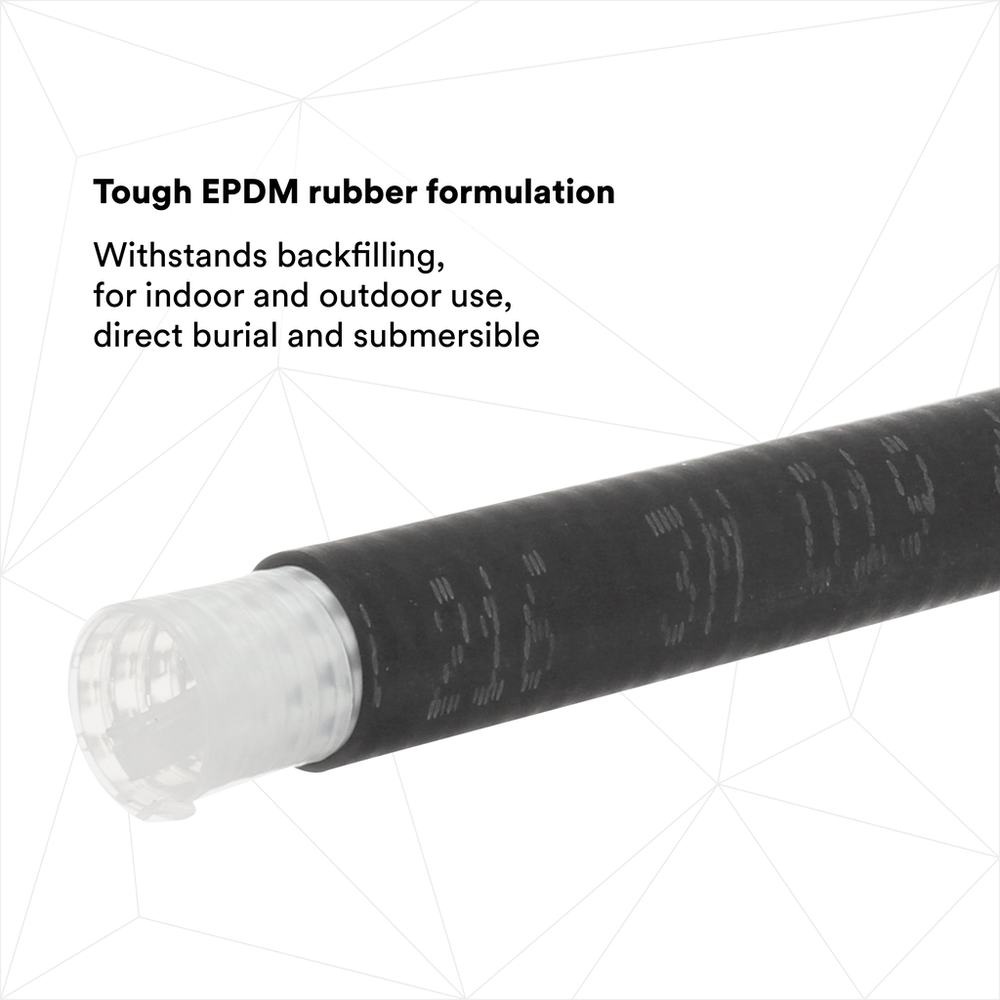

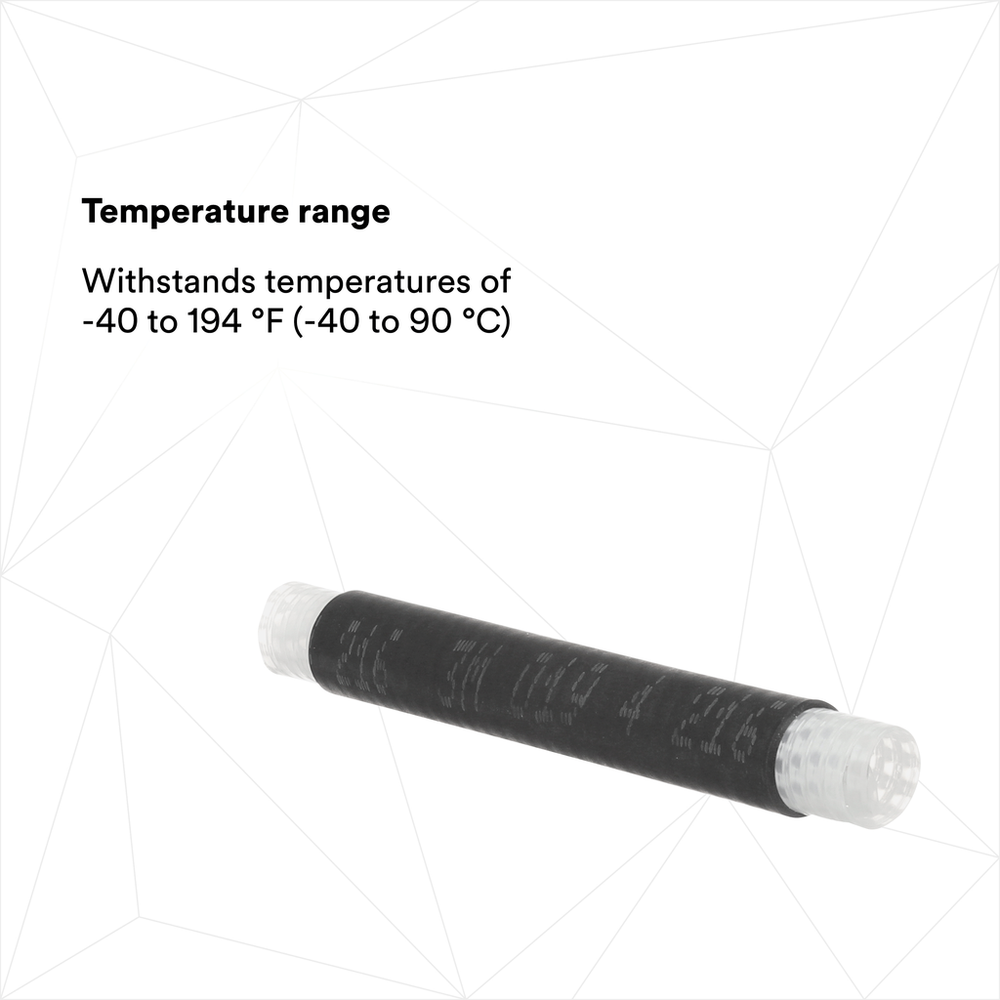

BUILT STRONG: Made of EPDM rubber, enduring operating temperatures ranging from -40 °F to 194 °F (-40 °C to 90 °C)

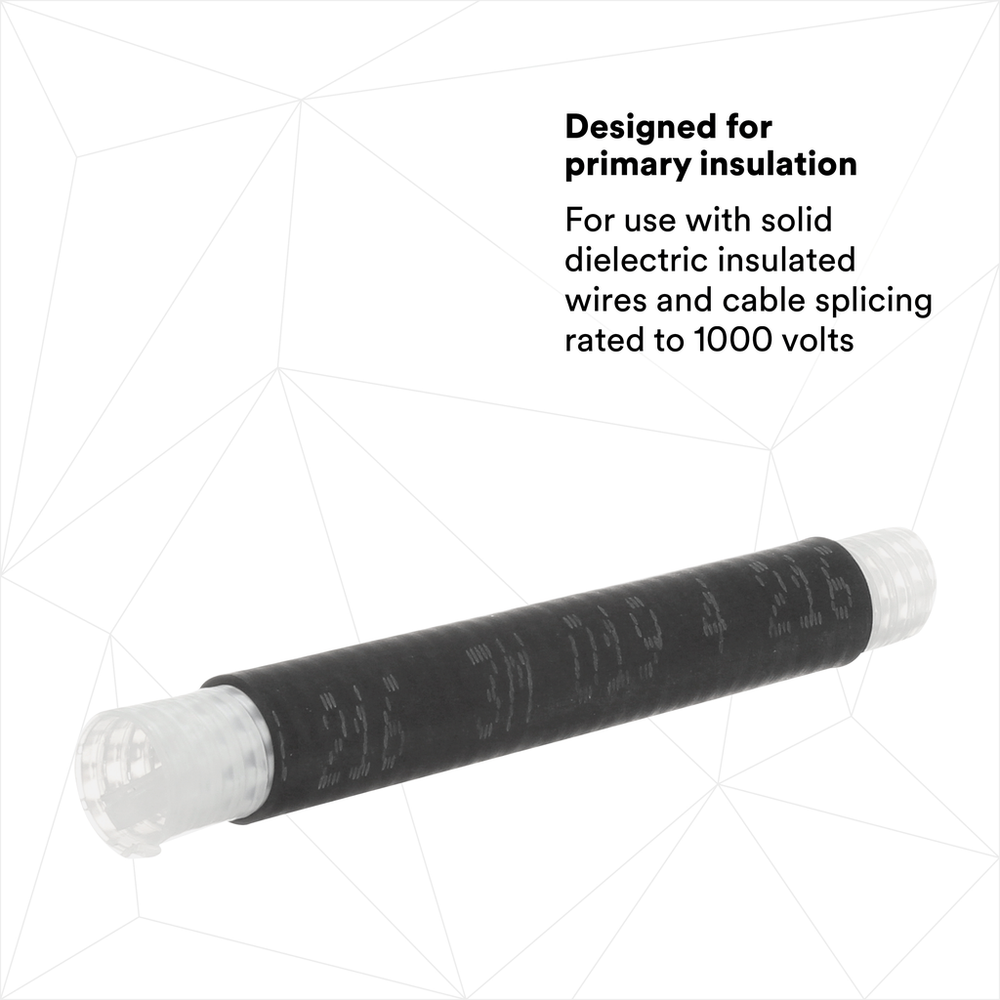

DESIGNED TO PERFORM: Offers reliable primary insulation for solid dielectric wires and secondary splices rated up to 1000 volts

Spec Sheet

Downloads

Document Instructions

Specifications

Shelf Life	1800
Country of Origin	United States
Overall Length (Metric) UOM	mm
Maximum Conductor Size (Metric)	16 mm²
Product Type	Splice
Inner Diameter After Shrink (Imperial)	0.189
Halogen Free	No
Product Color	Black
Material	EPDM Rubber
Dielectric Strength (V/mil)	365 V/mil
Overall Length (Imperial) UOM	in
Maximum Connector Length (Metric)	50.8 mm
Wall Thickness after Shrinking	3.0
Relaxed Tube Length (Metric) UOM	mm
Wall Thickness after Shrinking UOM	mm
Cable Type	Non-Shieled, Solid Dielectric Power Cable
Maximum Connector Length	2.0 in
Inner Diameter Before Shrink (Metric) UOM	mm
Operating Temperature (Celsius)	-40 up to +90°C
Minimum Operating Temperature (Fahrenheit) UOM	Degree
Inner Diameter After Shrink (Metric) UOM	mm
Relaxed Tube Length (Metric)	152.4
Minimum Operating Temperature (Fahrenheit)	-40.0
Relaxed Tube Length	6.0
Inner Diameter After Shrink (Metric)	4.8
Voltage	1 kV
Maximum Operating Temperature (Celsius) UOM	Degree
Overall Length (Metric)	152.4
Maximum Operating Temperature (Fahrenheit)	194.0
Shrink Ratio	2:1
Inner Diameter Before Shrink (Metric)	17.0
Cable Shielding	Non-shielded
UL Approval	No
Units per Case	10.0
Maximum Operating Temperature (Celsius)	90.0
Minimum Conductor Size (Metric)	14 mm²
Voltage Application	Low Voltage
Maximum Conductor Size (Imperial)	6 AWG
With Inner Glue	No
Minimum Operating Temperature (Celsius) UOM	Degree
Inner Diameter After Shrink (Imperial) UOM	in
Number of Conductors	1.0
Application	Insulation, mechanical protection, repair
Inner Diameter Before Shrink (Imperial) UOM	in
Overall Length (Imperial)	6.0
Splice Type	Cold Shrink
Minimum Operating Temperature (Celsius)	-40.0
Minimum Conductor Size (Imperial)	27 kcmil
Inner Diameter Before Shrink (Imperial)	0.669
Model	Cold-shrink
RoHS EU Comments	RoHS 2011/65/EU compliant without exemption
Relaxed Tube Length UOM	in
Maximum Operating Temperature (Fahrenheit) UOM	Degree
