3M Products & Supplies

3M™ Cold Shrink Insulator 8426-9, 2/0 AWG-250 kcmil (70-125 mm²), 10/case - 7000006132

Sold As: 10-Pack
SKU: 7000006132
MPN: 7000006132
For an accurate lead time please contact us
UPC: 00054007344575
3M ID: 80610927669
5 Digit UPC: 34457
$356.99 ($35.70 / Count)
Hurry up! Current stock:

Product Description

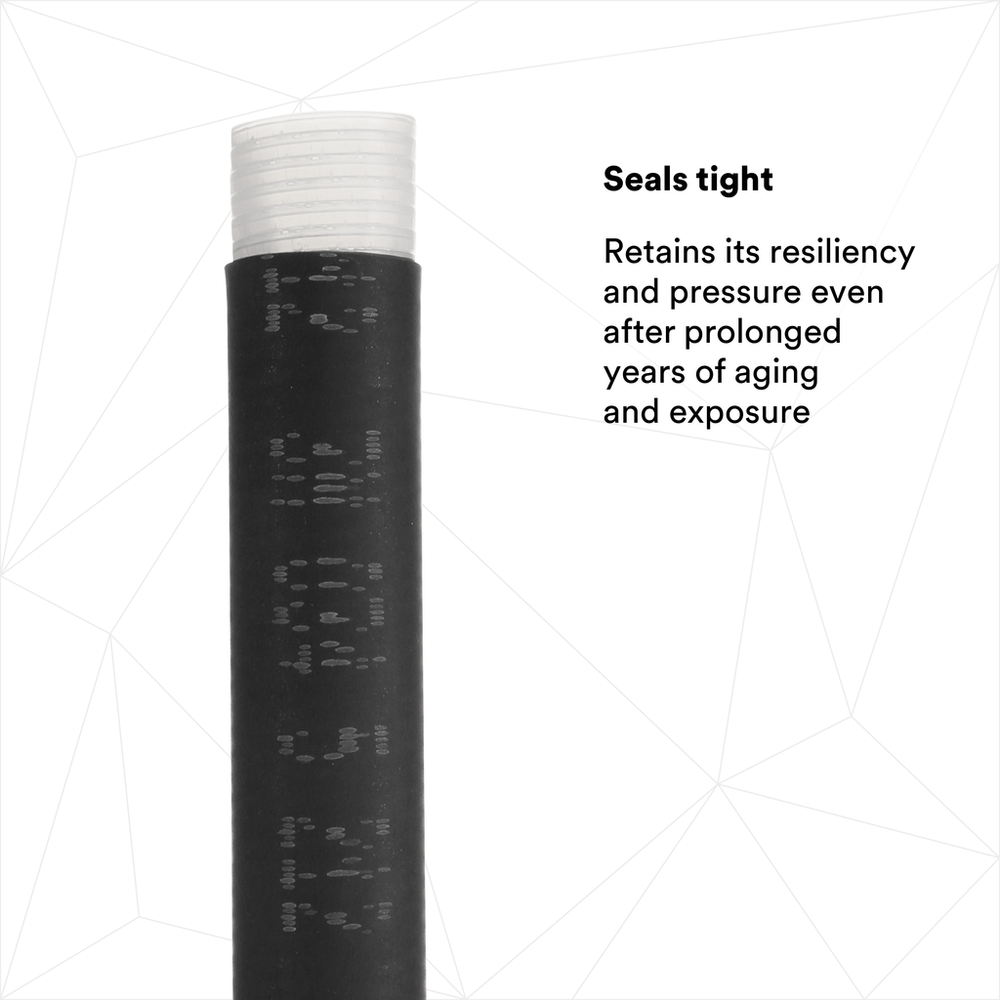

3M™ Cold Shrink Connector Insulators 8420 and 8430 Series are EPDM, factory-expanded rubber tubes designed with cold shrink technology and loaded on a removable plastic core. To install the connection, position it over the inline connector, pull the loose tab on the plastic core while unwinding the core in a counterclockwise direction, allowing the ends of the tube to shrink and form a secure seal. Engineered for primary insulation of solid dielectric insulated wires and cable splices rated up to 1000 volts, the insulators can be used for indoor and outdoor applications to provide a water-resistant seal. They are easy to install by hand, requiring no additional tools or heating sources. Accommodating a variety of cable sizes, 3M™ Cold Shrink Connector Insulators 8420 and 8430 Series provide physical protection and environmental sealing for terminal lug barrels, conduit coupling, and conduit-to-cable breakouts. These insulators are ideal for direct burial or submersible applications involving communication and other non-electrical operations, such as dig-in and sheath repairs, and secondary splices for both copper and aluminum conductors. They can withstand an operating temperature range between -40 °F to 194 °F (-40 °C to 90 °C) and meet the water seal requirements of ANSI C119.1. When you need dependable insulating properties with long-lasting resiliency, look no further than 3M™ Cold Shrink Connector Insulators 8420 and 8430 Series.

Features

  • DESIGNED TO PERFORM: Offers reliable primary insulation for solid dielectric wires and secondary splices rated up to 1000 volts
  • EASY TO INSTALL: Requires no tools or heating sources and can be installed by hand

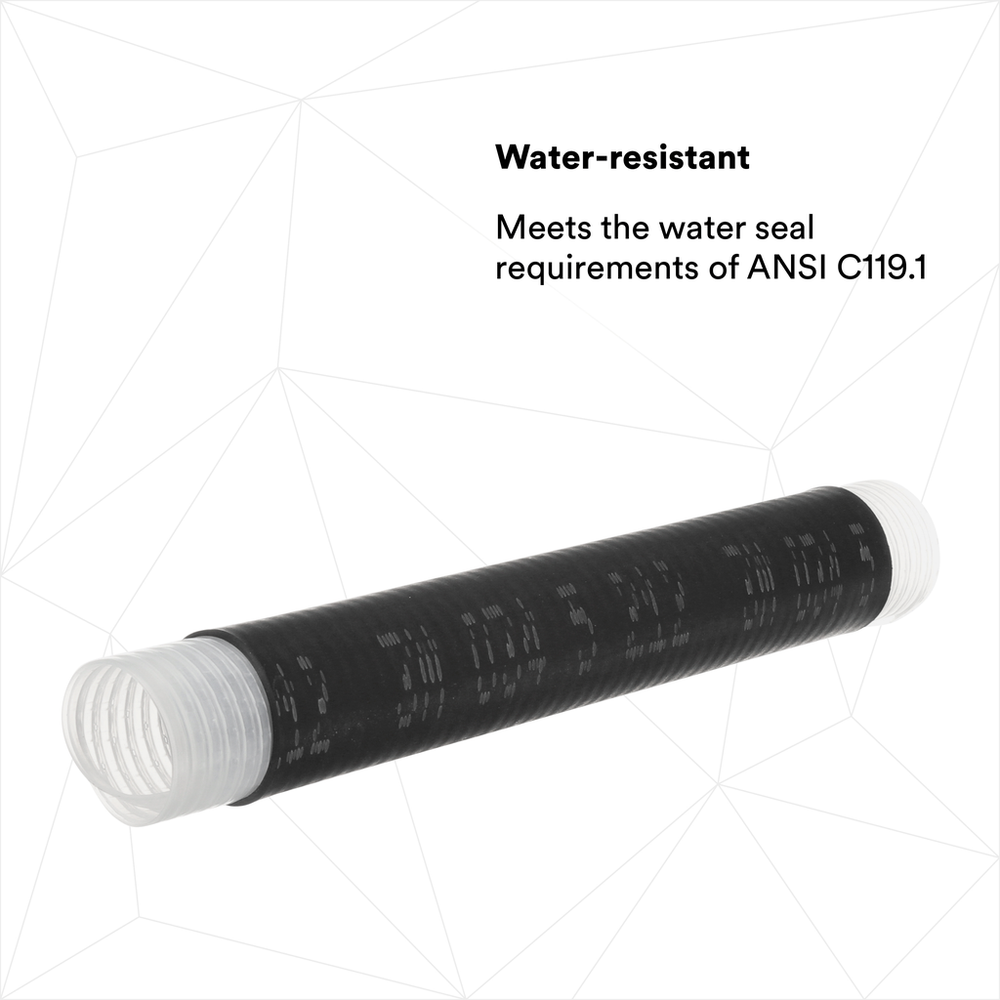

  • WATER-RESISTANT SEAL: Meets the water-resistant requirements of ANSI C-119.1

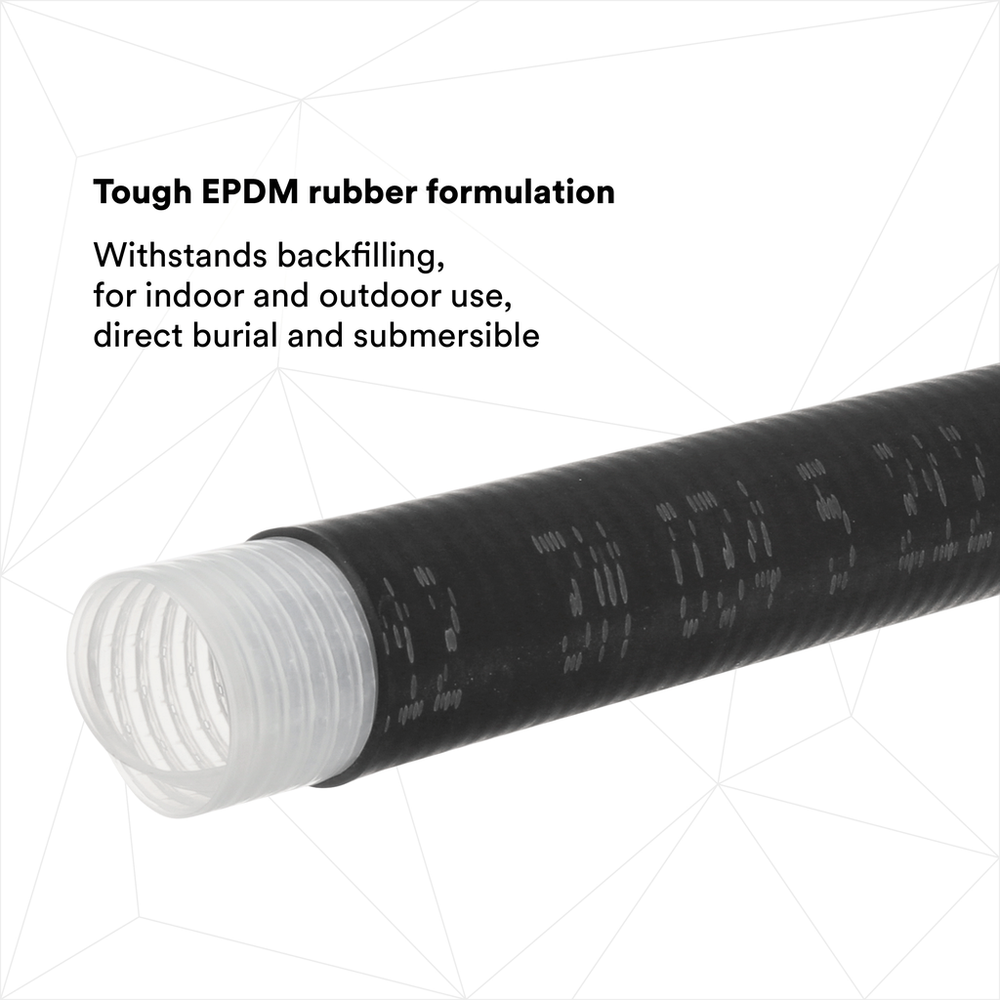

  • BUILT STRONG: Made of EPDM rubber, enduring operating temperatures ranging from -40 °F to 194 °F (-40 °C to 90 °C)
  • MULTIPURPOSE: For environmental sealing on terminal lug barrels, conduit coupling, conduit-to-cable breakouts, and more
  • HIGH-RESISTANCE: Provides excellent wet electrical properties and resists fluid splashes, acids, and alkalis
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Dielectric Strength (V/mil)365 V/mil
Minimum Operating Temperature (Celsius)-40.0
Minimum Conductor Size (Metric)70 mm²
Relaxed Tube Length UOMin
Overall Length (Imperial) UOMin
Splice TypeCold Shrink
Inner Diameter After Shrink (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Voltage1 kV
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Fahrenheit)194.0
Overall Length (Metric) UOMmm
Inner Diameter Before Shrink (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)-40.0
Cable TypePower Cable
ModelCold-shrink
Maximum Connector Length (Metric)127.0 mm
MaterialEPDM Rubber
Maximum Conductor Size (Metric)125 mm²
Inner Diameter After Shrink (Imperial)0.547
Product TypeSplice
Overall Length (Imperial)9.0
Maximum Conductor Size (Imperial)246 kcmil
Maximum Operating Temperature (Celsius) UOMDegree
Relaxed Tube Length9.0
Relaxed Tube Length (Metric) UOMmm
Inner Diameter After Shrink (Imperial) UOMin
Minimum Operating Temperature (Celsius) UOMDegree
Product ColorBlack
Inner Diameter After Shrink (Metric)13.9
Number of Conductors1.0
Minimum Conductor Size (Imperial)3/0 AWG
Relaxed Tube Length (Metric)228.6
Maximum Connector Length5.0 in
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter Before Shrink (Imperial)1.185
Cable ShieldingNon-shielded
Maximum Operating Temperature (Celsius)90.0
Overall Length (Metric)228.6
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric)30.1
