3M Products & Supplies

3M™ Cold Shrink Insulator 8428-18, Tape/Wire/UniShield® Shielding, 1 kV, Standard, 10/Case - 7000005944

Sold As: 10-Pack
SKU: 7000005944
MPN: 7000005944
For an accurate lead time please contact us
UPC: 00054007344612
3M ID: 80610134050
5 Digit UPC: 34461
$1,142.20 ($114.22 / Count)
Hurry up! Current stock:

Product Description

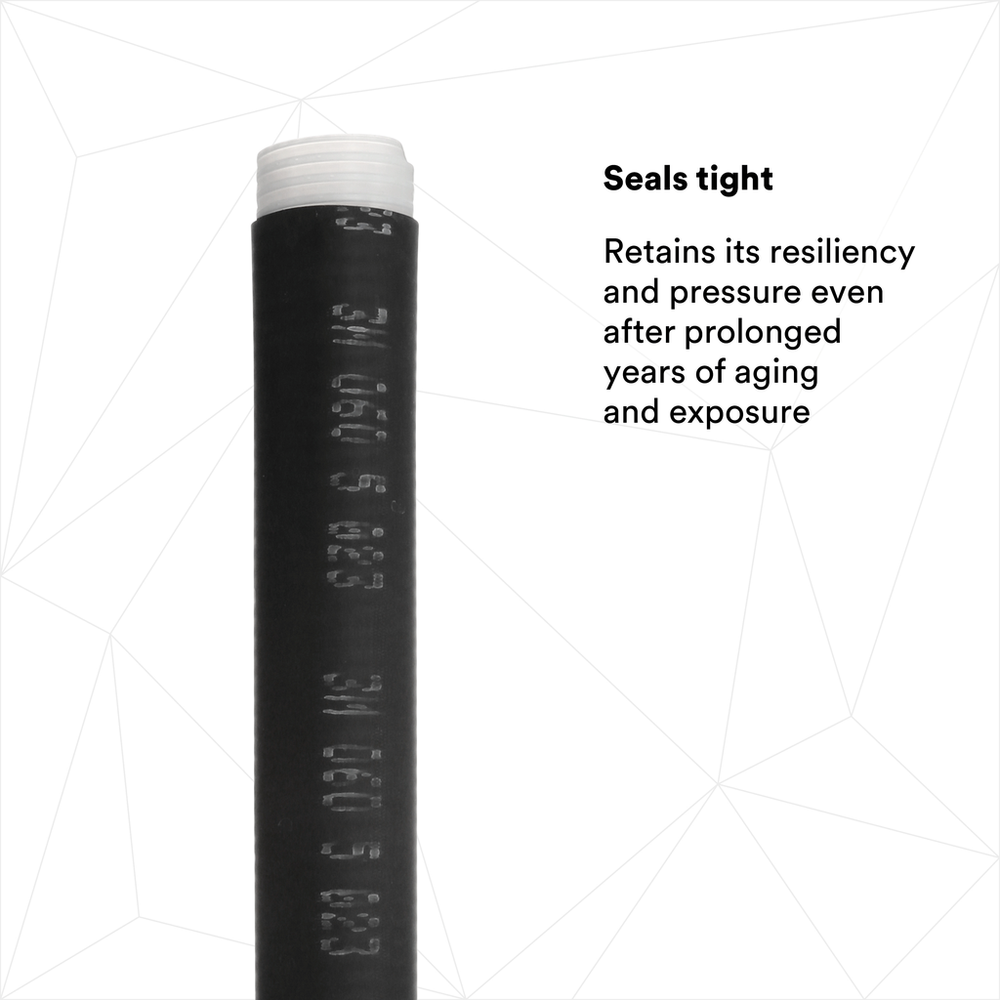

3M™ Cold Shrink Connector Insulators 8420 and 8430 Series are EPDM, factory-expanded rubber tubes designed with cold shrink technology and loaded on a removable plastic core. To install the connection, position it over the inline connector, pull the loose tab on the plastic core while unwinding the core in a counterclockwise direction, allowing the ends of the tube to shrink and form a secure seal. Engineered for primary insulation of solid dielectric insulated wires and cable splices rated up to 1000 volts, the insulators can be used for indoor and outdoor applications to provide a water-resistant seal. They are easy to install by hand, requiring no additional tools or heating sources. Accommodating a variety of cable sizes, 3M™ Cold Shrink Connector Insulators 8420 and 8430 Series provide physical protection and environmental sealing for terminal lug barrels, conduit coupling, and conduit-to-cable breakouts. These insulators are ideal for direct burial or submersible applications involving communication and other non-electrical operations, such as dig-in and sheath repairs, and secondary splices for both copper and aluminum conductors. They can withstand an operating temperature range between -40 °F to 194 °F (-40 °C to 90 °C) and meet the water seal requirements of ANSI C119.1. When you need dependable insulating properties with long-lasting resiliency, look no further than 3M™ Cold Shrink Connector Insulators 8420 and 8430 Series.

Features

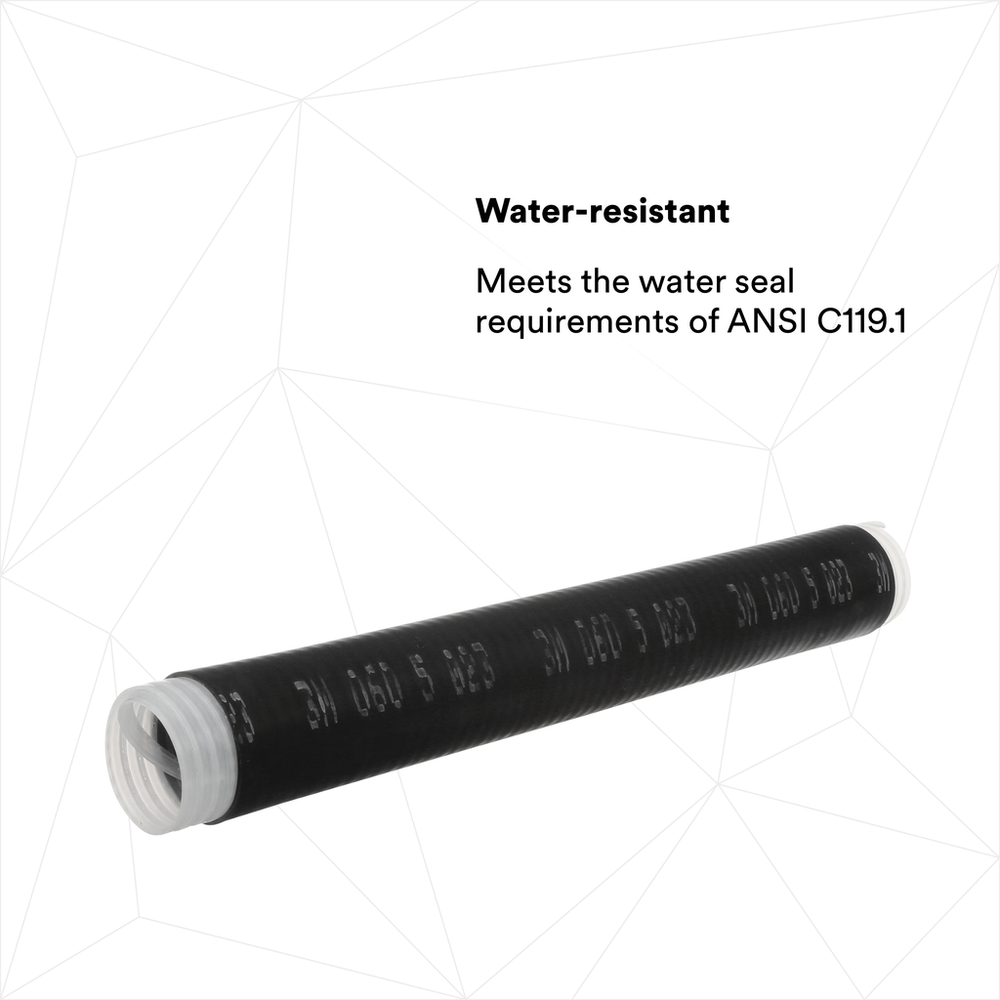

  • WATER-RESISTANT SEAL: Meets the water-resistant requirements of ANSI C-119.1
  • HIGH-RESISTANCE: Provides excellent wet electrical properties and resists fluid splashes, acids, and alkalis

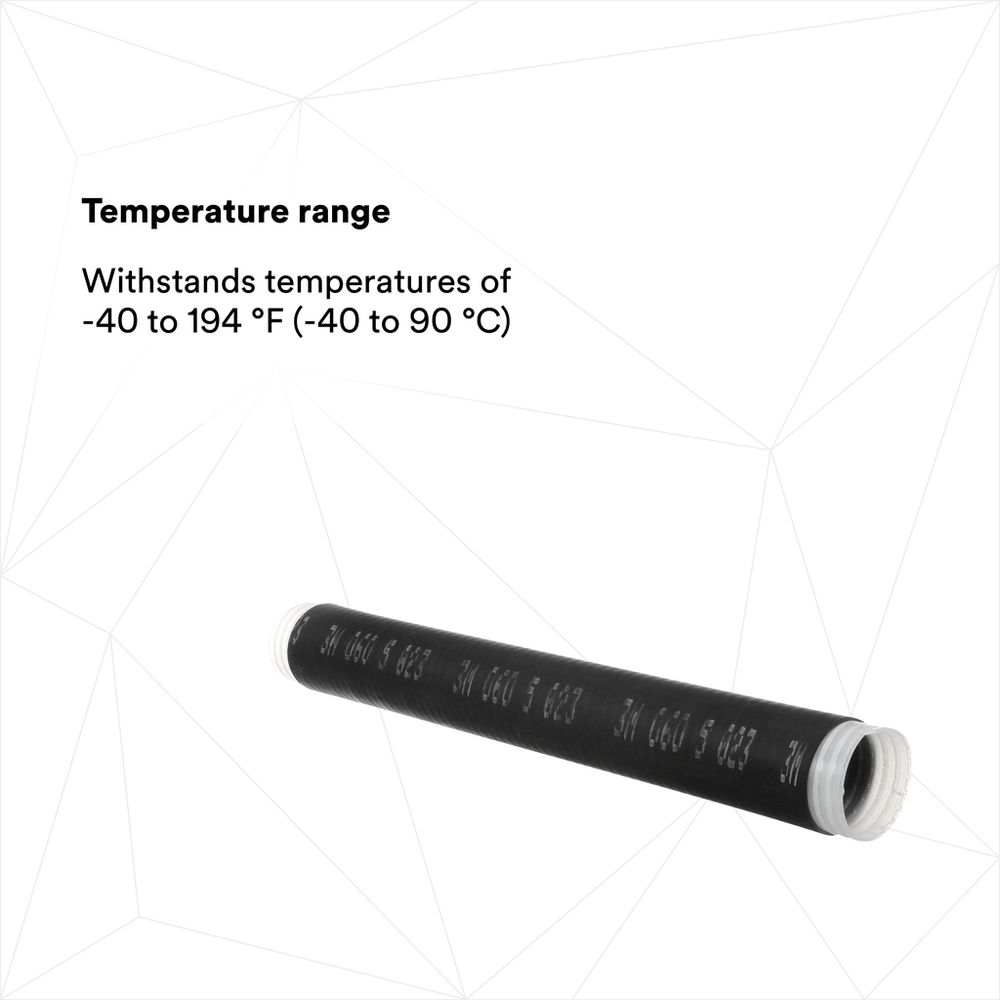

  • BUILT STRONG: Made of EPDM rubber, enduring operating temperatures ranging from -40 °F to 194 °F (-40 °C to 90 °C)
  • MULTIPURPOSE: For environmental sealing on terminal lug barrels, conduit coupling, conduit-to-cable breakouts, and more
  • DESIGNED TO PERFORM: Offers reliable primary insulation for solid dielectric wires and secondary splices rated up to 1000 volts
  • EASY TO INSTALL: Requires no tools or heating sources and can be installed by hand
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Maximum Conductor Size (Imperial)800 kcmil
Inner Diameter Before Shrink (Imperial) UOMin
Units per Case10.0
Inner Diameter Before Shrink (Metric) UOMmm
ApplicationInsulation, mechanical protection, repair
Maximum Operating Temperature (Celsius) UOMDegree
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Halogen FreeNo
Maximum Connector Length (Metric)355.6 mm
Inner Diameter After Shrink (Imperial)0.949
Relaxed Tube Length UOMin
ModelCold-shrink
Minimum Operating Temperature (Celsius)-40.0
Maximum Connector Length14.0 in
Relaxed Tube Length (Metric) UOMmm
Voltage1 kV
Product TypeSplice
Overall Length (Metric)457.2
Inner Diameter After Shrink (Imperial) UOMin
Product ColorBlack
Minimum Operating Temperature (Fahrenheit) UOMDegree
Cable TypePower Cable
Minimum Operating Temperature (Fahrenheit)-40.0
Maximum Operating Temperature (Celsius)90.0
Inner Diameter After Shrink (Metric)24.1
Cable ShieldingNon-shielded
Relaxed Tube Length18.0
Relaxed Tube Length (Metric)457.2
Minimum Conductor Size (Metric)300 mm²
Number of Conductors1.0
Splice TypeCold Shrink
Maximum Operating Temperature (Fahrenheit)194.0
Voltage ApplicationLow Voltage
Overall Length (Imperial)18.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMmm
Minimum Conductor Size (Imperial)600 kcmil
Overall Length (Imperial) UOMin
Dielectric Strength (V/mil)365 V/mil
Maximum Conductor Size (Metric)400 mm²
Inner Diameter Before Shrink (Imperial)1.937
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Metric)49.2
MaterialEPDM Rubber
Minimum Operating Temperature (Celsius) UOMDegree
