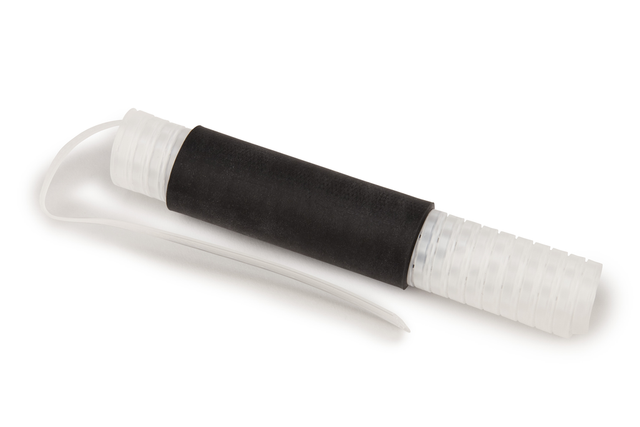

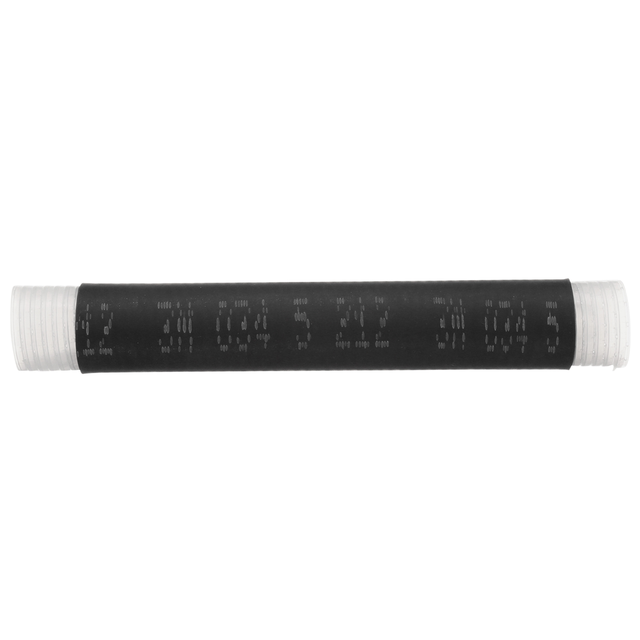

3M™ Cold Shrink Splice Kit 5551-3C-AC, 3/C, 5kV and 8kV, 6 - 3/0 AWG copper or aluminum, 1/case - 7000006190

SKU: 7000006190
MPN: 7000006190
For an accurate lead time please contact us
UPC: 00051128543177
3M ID: 80611236383
5 Digit UPC: 54317
$1,726.23 each
Hurry up! Current stock:

Product Description

3M™ Cold Shrink/Sheath Wrap, Armored or Non-Armored Splice Kit 5551-3C-AC is for splicing 3/C, 5/8 kV shielded, armored and non-armored cables. Connectors are not included. Kits include Sheath Wrap to reconstitute the cable’s armor. Meets the requirements of IEEE 404. Each kit makes one 3/C splice.

Features

  • Shielding Braid Sleeve: Single component provides 2 functions, metallic insulation shield and ground jumper
  • Factory formed components: No thickness measuring necessary
  • Constant Force Spring: No soldering required for shield ground connections
  • Each kit makes one 3/C splice
  • Cold Shrink Insulator and Jacket: Factory formed EPDM installs quickly and void free
  • Use for splicing 5 kV and 8 kV shielded or non-shielded, armored or non-aromored, solid dielectric, power cables

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Voltage5 kV
Insulation Outer Diameter (Metric) UOMmm
Conductor MaterialAluminum
Insulation Outer Diameter (Imperial) UOMin
RoHS EU CommentsContact 3M for information
Maximum Conductor Size (Metric)120
Maximum Connector Length2.7 inch
ModelCold Shrink
Insulation Outer Diameter (Metric)10.16
Insulation Outer Diameter (Imperial)0.37
Halogen FreeNo
Conductor Sizes (Imperial)1 AWG
Insulation O.D. Range (Metric)9.4 - 19.8 mm
Typical Splice Length (Metric)864 mm
MaterialEPDM Rubber
Typical Splice Length34 in
Voltage ApplicationMedium Voltage
Product Series5551-3C-AC Series
Number of Conductors3.0
ApplicationCable Connection
Cable ShieldingTape Shield
Splice TypeInline
Maximum Connector Length (Metric)68.6 mm
Minimum Conductor Size (Metric)16 mm² (Aluminum)
Product ColorBlack
Product TechnologyCold Shrink
Insulation O.D. Range0.37-0.78 Inch
