3M Products & Supplies

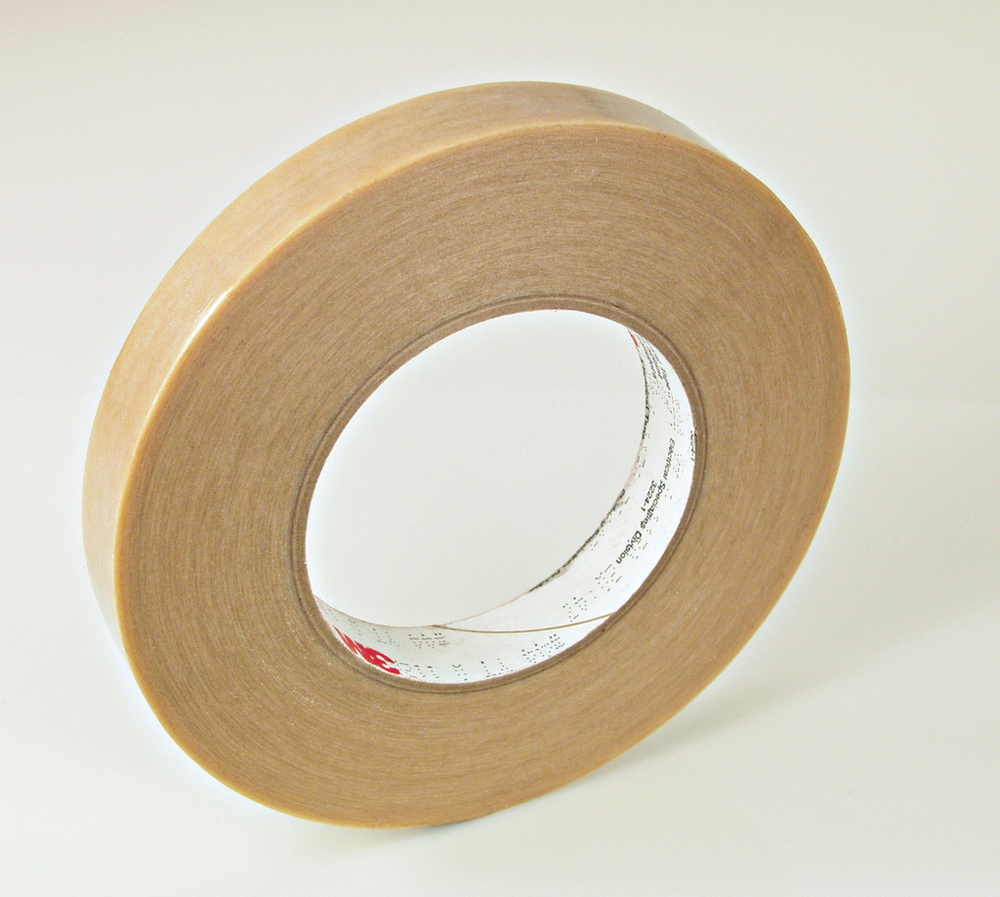

3M™ Composite Film Electrical Tape 44, 23-1/2 in x 120 yd, 3 in Paper Core, Log Roll Untrimmed, 1 Roll/Case - 7010293667

Sold As: 2-Pack
SKU: 7010293667
MPN: 7010293667
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128590744
3M ID: 80611467277
5 Digit UPC: 59074
$1,469.90 ($734.95 / Count)
Hurry up! Current stock:

Product Description

3M™ Tape 44 is a low halogen, edge tear resistant, electrical tape that's suitable for general purpose insulation, as well as anchoring and banding in motors and transformers. The tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).

Features

  • Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
  • For protecting start wires, leads, terminal strips and insulation paper
  • Offers great electrical properties and is puncture-resistant
  • The combination of the thermosetting, rubber adhesive and the polyester-web and polyester film backing provides excellent adherence and dielectric strength
  • Ideal for economical, general-purpose insulation, anchoring and banding in motors and transformers
  • UL Listed and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Overall Width (Imperial) UOMin
Specifications MetCSA Certified, RoHS 2011/65/EU, UL 510, UL Listed, UL Recognized
Backing (Carrier) MaterialComposite
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius)130.0
Maximum Operating Temperature (Fahrenheit)266.0
Adhesive TypeThermosetting Rubber
Minimum Operating Temperature (Celsius)0.0
ApplicationInsulation
Overall Width (Metric) UOMmm
Shelf Life UOMYear
Electrolytic Corrosion Factor1.0
Product MarketsElectrical Equipment Manufacturing
Overall Width (Imperial)23.5
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric)596.9
Minimum Operating Temperature (Fahrenheit)32.0
