3M Products & Supplies

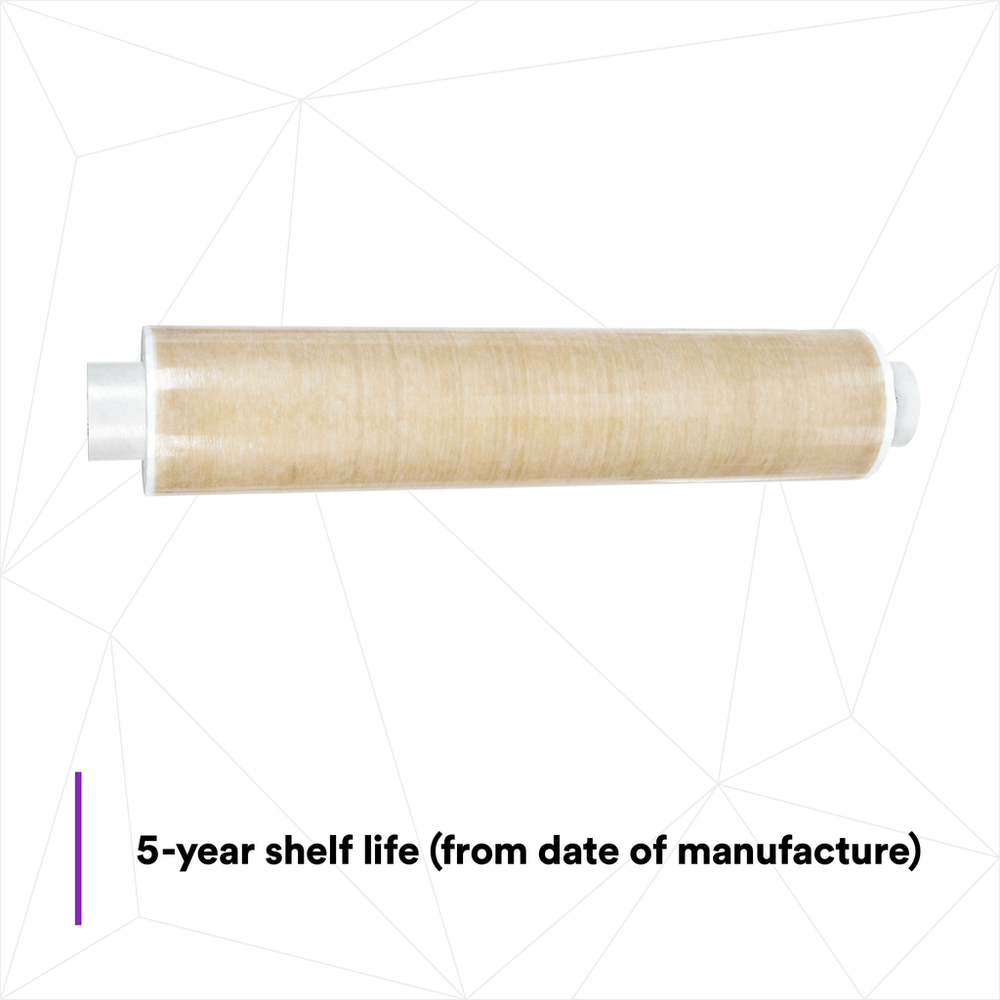

3M™ Composite Film Electrical Tape 44, 23-1/2 in x 90 yd, Log Roll Untrimmed, 1 Roll/Case - 7000036239

SKU: 7000036239
MPN: 7000036239
For an accurate lead time please contact us
UPC: 00051138527105
3M ID: 80610869275
5 Digit UPC: 52710
$551.20 each
Hurry up! Current stock:

Product Description

3M™ Tape 44 is a low halogen, edge tear resistant, electrical tape that's suitable for general purpose insulation, as well as anchoring and banding in motors and transformers. The tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).

Features

  • Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
  • UL Listed and RoHS 2011/65/EU Compliant

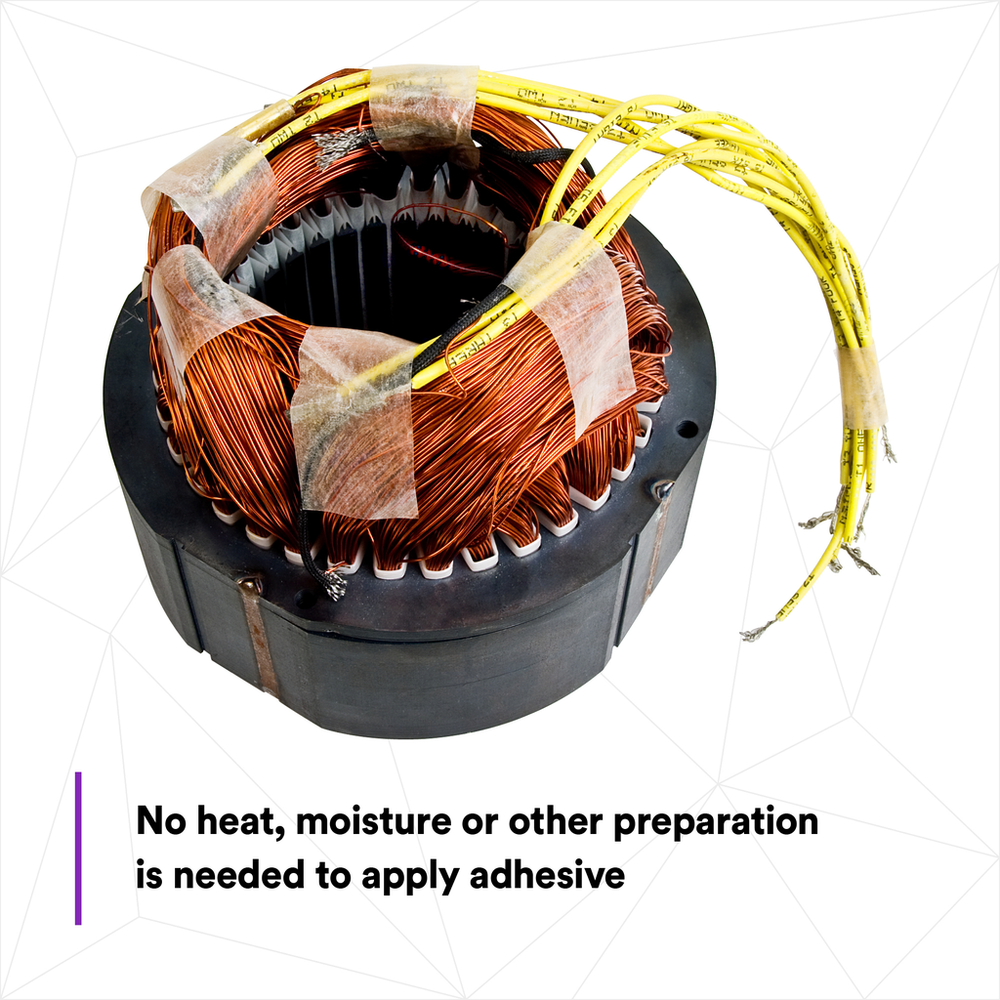

  • For protecting start wires, leads, terminal strips and insulation paper
  • The combination of the thermosetting, rubber adhesive and the polyester-web and polyester film backing provides excellent adherence and dielectric strength
  • Offers great electrical properties and is puncture-resistant

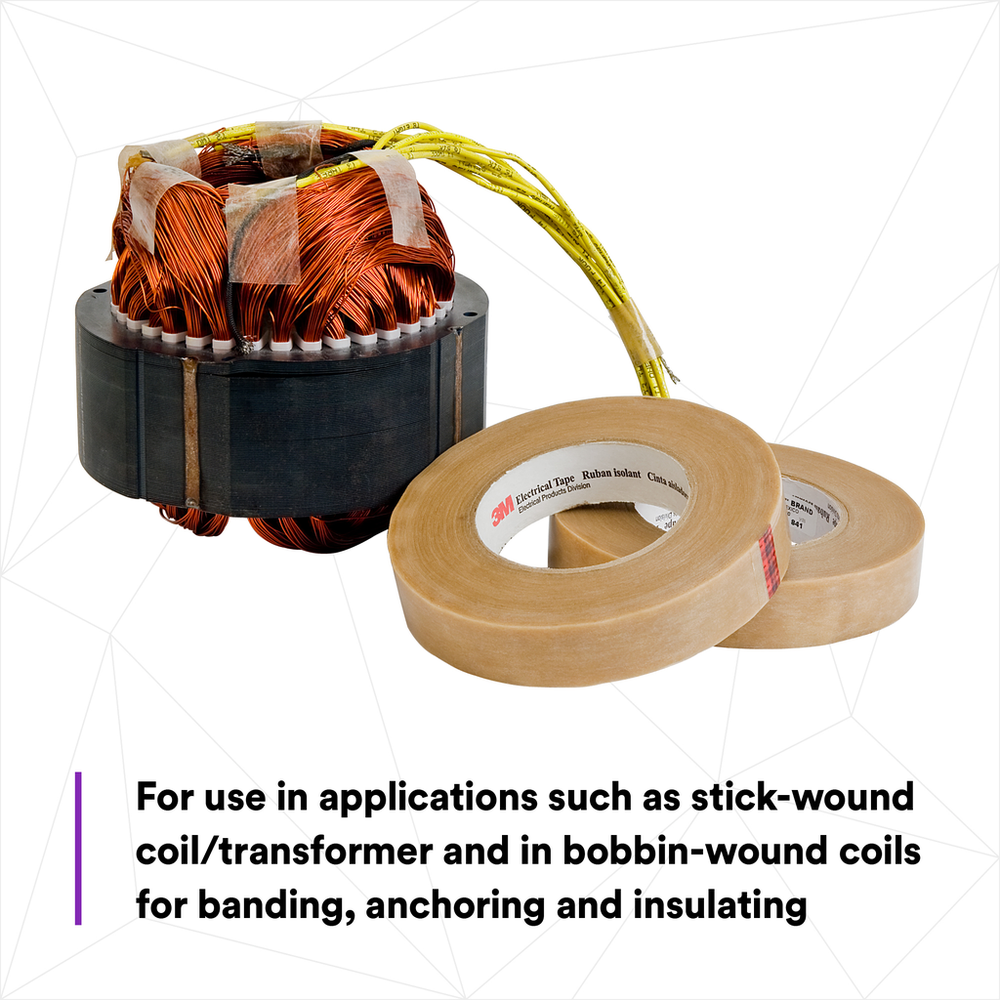

  • Ideal for economical, general-purpose insulation, anchoring and banding in motors and transformers
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Backing (Carrier) Thickness (Metric)0.089
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)90.0
Minimum Operating Temperature (Celsius)0.0
Overall Width (Imperial)23.5
Product MarketsElectrical Equipment Manufacturing
Specifications MetCSA Certified, RoHS 2011/65/EU, UL 510, UL Listed, UL Recognized
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) MaterialComposite
Overall Width (Metric) UOMmm
Insulation Resistance> 10^6 megohms
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit)32.0
Maximum Operating Temperature (Fahrenheit)266.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Dielectric Strength5500.0
Overall Length (Metric)82.296
ApplicationInsulation
Backing (Carrier) Thickness (Metric) UOMmm
Elongation at Break50
Overall Length (Imperial) UOMyd
Overall Width (Metric)596.9
Adhesive TypeThermosetting Rubber
Electrolytic Corrosion Factor1.0
Overall Length (Metric) UOMm
Maximum Operating Temperature (Celsius)130.0
Dielectric Strength UOMV
Shelf Life UOMYear
Overall Width (Imperial) UOMin
