3M Products & Supplies

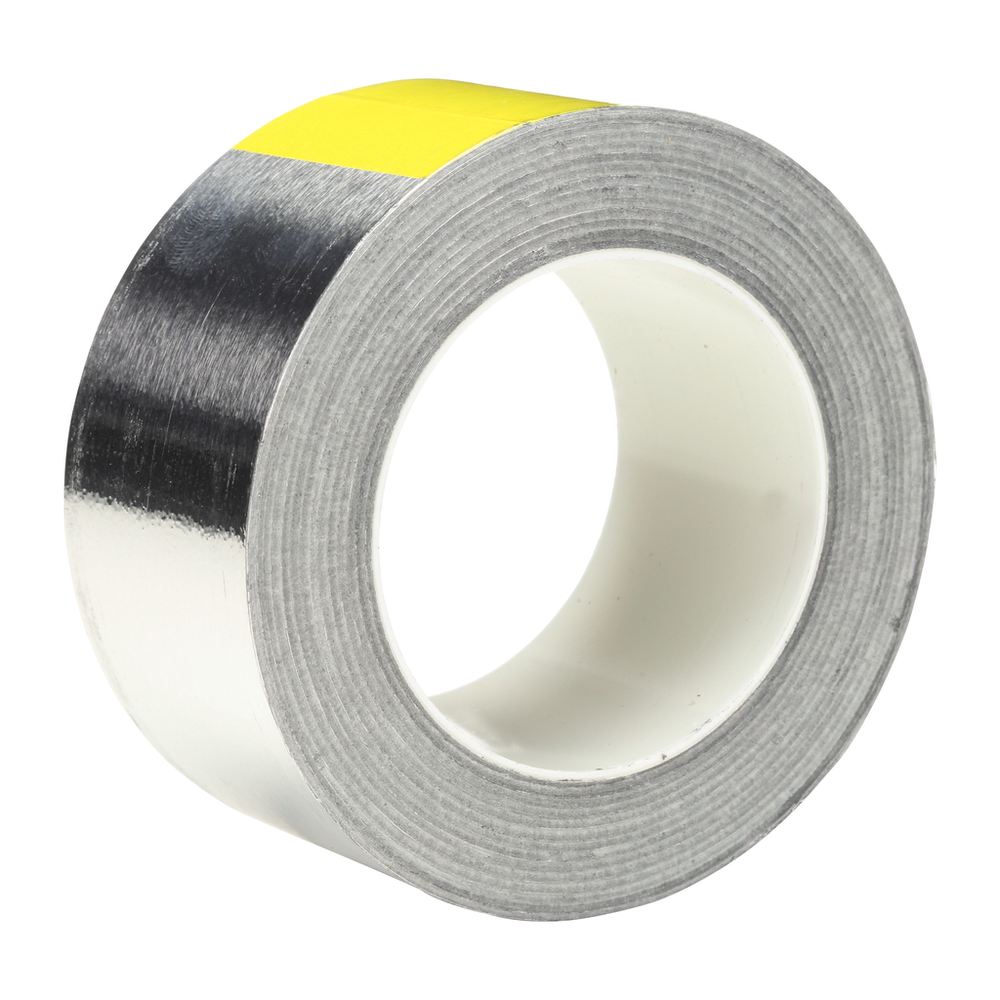

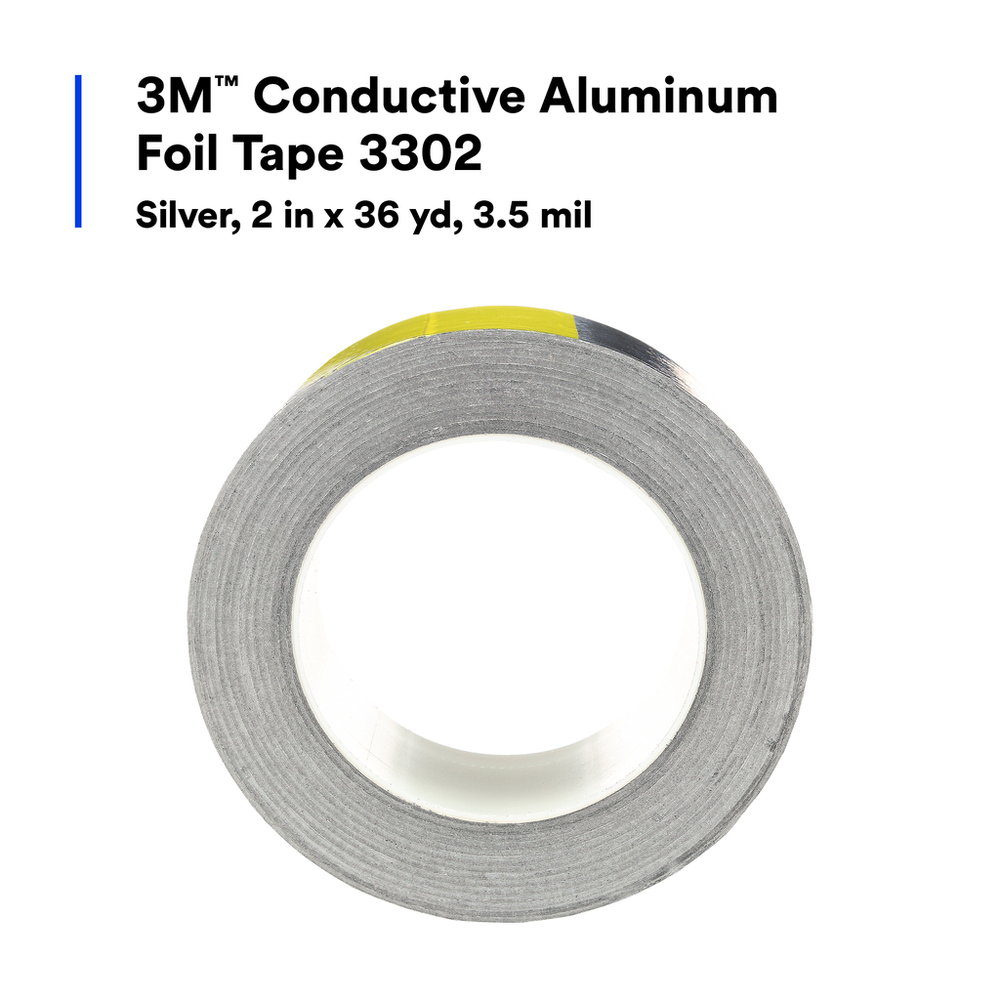

3M™ Conductive Aluminum Foil Tape 3302, Silver, 2 in x 36 yd, 3.5 mil, 24 Rolls/Case - 7100067294

Sold As: 24-Pack
SKU: 7100067294
MPN: 7100067294
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051125658225
3M ID: 70000229370
5 Digit UPC: 65822
$2,670.68 ($111.28 / Count)
Hurry up! Current stock:

Product Description

3M™ Conductive Aluminum Foil Tape 3302 is a high-strength, dead soft aluminum foil coated tape that's perfect for printed circuit manufacture and repair, shielding applications in the electronics industry and low-level EMI and RFI shielding applications. This dead soft aluminum foil-backed tape features a conductive acrylic adhesive that bonds well to many materials, including those with difficult textures. It is malleable and can conform to irregular surfaces, and it has good "wetting out" capabilities to all textured surfaces. This durable, UL510 listed tape is resistant to flame, moisture, weather, UV degradation, and chemicals. It is ideal for heating and cooling efficiency and helps reflect heat and light. A wide temperature range (from -40 °F/-40 °C to 250 °F/121 °C) allows this tape to be used in a variety of low and high-temperature applications. For all weather electronic shielding needs, use 3M™ Conductive Aluminum Foil Tape 3302.

Features

  • Bonds extremely well to low surface energy materials and difficult textured surfaces
  • Acrylic adhesive features good "wetting out" capabilities to all surfaces
  • High strength aluminum foil backing is durable and malleable to conform to uneven or irregular surfaces
  • Performs continuously over an extremely wide temperature range from 0°F/-18°C to 225°F/107°C
  • Aluminum foil backing works well for EMI/RFI shielding applications
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Length (Imperial) UOMyd
Backing (Carrier) Thickness (Metric)0.05
Total Tape Thickness without Liner (Metric)0.09
Tensile Strength (Imperial)19.0
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius)-18.0
Back Side Adhesive Thickness (Metric)0.05
Backing (Carrier) Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)225.0
Overall Length (Metric)32.91
Elongation at Break3
Minimum Operating Temperature (Fahrenheit)0.0
Adhesive TypeConductive Acrylic
Tensile Strength (Metric) UOMN/100mm
Total Tape Thickness without Liner (Imperial)3.5
Maximum Operating Temperature (Celsius)107.0
Tensile Strength (Imperial) UOMlb/in
Product ColorSilver
Specifications MetUL 510
Back Side Adhesive Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)2.0
Primary LinerGlassine Paper
Overall Length (Imperial)36.0
Backing MaterialAluminum Foil
Tensile Strength (Metric)33.3
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Imperial) UOMmil
Units per Case24.0
Overall Length (Metric) UOMm
Overall Width (Metric) UOMmm
Minimum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Metric) UOMmm
IndustriesAerospace, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Overall Width (Metric)50.8
Backing (Carrier) Thickness (Imperial)2.0
