3M Products & Supplies

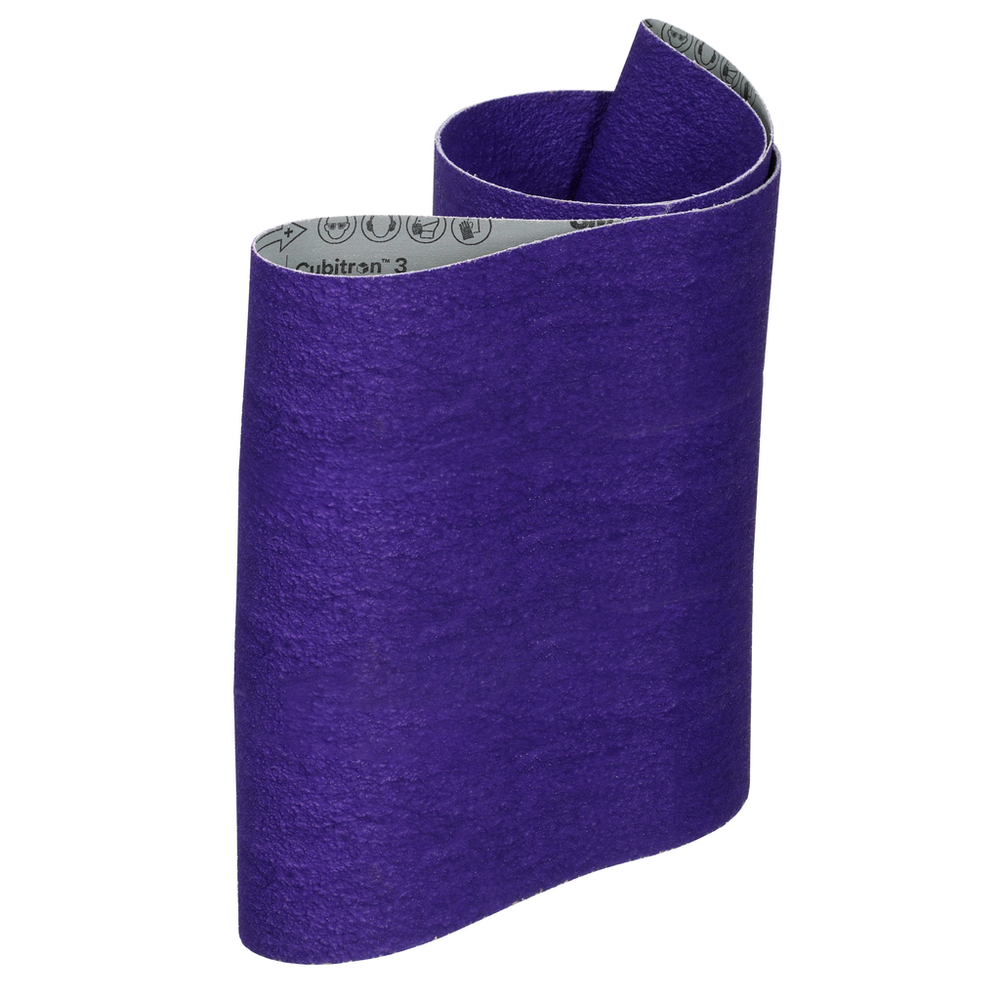

3M™ Cubitron™ 3 Cloth Belt 1184F, 36+ YF-weight, 52 in x 126 in, Film-lok, Full-flex - 7100379525

SKU: 7100379525
MPN: 7100379525
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060554128
3M ID: UU013768443
$1,778.33
Hurry up! Current stock:

Product Description

Introducing the 3M™ Cubitron™ 3 Cloth Belt 1184F, featuring a re-engineered 3M Precision-Shaped Grain. Designed to give you the performance boost you need. The 36+ grit option delivers up to 86% faster cut rate compared to crushed ceramic competitors - providing the ultimate in performance. Available in 36+ grit for medium and high-pressure applications like gate grinding and other heavy grinding, and 60+ and 80+ grit for medium pressure applications.

Features

  • 3M RE-ENGINEERED PRECISION-SHAPED GRAIN: Helps increase cut rate and abrasive life to boost productivity
  • LONGER LIFE: Fewer changeouts needed and less downtime
  • COOL CUTTING: Designed to run cooler and reduce metal discoloration and other heat-related outcomes
  • OPERATOR COMFORT PRIORITIZED: Cuts with less pressure, helping reduce the demands on operators
  • OPTIMIZED FOR ROBOTICS: Built for manual and automated applications designed for faster performance
Spec Sheet



Downloads

Specifications

IndustriesCastings and Forging, Metalworking
Overall Width (Metric)1320.8
Backing MaterialPolyester Cloth
Product FormBelt
Abrasive MaterialPrecision Shaped Ceramic
Overall Width (Imperial)52.0
Equipment - MachinesBackstand
Overall Length (Imperial) UOMin
Grit36+
Number of Vacuum Holes-12345.0
Splice TypeFilm-lok
Mesh Size0.0
Wet or DryWet or Dry
Overall Length (Metric) UOMmm
Flex TypeFull-flex
Overall Width (Imperial) UOMin
Coat TypeClosed Coat
Overall Width (Metric) UOMmm
ApplicationDeburring; Finishing; Grinding; Polishing; Surface Preparation
Overall Length (Imperial)126.0
Country of OriginUnited States
Overall Length (Metric)3200.4
Backing WeightYF Weight
Maximum Speed0.0
